Request Switch Inspection

Request Switch Inspection

1) Remove trim.
- Front door: Front Door Glass Removal and Installation
- Trunk lid: Service and Repair

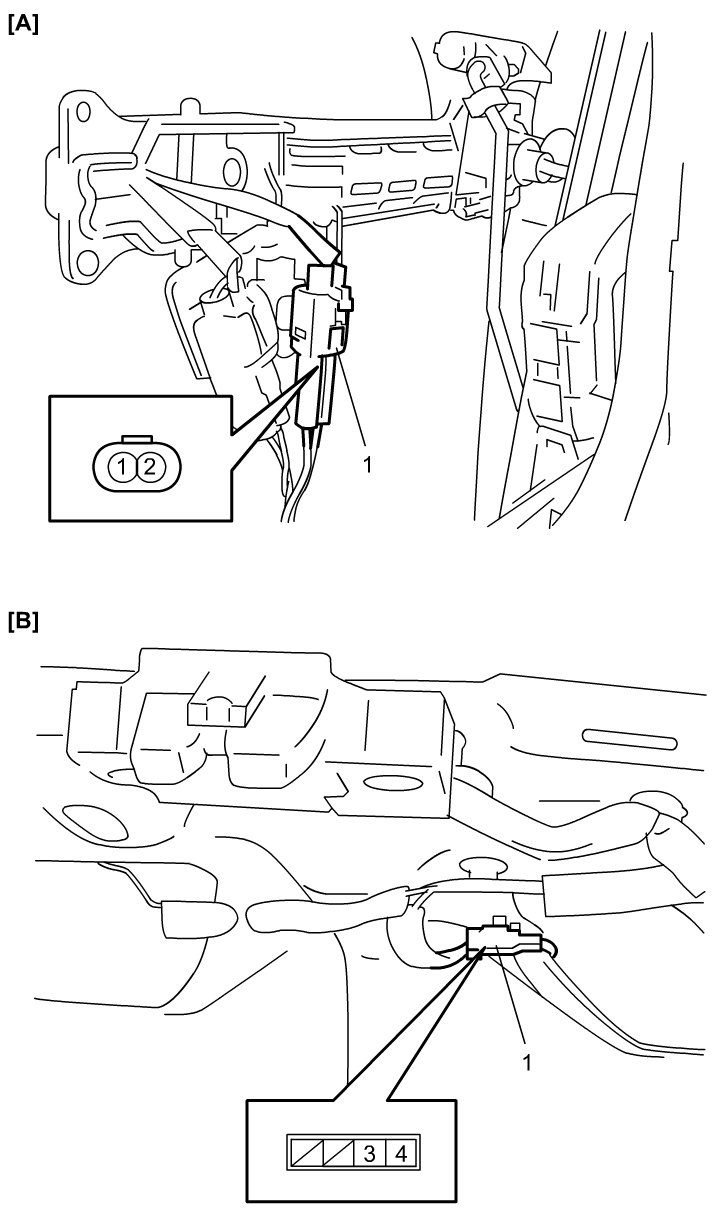

2) Disconnect request switch connector (1).

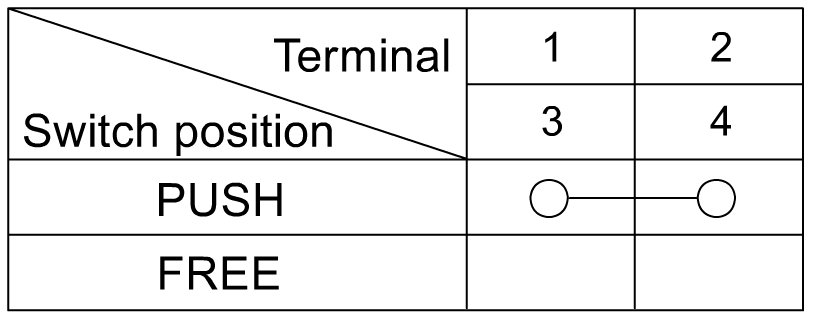

3) Check request switch for continuity between terminals at each switch position.

If check result is not as specified, replace request switch.
