Parking Assist Control Module: Service and Repair

Parking Sensor System Control Module Removal and Installation (If Equipped)

Removal

1) Remove partition trim. Service and Repair

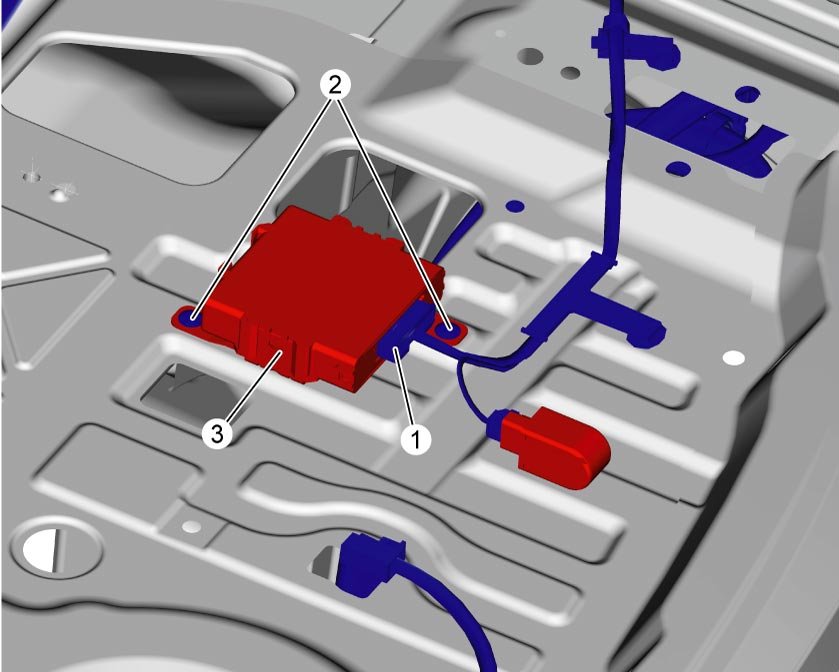

2) Disconnect parking sensor system control module connector (1) from parking sensor system control module.
3) Remove screws (2) and remove parking sensor system control module (3).






Installation

Reverse removal procedure.
