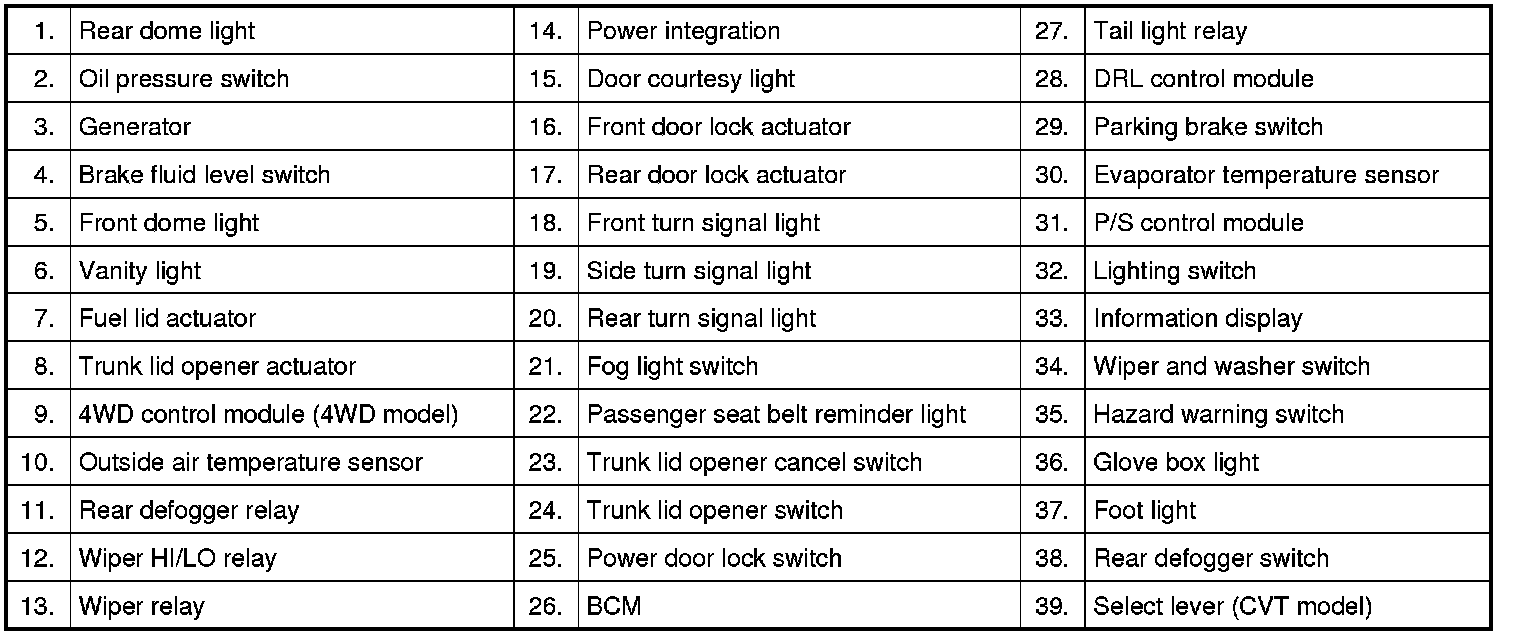

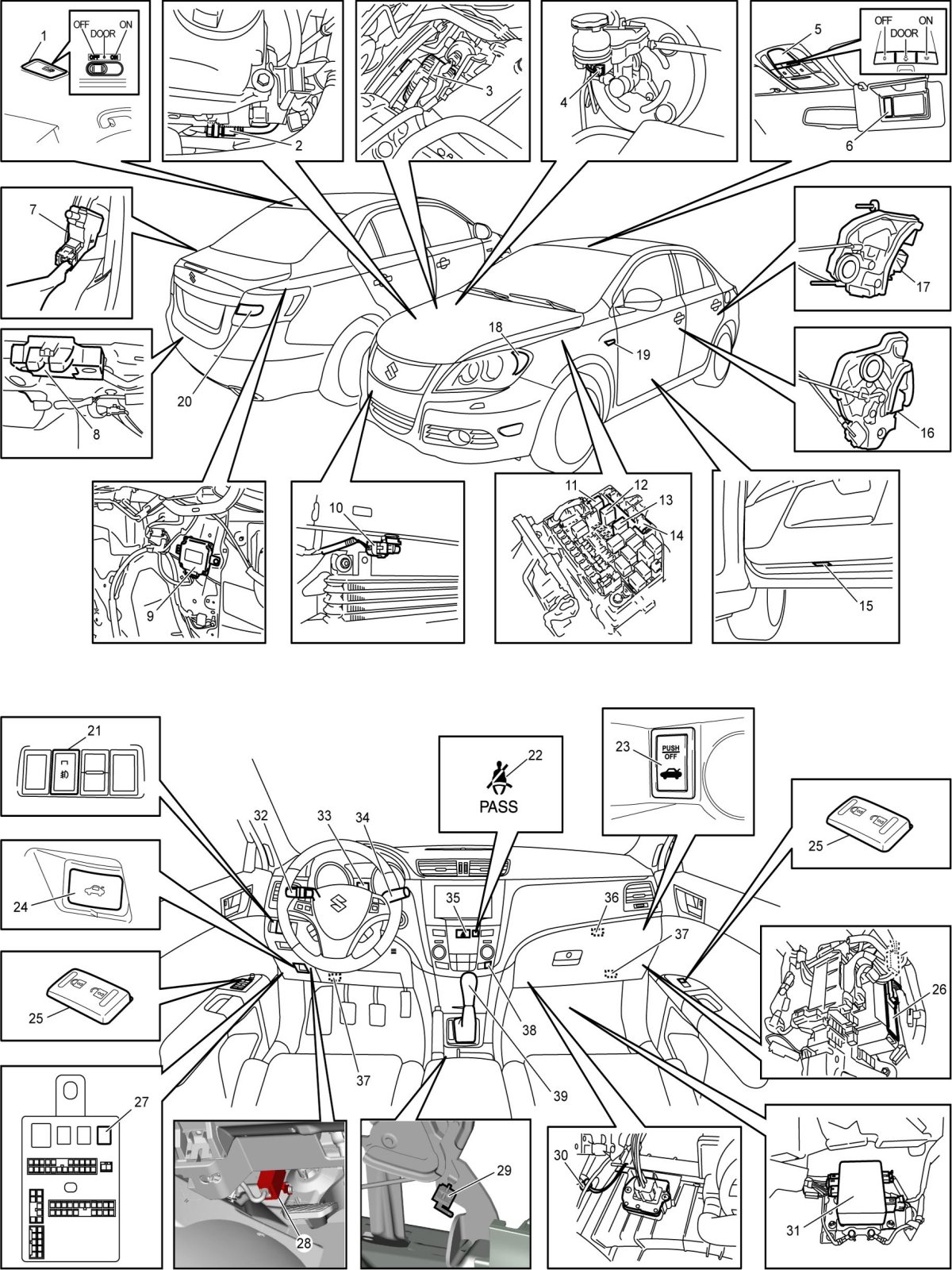

Power Door Lock and Keyless Entry System Component Location




Power Door Lock and Keyless Entry System Component Location




BCM and Related System Component Location
