Trunk Lid Request Switch Removal and Installation




Trunk Lid Request Switch Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove trunk lid trim. Service and Repair

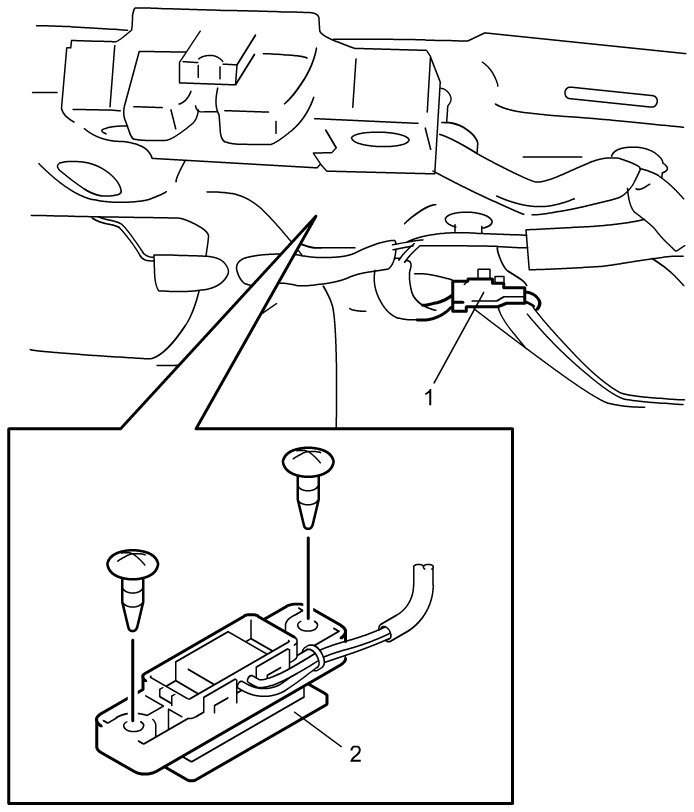

3) Disconnect trunk lid request switch connector (1) and clip.
4) Remove screws, and then remove trunk lid request switch (2).






Installation

Reverse removal procedure.
