Keyless Start Transmitter: Service and Repair

Replacement of Remote Controller Battery

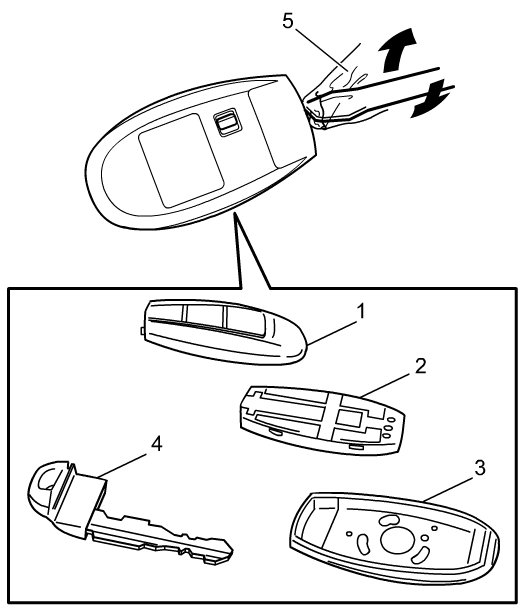

1) Remove emergency key (4).
2) Remove upper case (1) using a flat-bladed screwdriver as shown in figure.
3) Remove printed circuit board (2) from lower case (3).

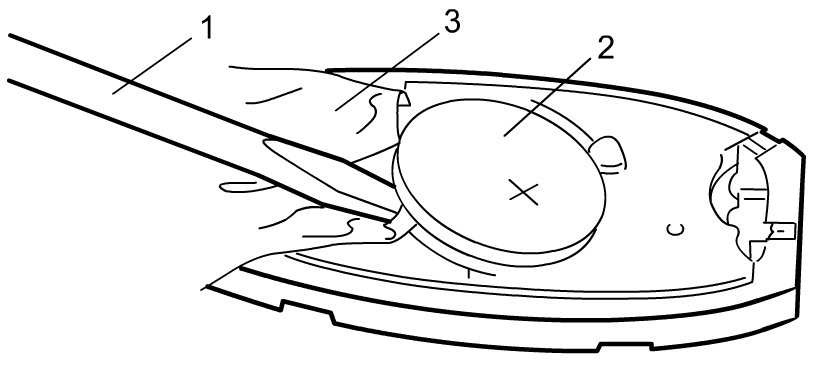

4) Remove battery (2) using a flat-bladed screwdriver (1) as shown in figure.

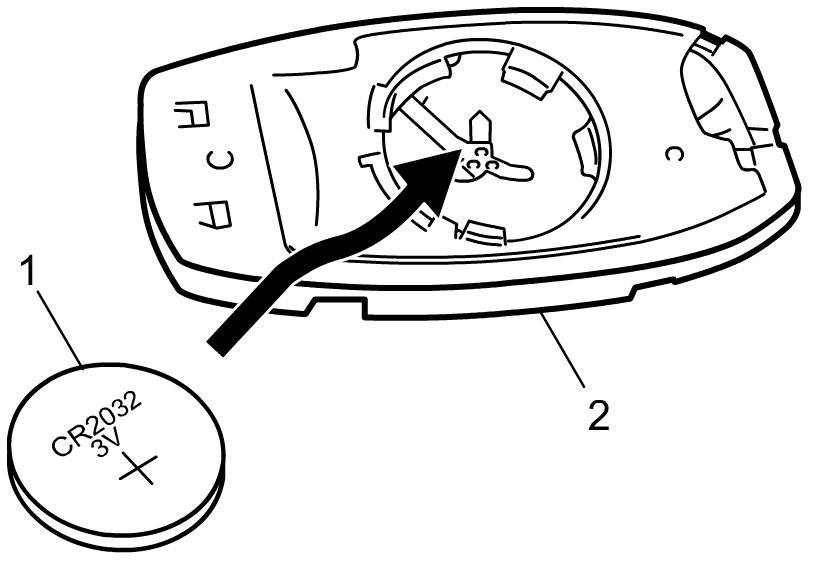

5) Place battery (lithium disc-type CR 2032 or equivalent) (1) so its "-" terminal faces "-" mark of the printed circuit board (2).





6) Install printed circuit board to lower case and then fit upper case securely.

NOTE:
Dispose of the used battery properly according to applicable rules or regulations. Do not dispose of lithium batteries with ordinary household trash.
