Keyless Start Control Module: Service and Repair

Keyless Start Control Module Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove driver side instrument panel undercover.

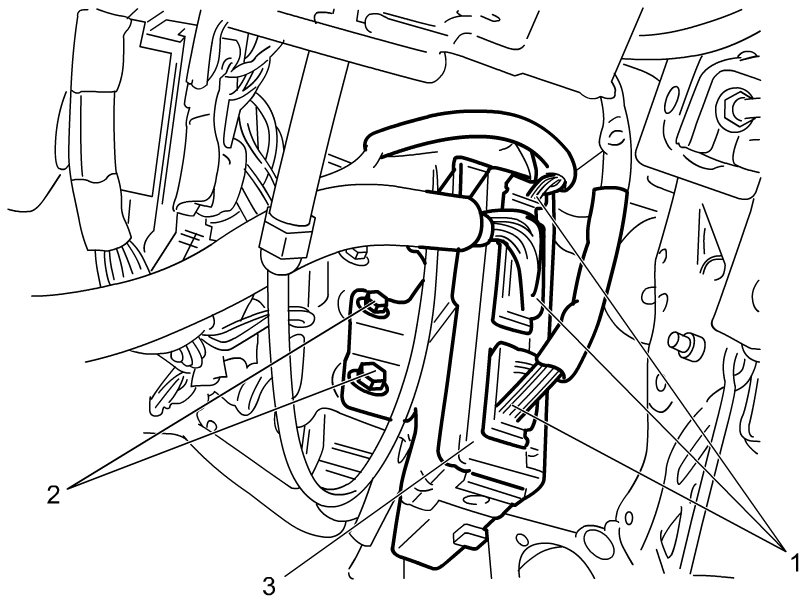

3) Disconnect keyless start control module connectors (1) and harness clamp.
4) Remove nuts (2), and then remove keyless start control module (3).






Installation

Reverse removal procedure noting the following points.

- If keyless start control module is replaced, perform "Immobilizer Key Registration" using SUZUKI scan tool. (refer to SUZUKI SDT Immobilizer Control System Operator's Manual)
