Transfer Oil Temperature Sensor Inspection




Transfer Oil Temperature Sensor Inspection

Transfer Oil Temperature Sensor Removal and Installation

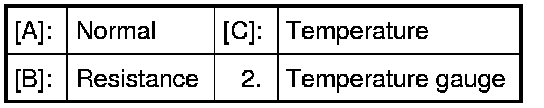

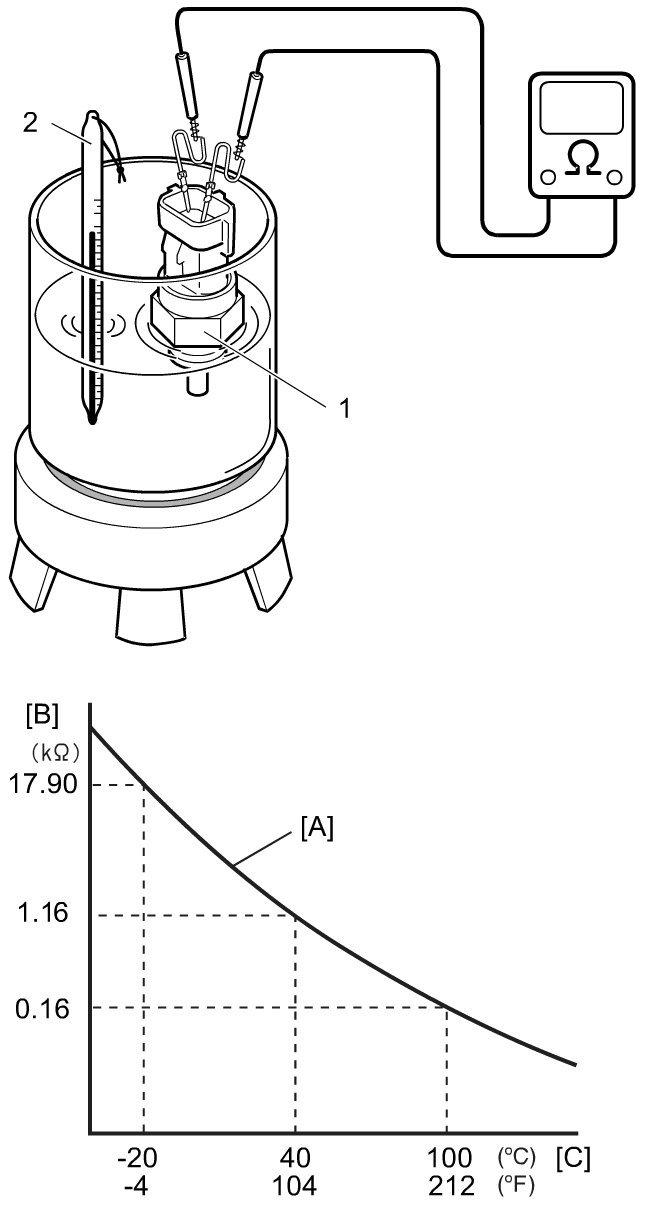

Warm coupling air temperature sensor (1), as shown in figure, and make sure resistance value decreases as temperature rises.
