Disassembly

1) Remove back up light switch. Back Up Light Switch Removal and Installation
2) Remove transaxle case bolts.

3) Remove transaxle left side case (1) from right case using special tool.
Special Tool

(A): 09912-34510





4) Remove reverse gear shift lever bolts (1) and reverse gear shift lever (2).






5) Tapping input shaft end with plastic hammer, push it out as assembly from case a little, and then remove input shaft assembly (1), countershaft assembly (2), high speed gear shift shaft (3), low speed gear shift shaft (4), 5th and 6th gear shift shaft (5), reverse gear shift (6) and reverse gears (7).





6) Remove differential assembly from right case.

Reassembly

Right Case Disassembly and Reassembly

Left Case Disassembly and Reassembly

Input Shaft Disassembly and Reassembly

Countershaft Disassembly and Reassembly

Differential Disassembly and Reassembly

Gear Shift Shaft and Fork Inspection
1) Install differential assembly into right case.
2) Join input shaft assembly (5), countershaft assembly (4), low speed gear shift shaft (2), high speed gear shift shaft (3), 5th and 6th gear shift shaft (6), reverse gear shift shaft (7) and reverse gears (8) all together, then install them into right case (1) so as not to damage oil seal by input shaft spline.

NOTE:
- Input shaft right bearing on shaft can be installed into right case (1) by tapping shaft with plastic hammer.
- Make sure that countershaft is engaged with final gear while installing.





3) Select input shaft shim and reverse gear shim as follows.
a) Measure depth "a" of left case (1) and "b" of right case (2) and measure depth "e" of left case and "f" of right case.
b) Measure distance "c" of input shaft assembly (3) and measure distance "g" of reverse gear assembly (4).
c) Calculate the clearance of "d" and "h" by the following formulas.

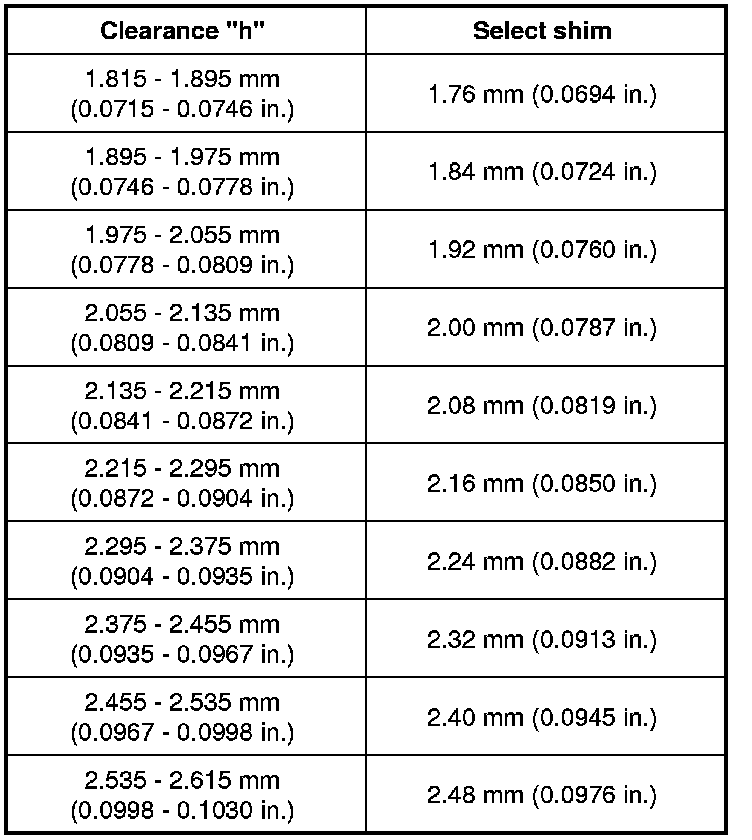

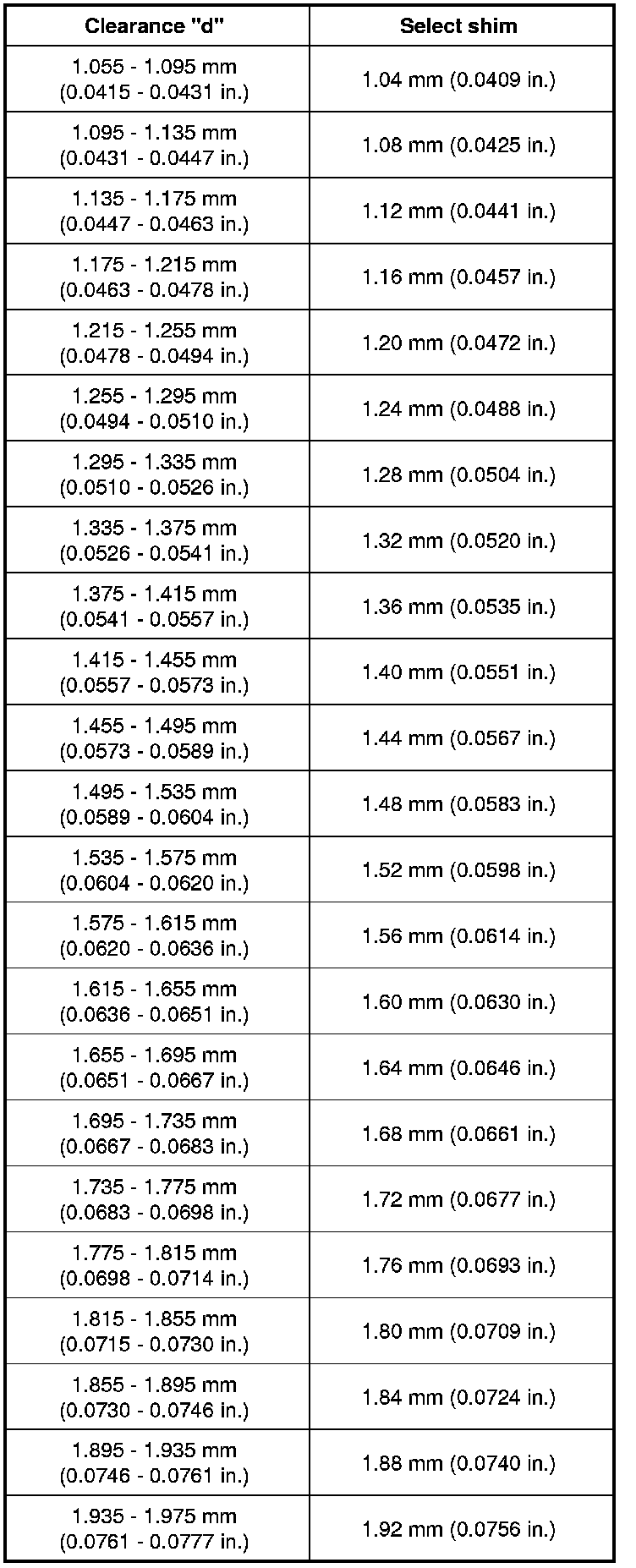

d) Select shims closest to clearance "d" and "h" from among the following available sizes.

Available shim thickness










Available shim thickness

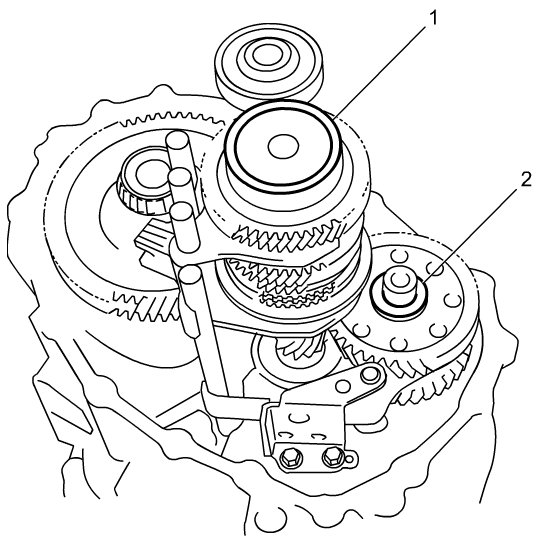

4) Install input shaft shim (1) and reverse gear shim (2).





5) Install reverse gear shift lever (1) and then tighten new reverse gear shift lever bolts (2) to specified torque.

NOTE:
The reverse gear shift lever bolts are pre-coated with adhesive. If these bolts are reused, they may work loose.

Be sure to replace the reverse gear shift lever bolts with new ones whenever they are removed.

Tightening torque
Reverse gear shift lever bolt (a): 23 Nm (2.3 kgf-m, 17.0 lbf-ft)





6) Clean mating surfaces of both right and left cases, apply sealant to right case (1) as shown in figure. Diameter of applied sealant is 1.5 mm (0.059 in.).

"A" Sealant: 99000-31260 (SUZUKI Bond No.1217G)

7) Mate it with left case (2).
8) Tighten case bolts (3) to specified torque.

Tightening torque
Transaxle case bolt (a): 23 Nm (2.3 kgf-m, 17.0 lbf-ft)





9) Install back up light switch. Back Up Light Switch Removal and Installation
