Road Test

Road Test

This test is performed to diagnose trouble conditions accurately and to check the condition after servicing. Also check for shift shock or abnormal noise.

WARNING:

If you do not select a suitable route and take proper precautions when performing a road test, an accident can occur.

- Select a level road with no traffic to minimize the risk of accident.
- Perform the test extremely carefully.
- Perform the road test using 2 persons, a driver and an assistant.

1) Connect scan tool to DLC.
2) Select "Data list" mode on scan tool.
3) Drive vehicle so that CVT fluid temperature reaches normal operating temperature (50 - 80 °C (122 - 176 °F)). Scan Tool Testing and Procedures

NOTE:
Engine coolant temperature rises when revving engine in "P" or "N" range, but CVT fluid temperature does not rise in "P" or "N" range. Be sure to drive vehicle in order to raise CVT fluid temperature.

4) While driving in "D" range, check if gear shift and lock-up occur properly as shown in CVT Gear Shift Table.

CVT Gear Shift Table

CVT gear shift schedule is shown in the following table. Test-drive the vehicle on a flat road in the "D" range.

NOTE:

The values are for reference only.

Shift table

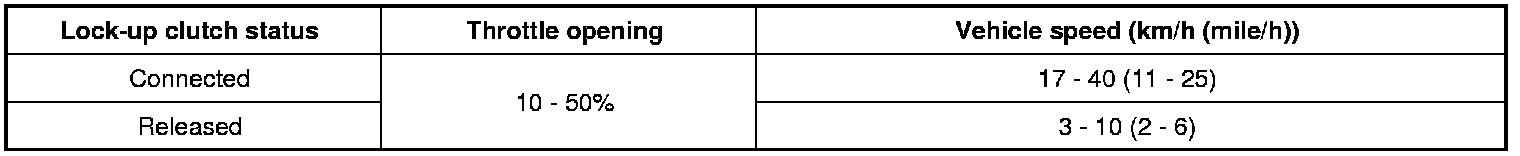

Lock-up point
