Wiper and Washer Switch Removal and Installation

Wiper and Washer Switch Removal and Installation

Removal

1) Remove steering column cover. Steering Wheel and Column Components
2) Disconnect wiper and washer switch connector.

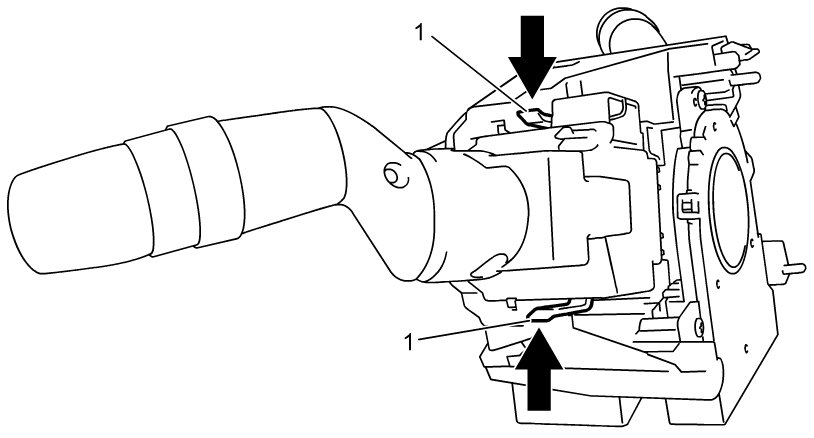

3) Remove wiper and washer switch from steering column while pushing claws (1) in directions of arrows.






Installation

Wiper and Washer Switch Inspection

Reverse removal procedure.
