Steering Angle Sensor: Testing and Inspection

Steering Angle Sensor On-Vehicle Inspection

NOTE:

Before each inspection, confirm steering angle sensor calibration is completed.

If calibration is incomplete, calibrate sensor. Programming and Relearning

1) Connect SUZUKI scan tool to DLC (1) with ignition mode of keyless push start system in "OFF".
Special Tool

(A): SUZUKI scan tool (SUZUKI-SDT)





2) Push engine switch to change ignition mode of keyless push start system to "ON" and select "DATA LIST" of SUZUKI scan tool.

Refer to scan tool operator's manual for further details.
3) Check "Steering Angle Sen" under "DATA LIST" of SUZUKI scan tool in the following steering wheel conditions.
- Front wheels in straight-ahead position
- Rotate steering wheel once clockwise from straight-ahead position
- Rotate steering wheel once counterclockwise from straight-ahead position
Replace steering angle sensor, if check result is not as specified.

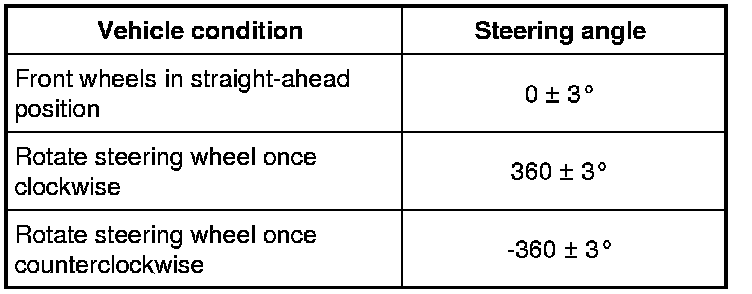

Steering angle specification
