Fog Light Switch Removal and Installation (If Equipped)




Fog Light Switch Removal and Installation (If Equipped)

Removal

1) Remove instrument panel switch bezel. Service and Repair
2) Disconnect fog light switch connector.

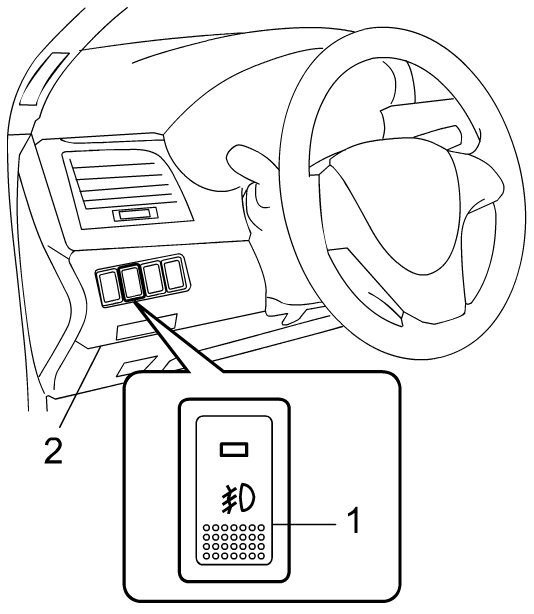

3) Remove fog light switch (1) from instrument panel switch bezel (2).






Installation

Fog Light Switch Inspection (If Equipped)

Reverse removal procedure.
