Fog Light Switch Inspection (If Equipped)




Fog Light Switch Inspection (If Equipped)

Fog Light Switch Removal and Installation (If Equipped)

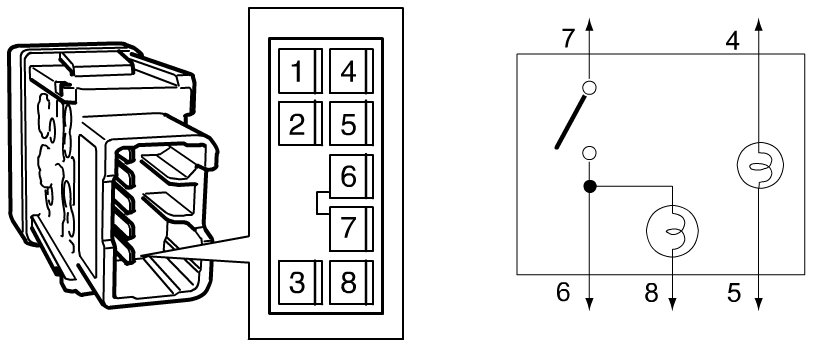

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

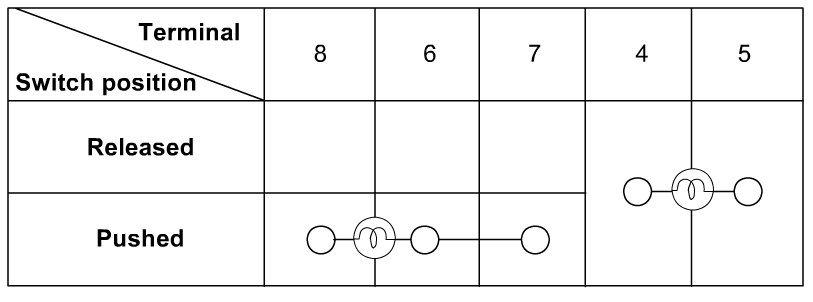

Fog light switch continuity
