Back Up Light Switch Removal and Installation

Back Up Light Switch Removal and Installation

Removal

1) Remove battery, battery tray with ECM and battery bracket. Service and Repair

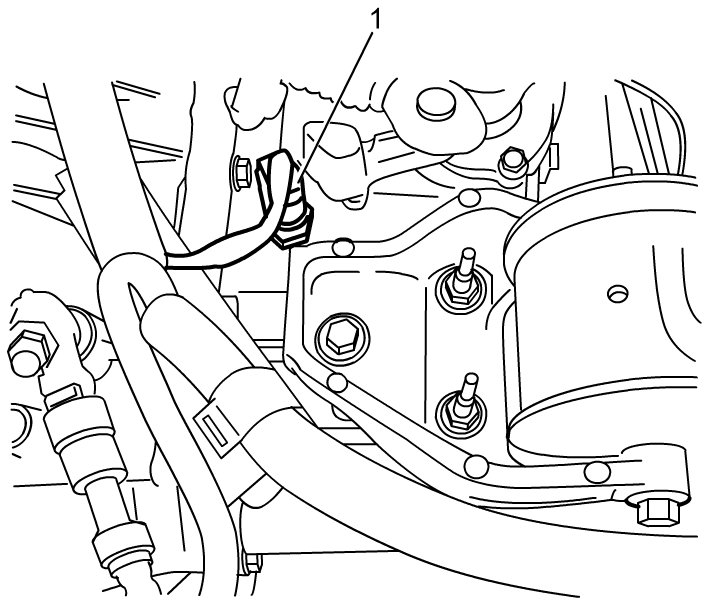

2) Disconnect back up light switch connector (1).
3) Remove back up light switch.






Installation

Back Up Light Switch Inspection
1) Apply transaxle oil to new O-ring (1) and tighten back up light switch (2) to specified torque.

Tightening torque
Back up light switch (a): 19 Nm (1.9 kgf-m, 14.0 lbf-ft)





2) Connect back up light switch connector.
3) Install battery bracket, battery tray with ECM and battery. Service and Repair
