ESP OFF Switch Removal and Installation




ESP (R) OFF Switch Removal and Installation

Removal

1) Remove instrument panel switch bezel. Overhaul
2) Disconnect ESP (R) OFF and parking sensor OFF switch connector.

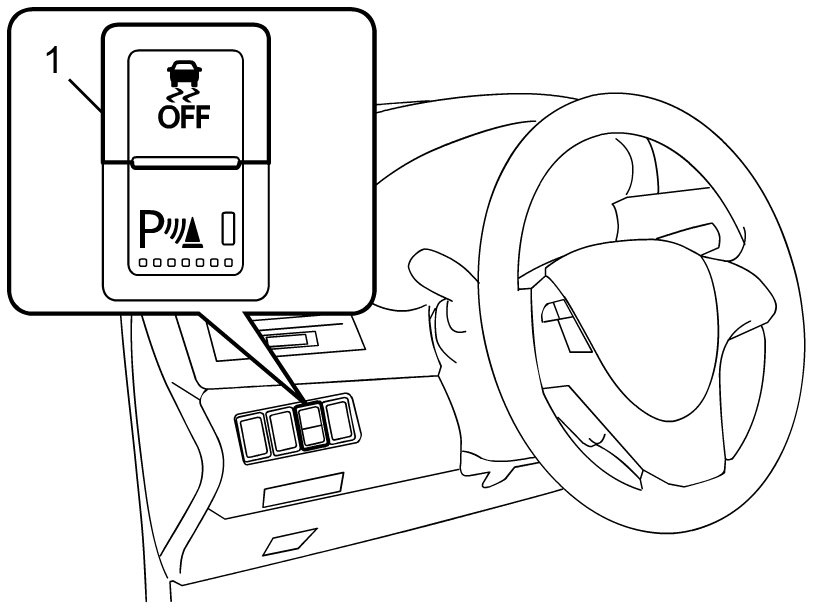

3) Remove ESP (R) OFF and parking sensor OFF switch (1) from instrument panel switch bezel.






Installation

ESP (R) OFF Switch Inspection

Reverse removal procedure.
