ESP (R) OFF Switch Inspection

ESP (R) OFF Switch Removal and Installation

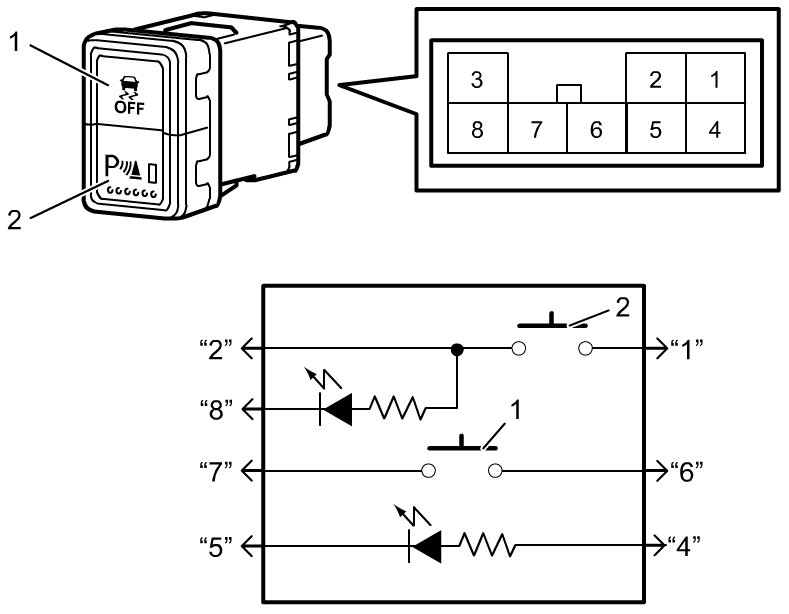

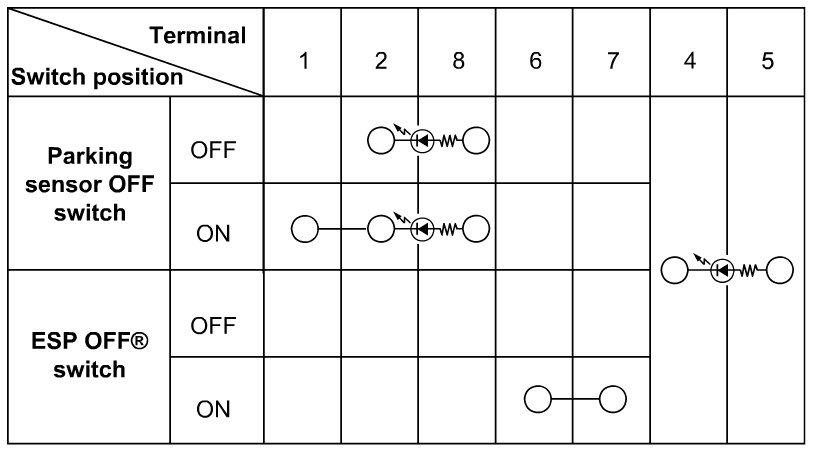

Check ESP (R) OFF & parking sensor OFF switch for continuity between terminals at each switch position.

If check result is not as specified, replace ESP (R) OFF and parking sensor OFF switch.

NOTE:

Select diode test and capacitance measurements position and measure connection when measuring between terminal 2 - 8 or 4 - 5.
