Removal and Installation




Trunk Lid Opener Switch Removal and Installation

Removal

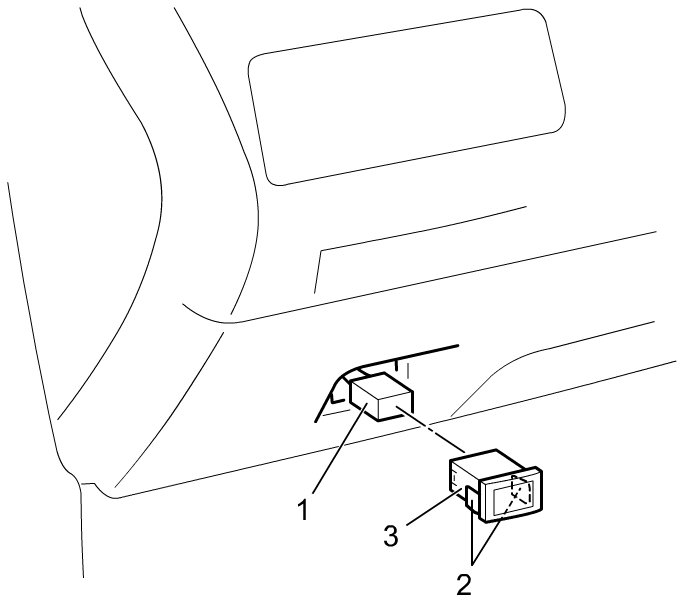

1) Disconnect trunk lid opener switch connector (1).
2) Squeeze claws (2) and remove trunk lid opener switch (3).






Installation

Reverse removal procedure.
