Removal and Installation




Trunk Lid Opener Cancel Switch Removal and Installation

Removal

1) Open glove box.

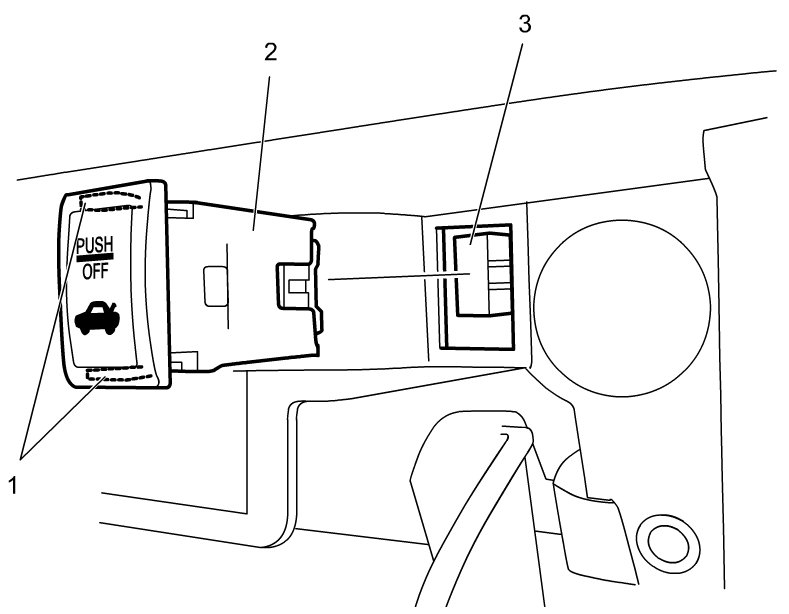

2) Retract claws (1) and remove trunk lid opener cancel switch (2).
3) Disconnect trunk lid opener cancel switch connector (3).






Installation

Reverse removal procedure.
