Front and Rear Door Switch Inspection

Front and Rear Door Switch Inspection

1) Remove door switch.

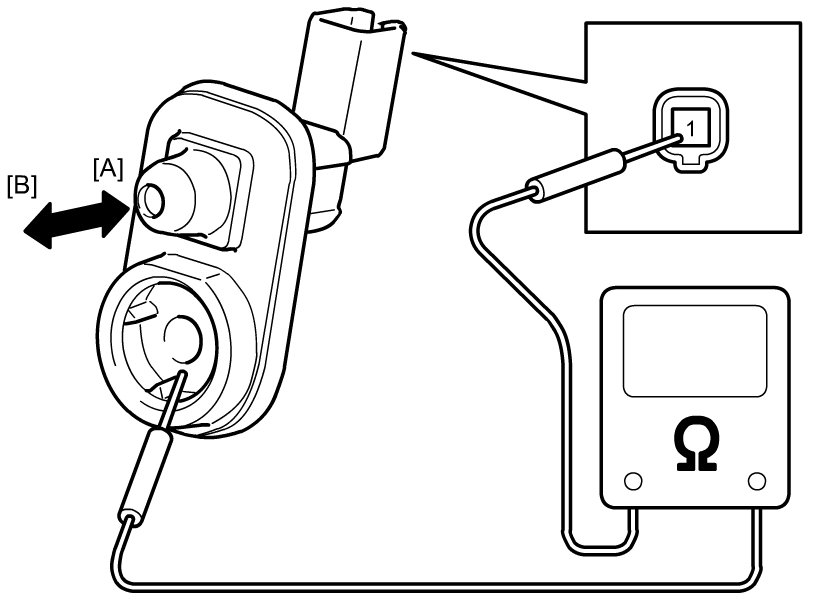

2) Check continuity between switch body and terminal at each switch position. If check result is not as specified, replace switch.

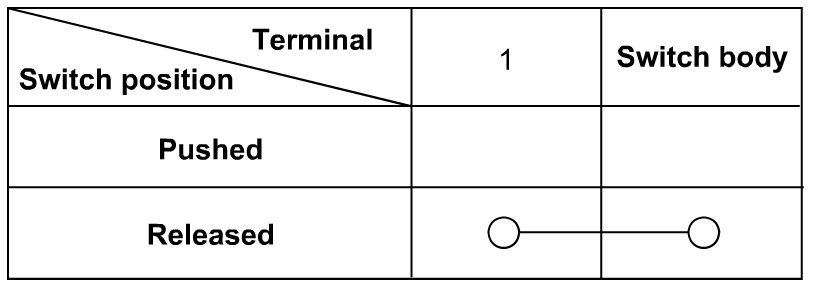

Front and Rear door switch continuity
