Door Lock Switch and Motor On-Vehicle Inspection

Door Lock Switch and Motor On-Vehicle Inspection

1) Remove door trim.
- Front: Front Door Glass Removal and Installation
- Rear: Rear Door Glass Removal and Installation
2) Disconnect door lock connector from rear door lock assembly.
3) Check door lock switch for continuity between its terminals. Replace door lock assembly if defective.

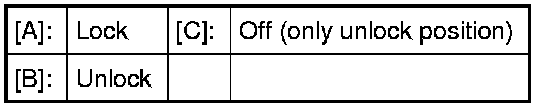

4) Check door lock motor by checking operation of door lock lever when battery voltage is applied to the following terminals of door lock assembly as shown in tables. Replace door lock assembly if defective.

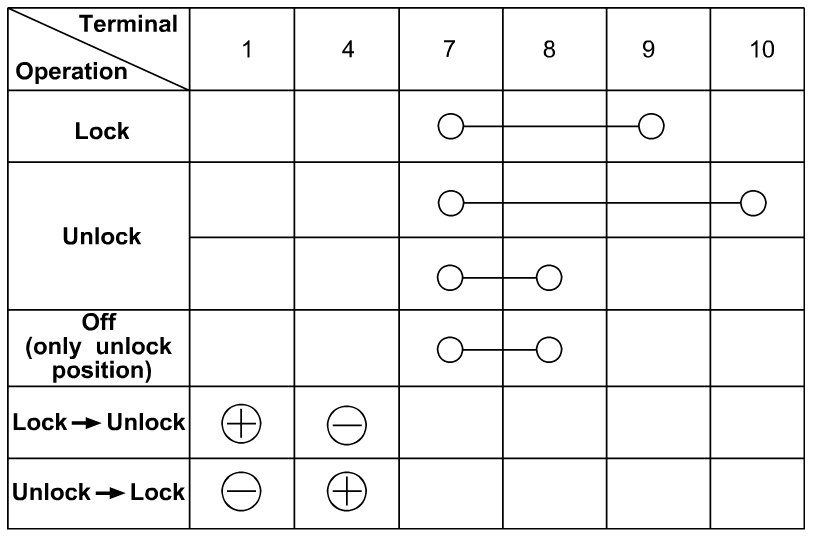

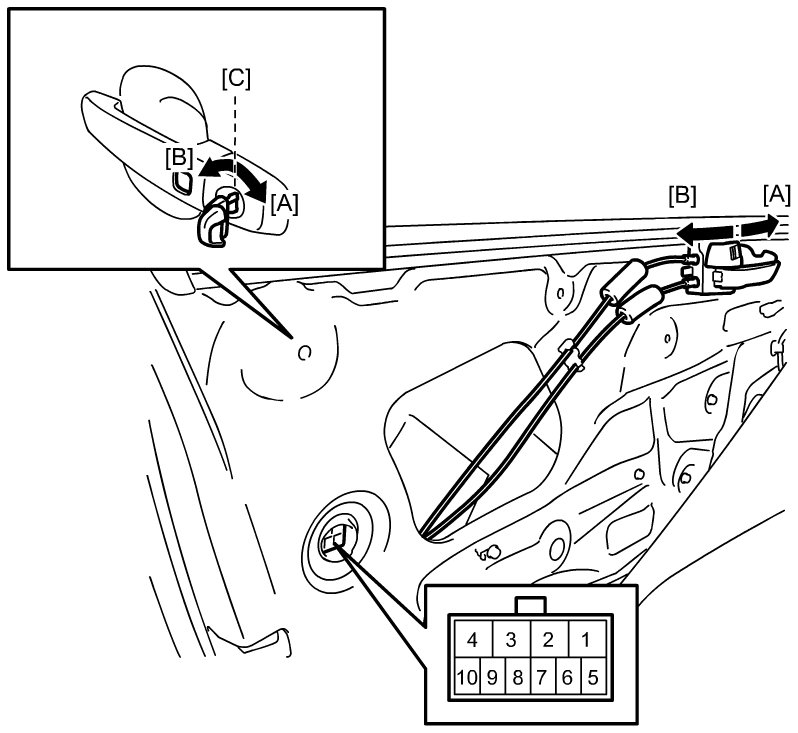

Driver Door Lock





Front door

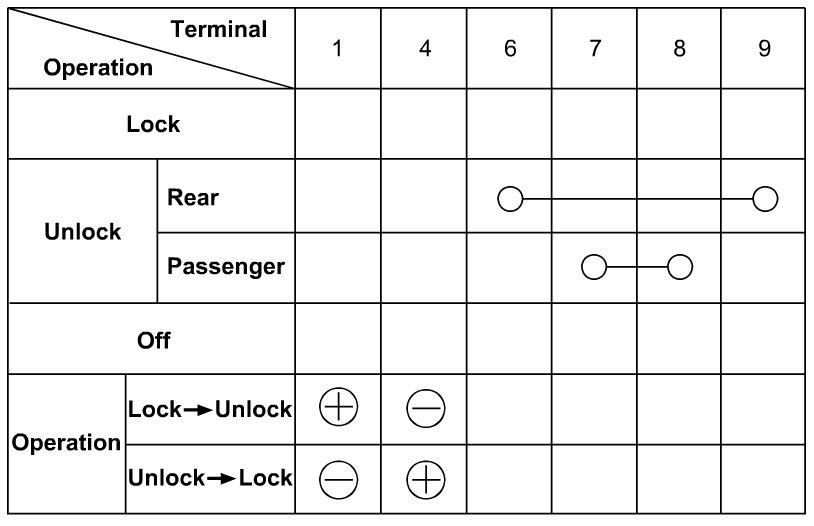

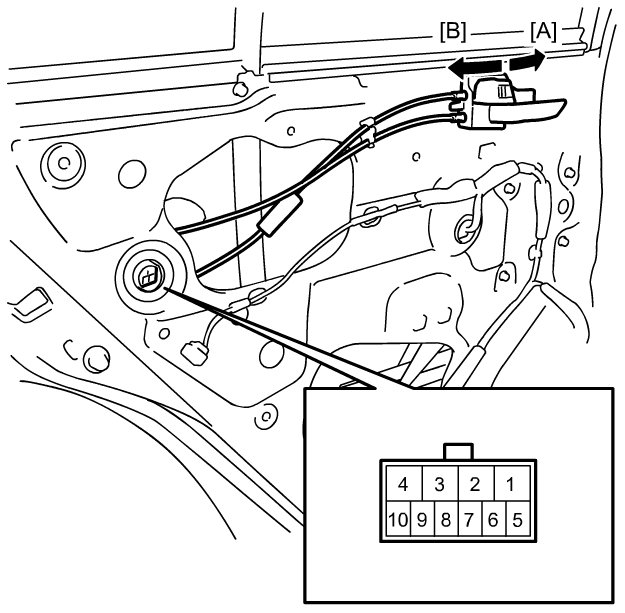

Passenger and Rear Door Lock





Rear door
