Fuel Hose Disconnecting and Reconnecting

Fuel Hose Disconnecting and Reconnecting

Connection Non-Quick Joint

NOTE:

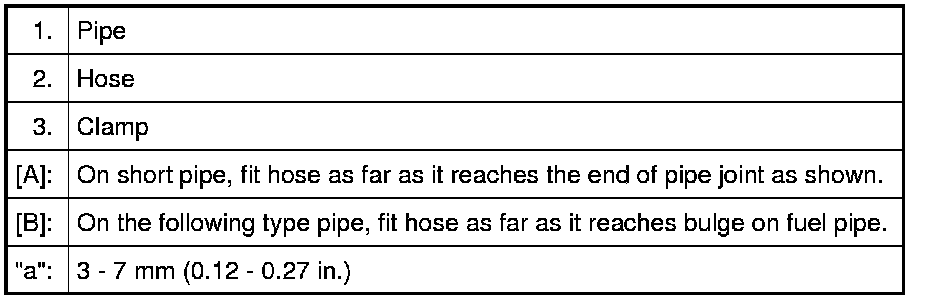

Be sure fuel hose end makes contact with bulge on fuel pipe or pipe joint end when inserting fuel hose to pipe.

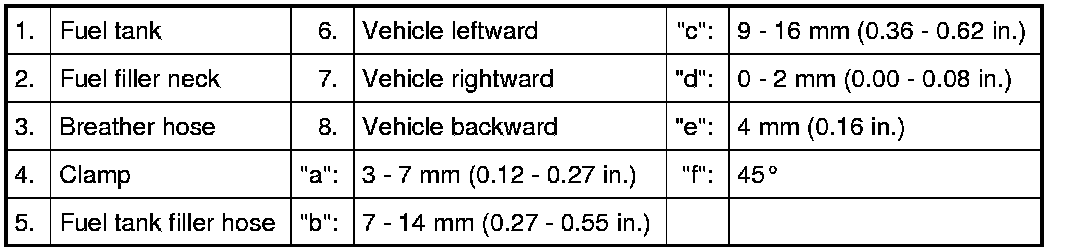

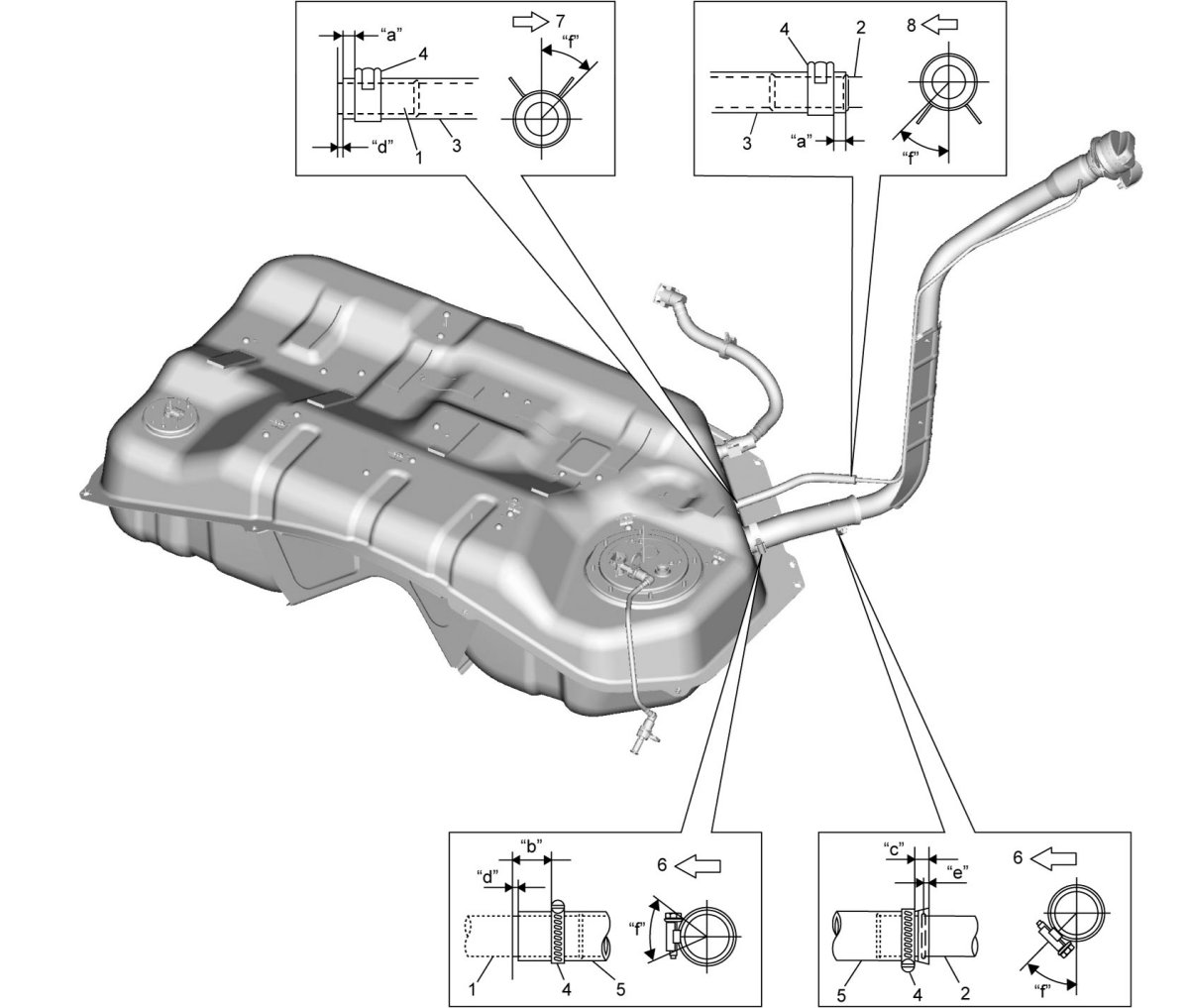

Clamp around fuel tank










Clamp other than around fuel tank










Quick Joint (Fuel Delivery Pipe Side)

Disconnecting

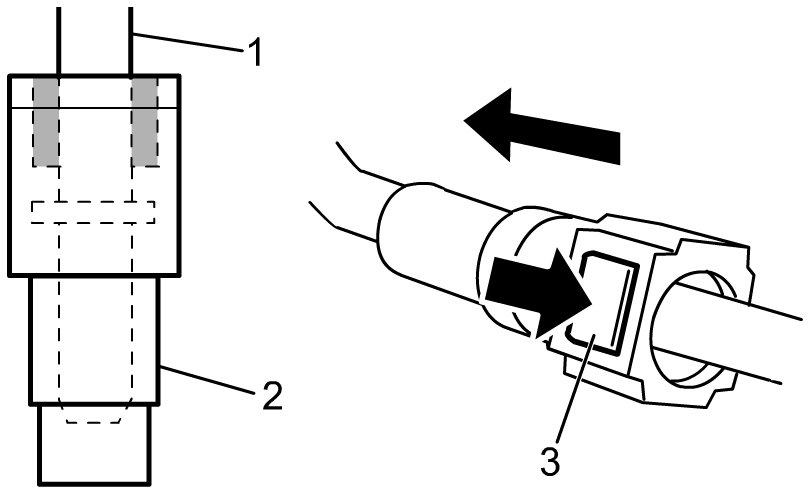

1) Remove mud, dust and/or foreign material between pipe (1) and quick joint (2) by blowing compressed air.
2) Disconnect quick joint from fuel pipe while joint lock is unlocked by pushing lock button (3) of joint.






Reconnecting

Insert quick joint to fuel pipe until they lock securely (a click is heard), and pull quick joint by hand and make sure it does not become disconnected.

Quick Joint (Fuel Pump Side)

Disconnecting

1) Remove mud, dust and/or foreign material between pipe (1) and quick joint (2) by blowing compressed air.
2) Unlock joint lock by inserting special tool between pipe and quick joint.
Special Tool

(A): 09919-47020

3) Disconnect quick joint from pipe.






Reconnecting

Insert quick joint to fuel pipe until they lock securely (a click is heard), and confirm that quick joint is not disconnected by hand.

Quick Joint (Fuel Vapor Line)

Disconnecting

1) Remove mud, dust and/or foreign material between pipe (1) and quick joint (2) by blowing compressed air.
2) Disconnect hose joint while joint lock is unlocked by pushing both sides of joint.






Reconnecting

3) Insert quick joint to fuel pipe until they lock securely (a click is heard).
4) Check that quick joint does not pull out by pulling quick joint in arrow direction.
