Fuel Level Sensor Removal and Installation

Fuel Level Sensor Removal and Installation

WARNING:

Failure to take proper precautions when removing or installing the fuel level sensor can result in fuel leaks and/or damage.

To prevent fuel leaks, be careful not to damage the fuel tube fitting section (sealed section in the bore). If it is damaged, replace the fuel pump.

NOTE:

Failure to take proper precautions when removing or installing the fuel level sensor can result in damage.

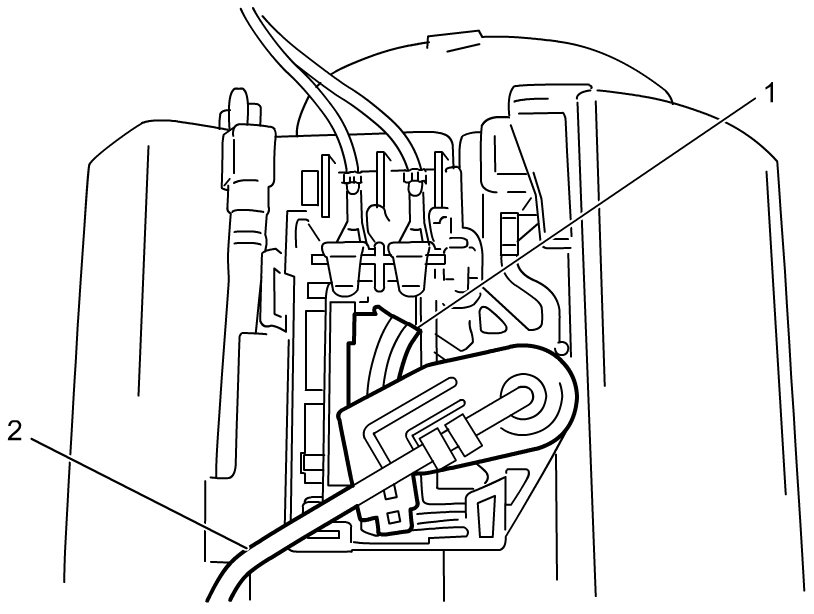

To prevent failure of the fuel level sensor, be careful not to touch the resister plate (1) or deforming the arm (2) when performing the service operations described below.





Removal

1) Remove fuel pump assembly from fuel tank. Fuel Pump Assembly Removal and Installation
2) Disconnect fuel level sensor connector (1).

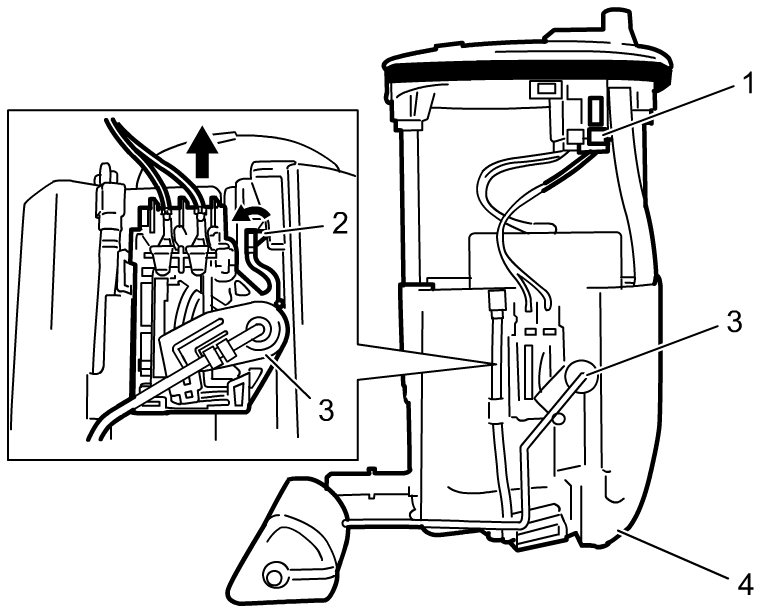

3) Release lock (2), remove fuel level sensor (3) from fuel pump (4) by sliding it in arrow direction as shown in figure.





Installation

Fuel Level Sensor Inspection

Reverse removal procedure for installation.
