Data Link Connector: Description and Operation

DLC Description

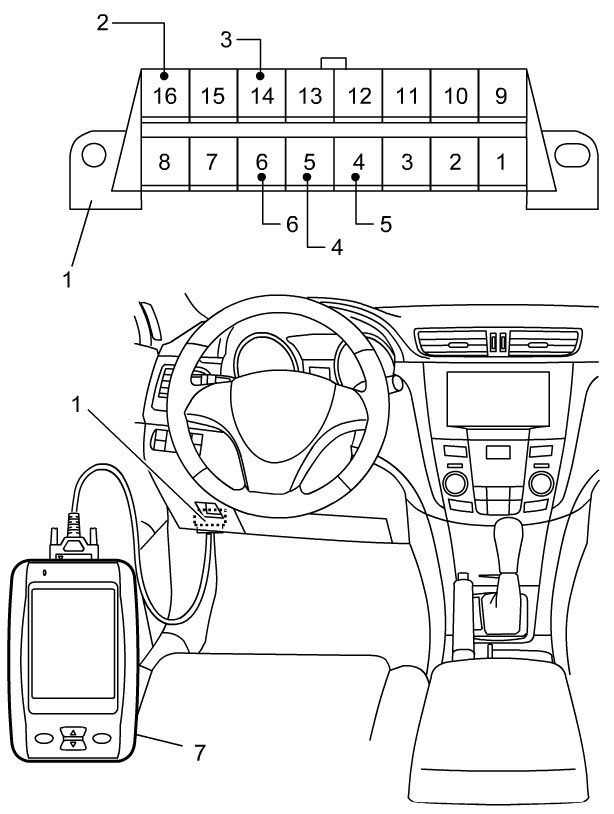

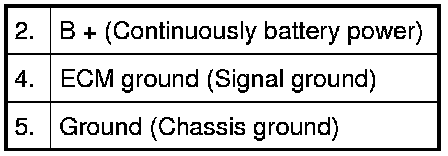

DLC (1) is in compliance with SAE J1962 in its installation position, the shape of connector and pin assignment.

OBD CAN High line (6) and Low line (3) (CAN line of ISO 15765-4) are used for SUZUKI scan tool (SUZUKI-SDT) (7) or CAN communication OBD-II generic scan tool to communicate with ECM.
