Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>

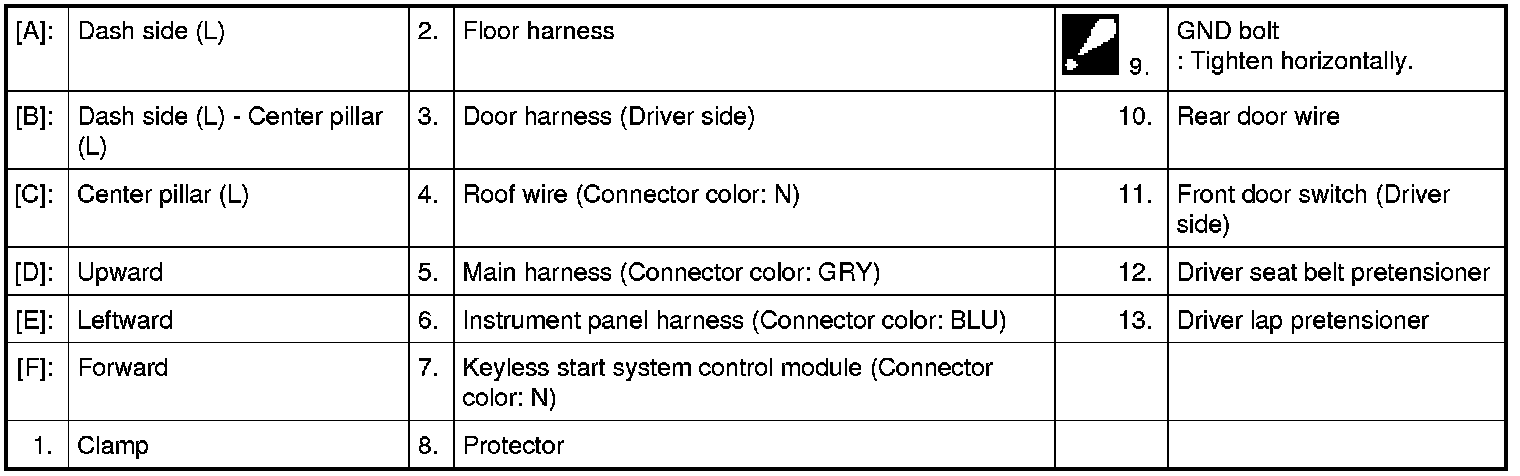

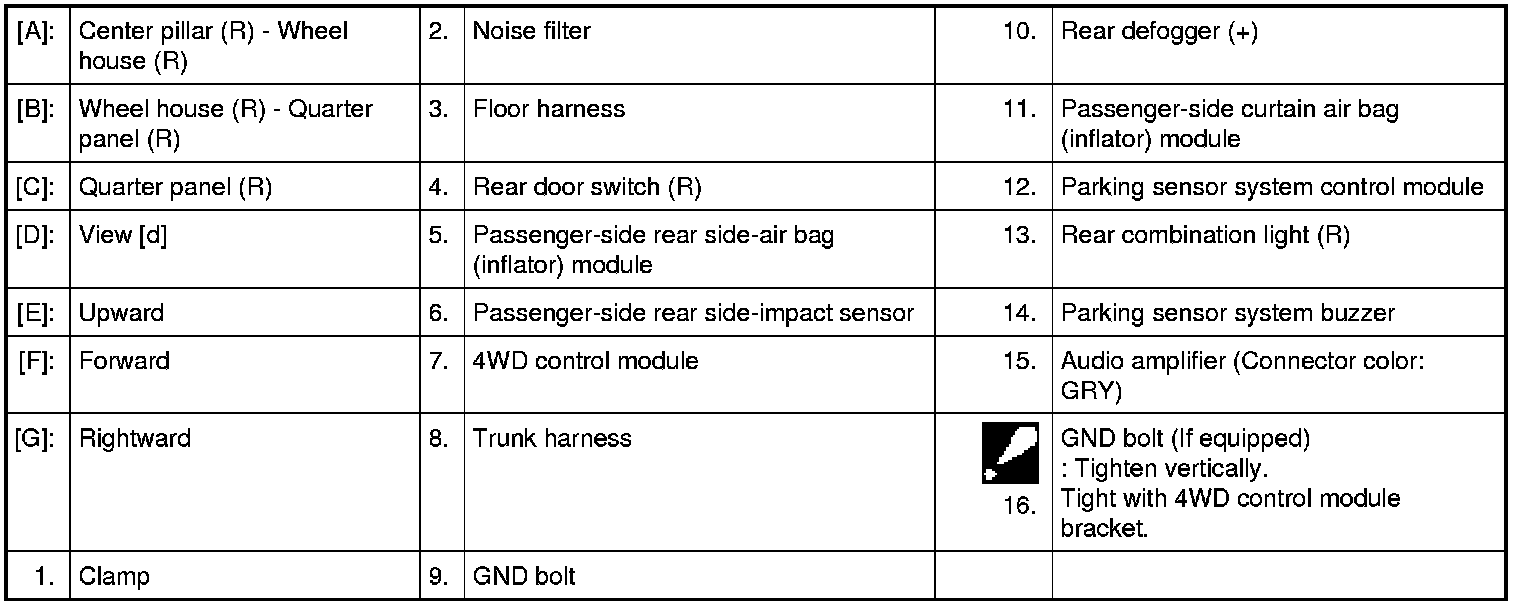

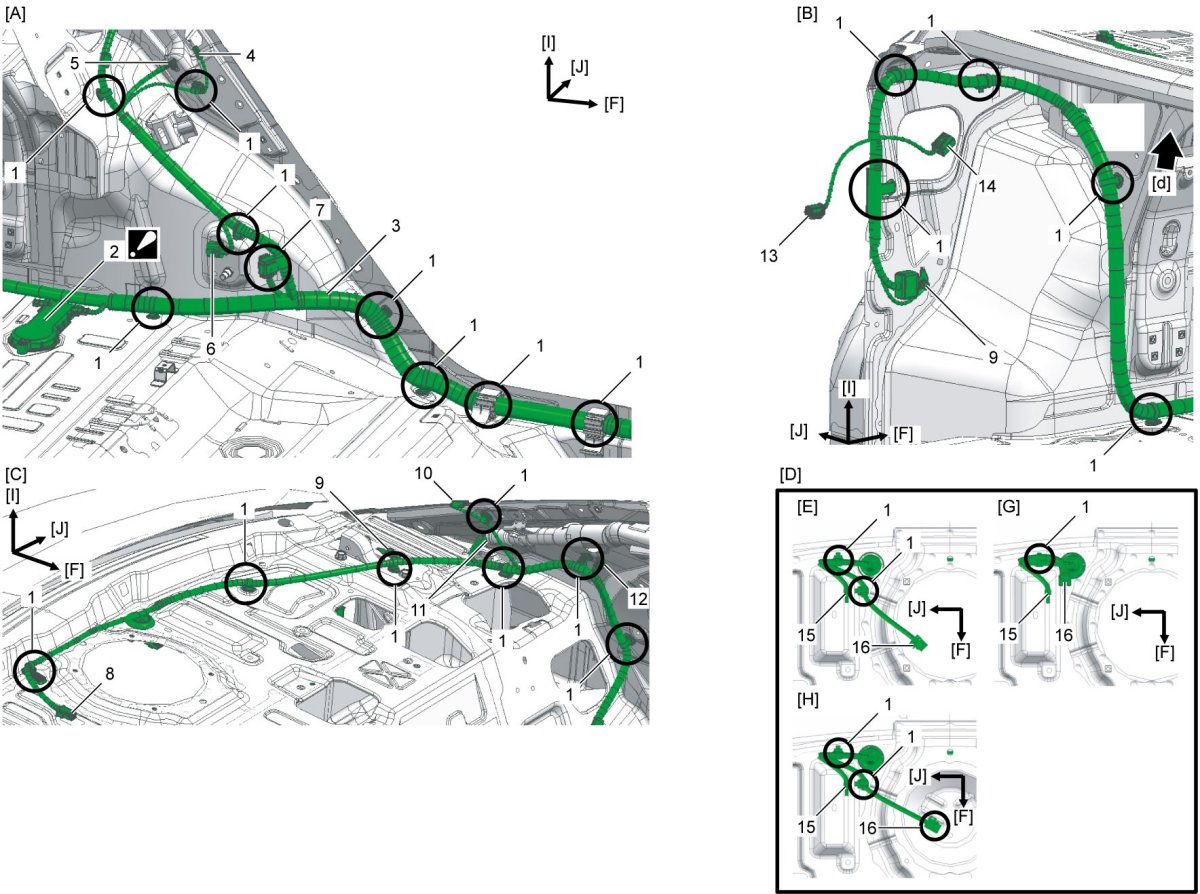

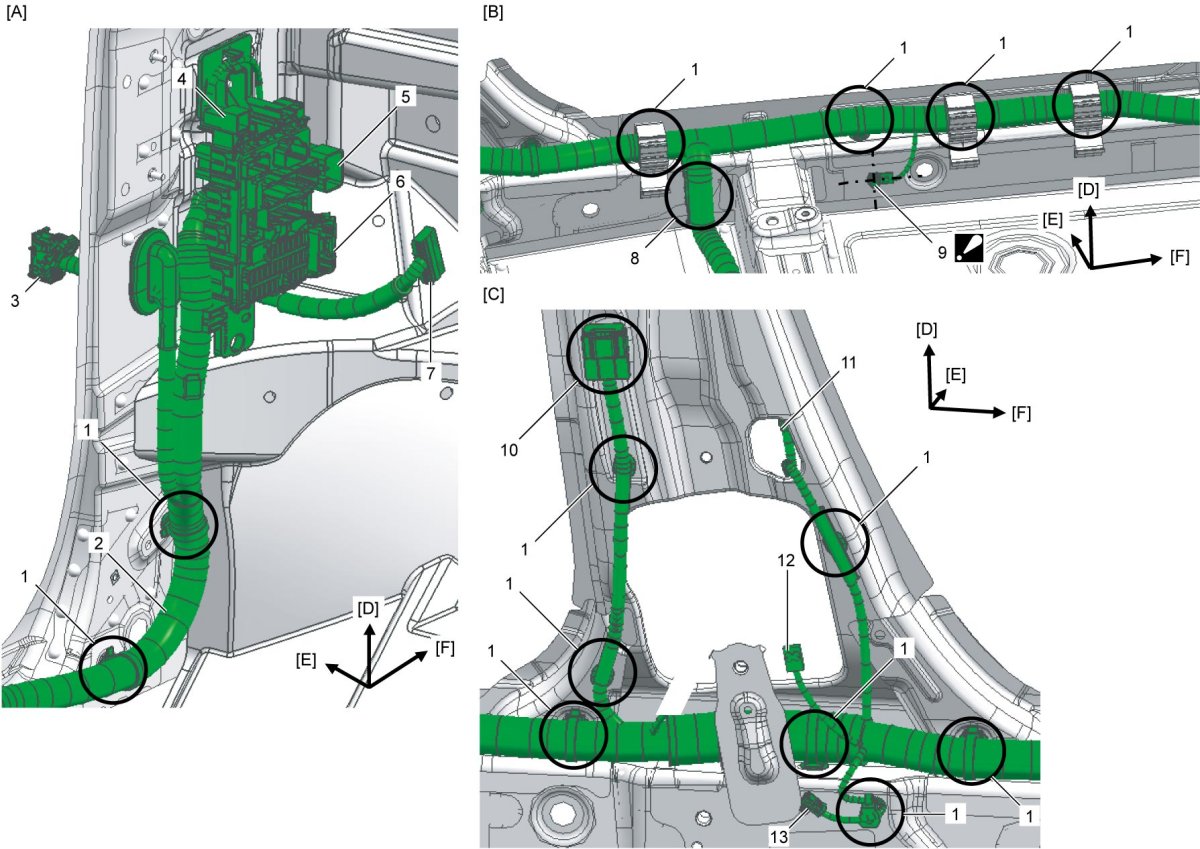

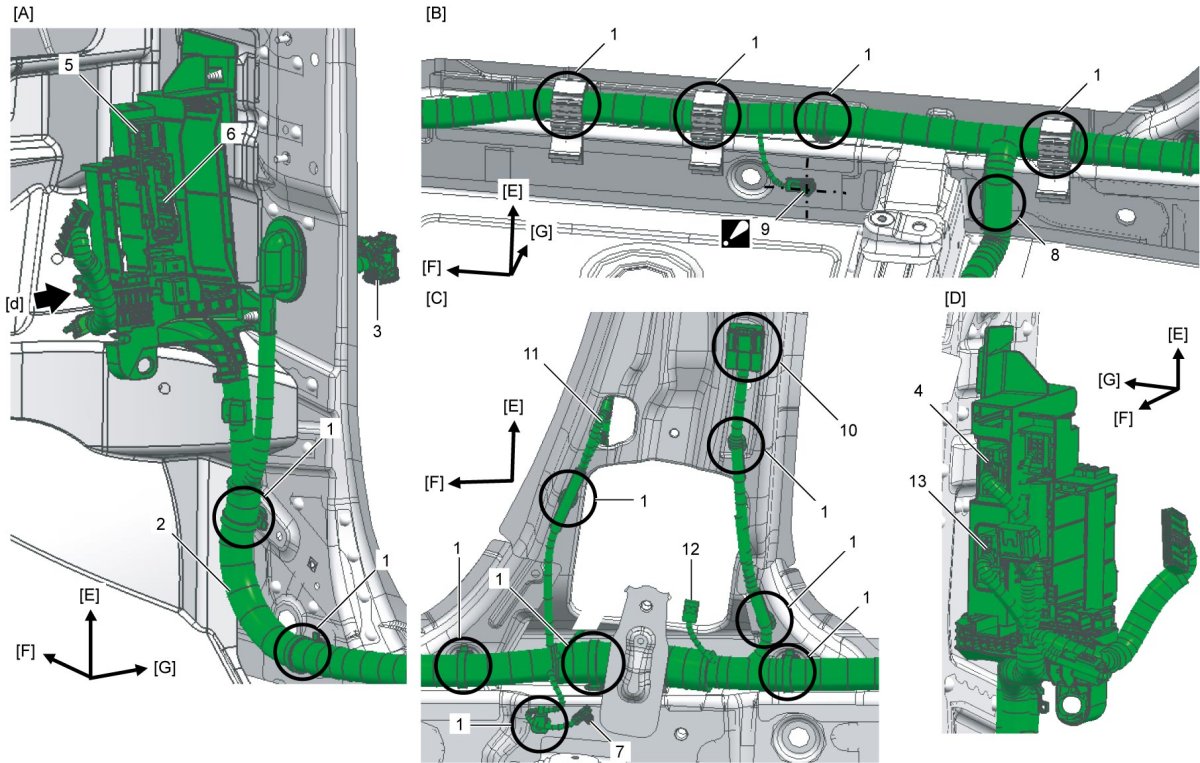

Around Main Floor

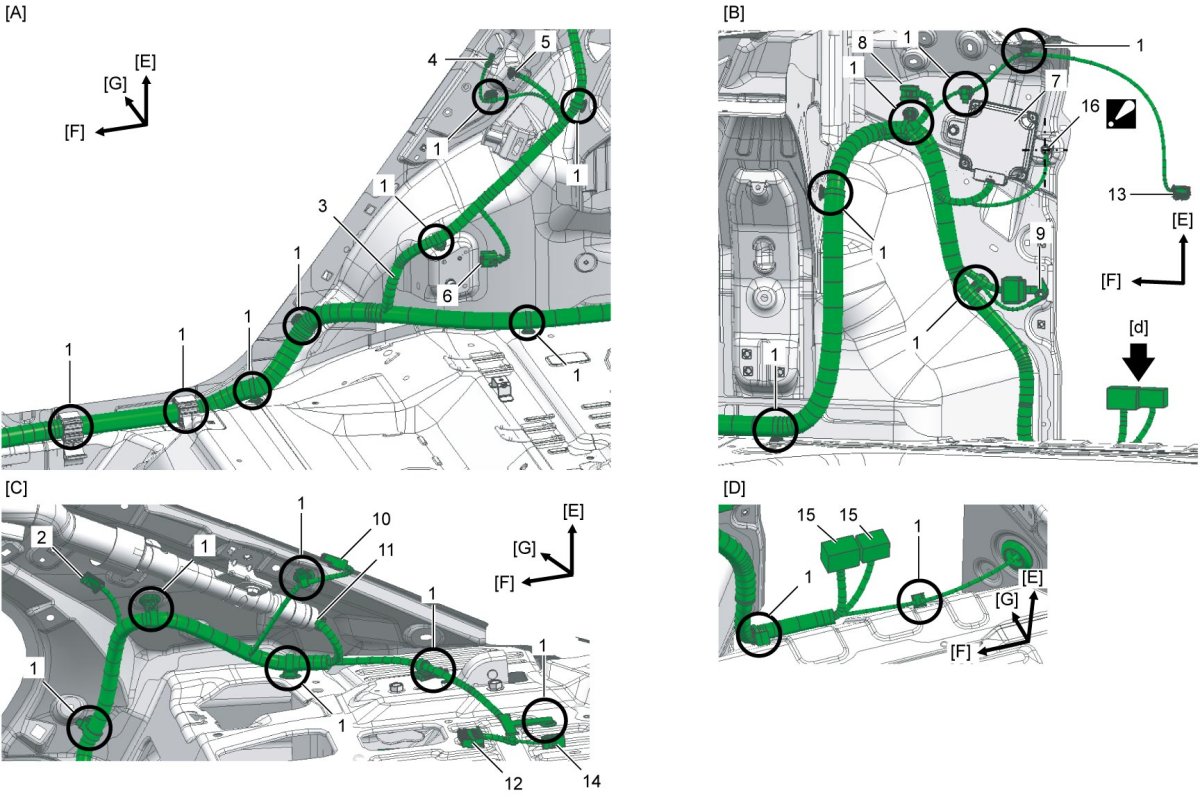

Around Main Floor
Around Main Floor

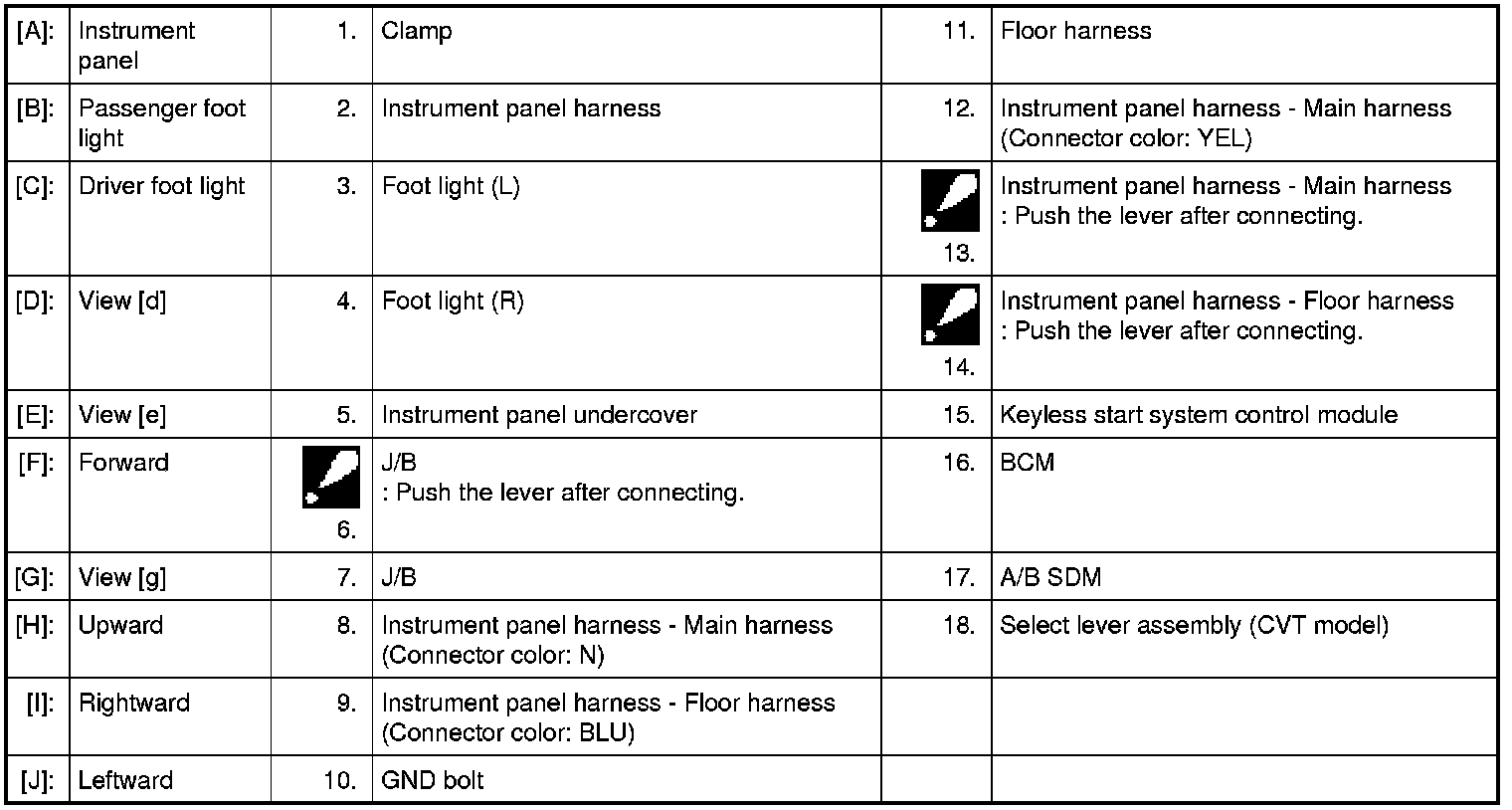

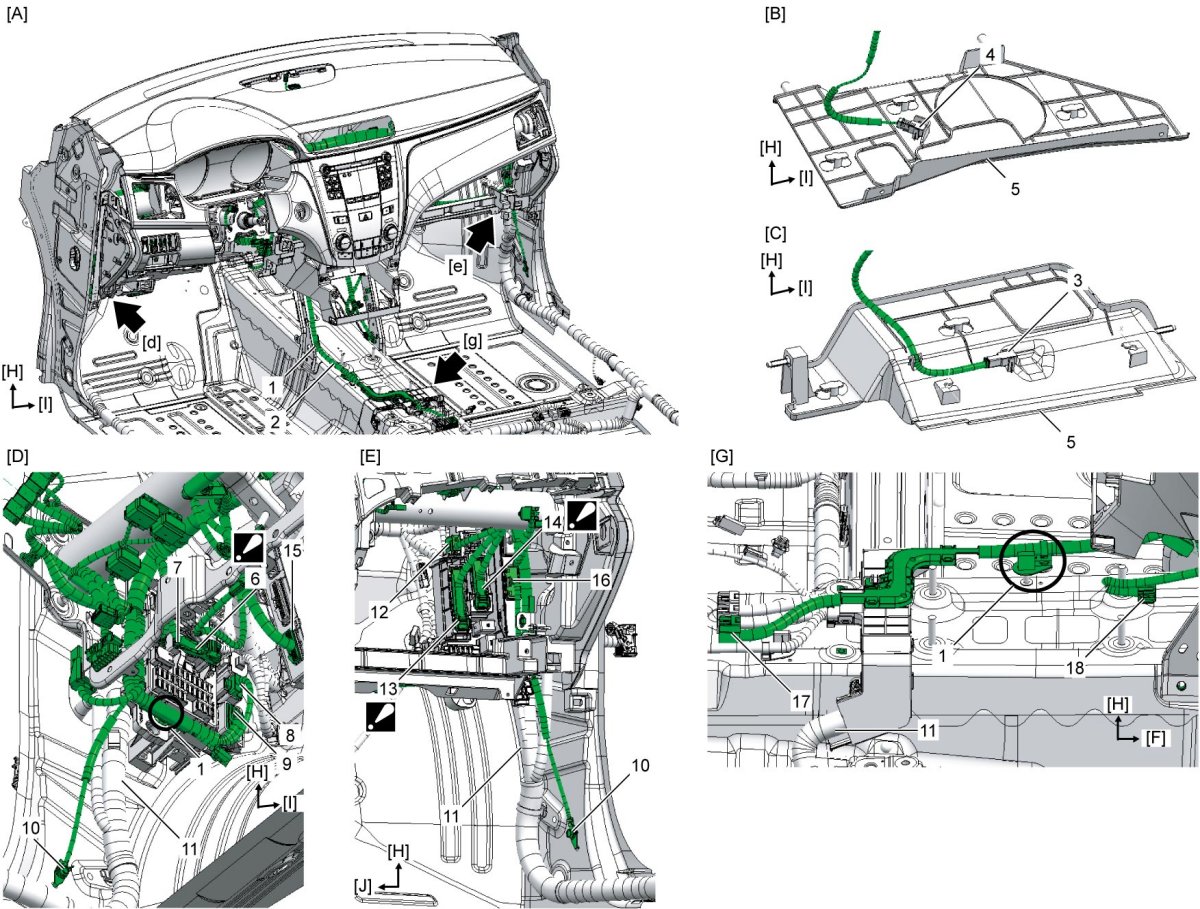

Front Part

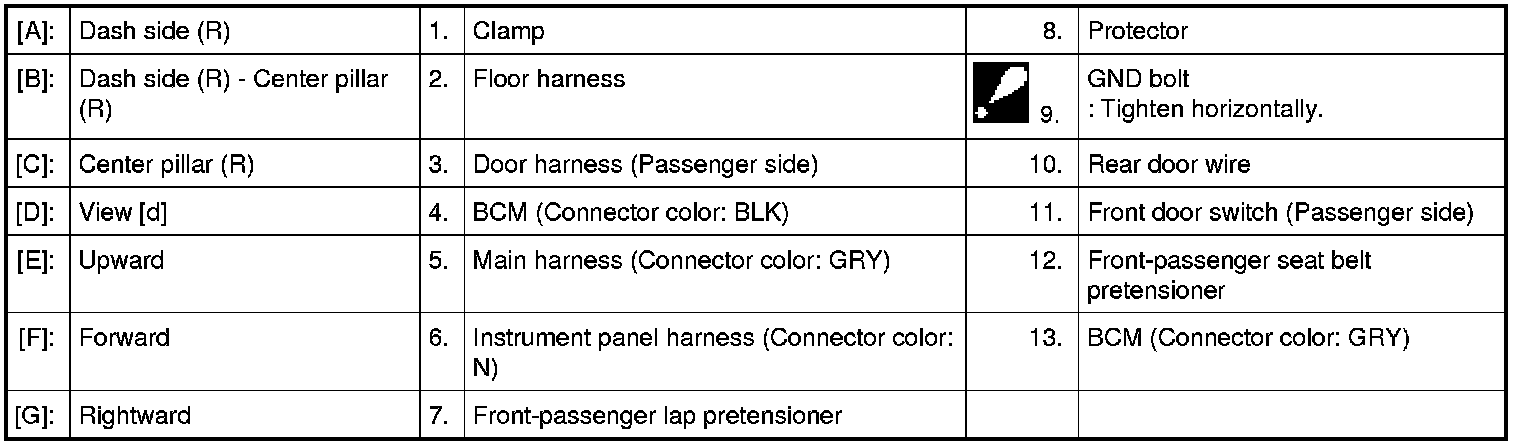

Right Side

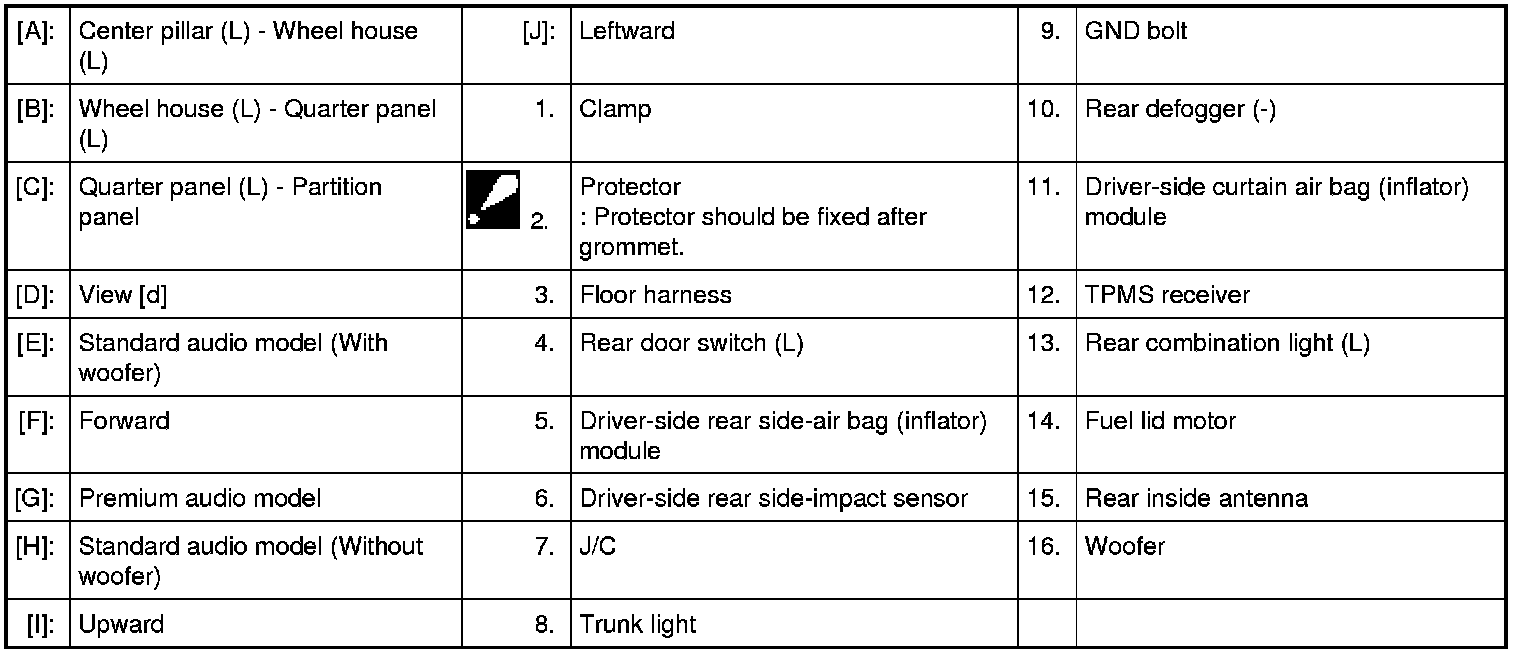

Left Side
