Outside Air Temperature Sensor Removal and Installation

Outside Air Temperature Sensor Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove front bumper. Service and Repair

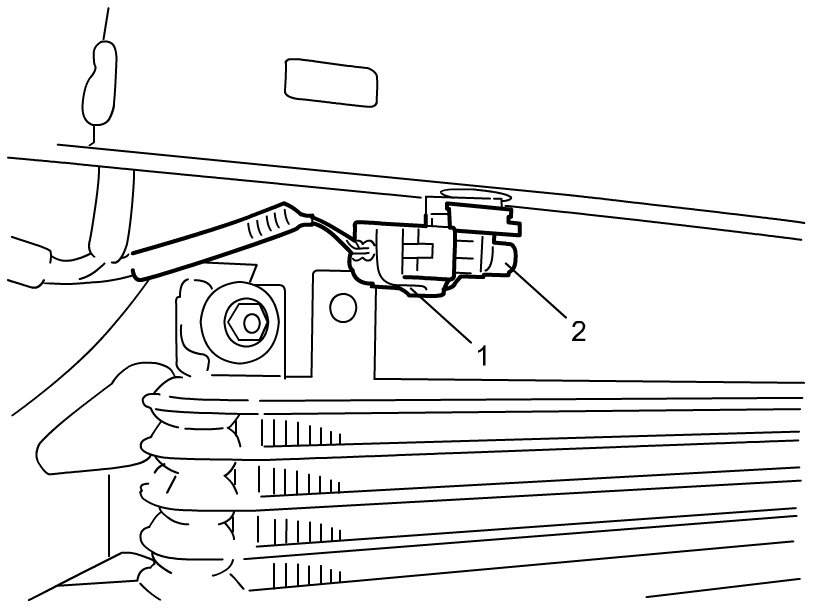

3) Disconnect connector (1) from outside air temperature sensor.
4) Remove outside air temperature sensor (2) from front bumper member.






Installation

Outside Air Temperature Sensor Inspection

Reverse removal procedure.
