Mechanical Diagrams

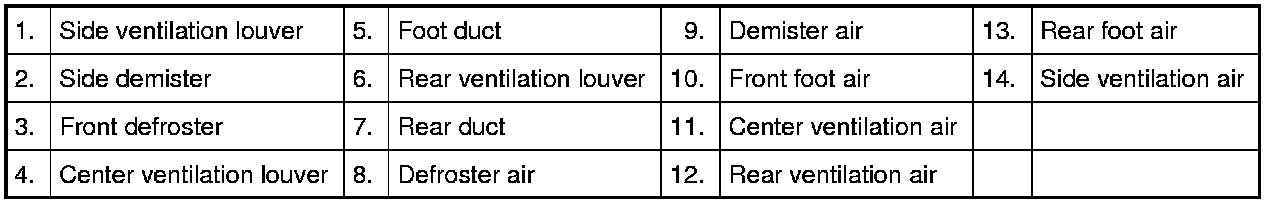

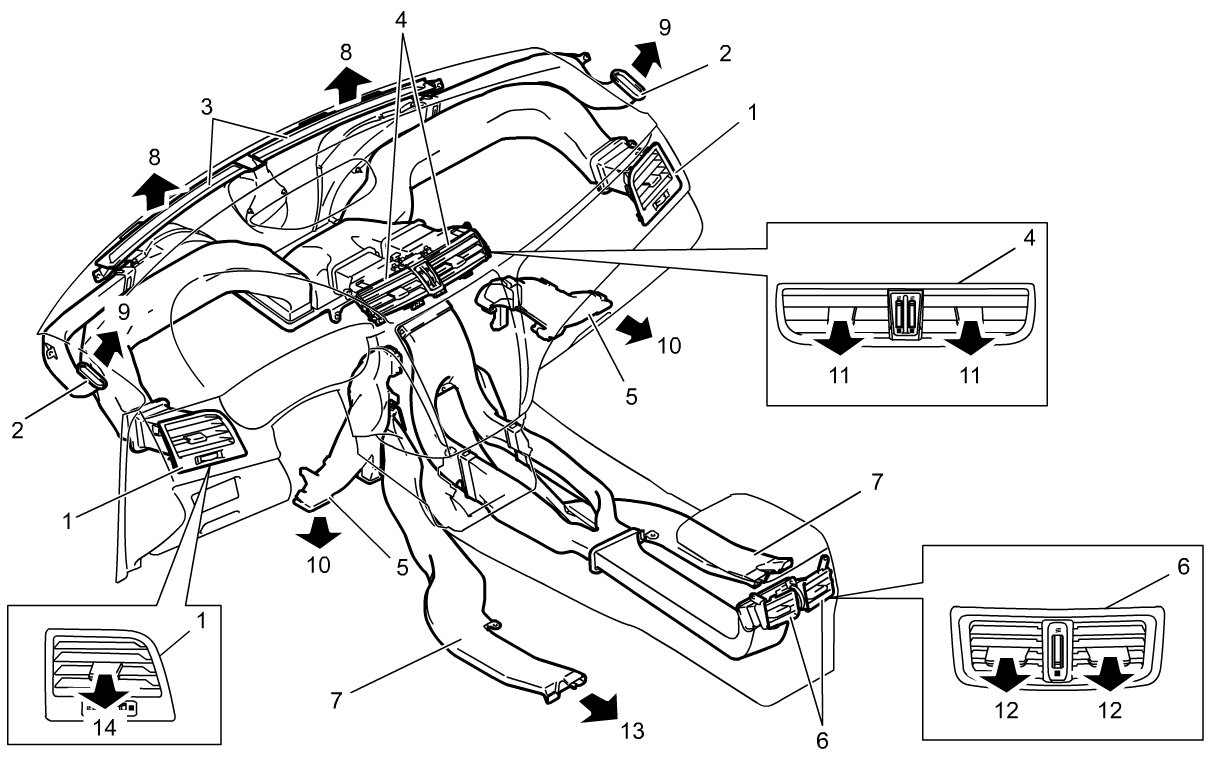

Ventilation Air Flow Diagram

Mode Position and Air Distribution

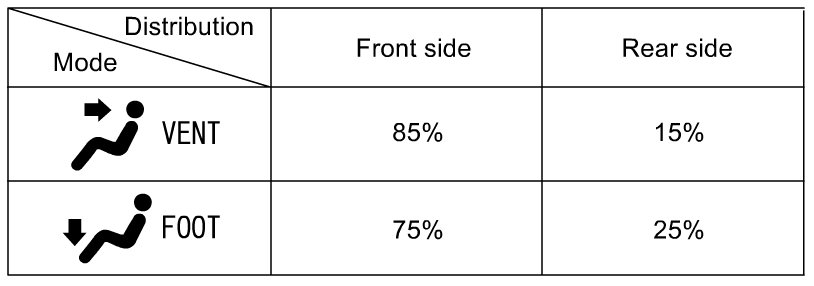

Front side air distribution

NOTE:

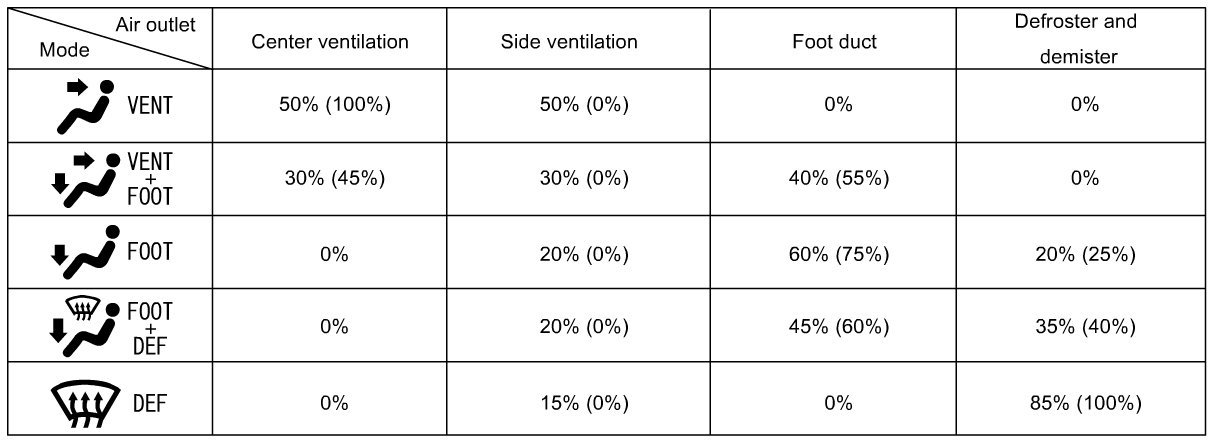

Figure in parentheses shows air flow percentage when both side ventilations are closed.

Distribution from front side to rear side
