Exhaust System Check

Exhaust System Check

CAUTION:

Touching a hot exhaust system component will cause a burn.

Do not perform any service work on the exhaust system until the exhaust system is cool.

Check the exhaust system at every periodic vehicle inspection and when the vehicle is hoisted for other service noting the following points:

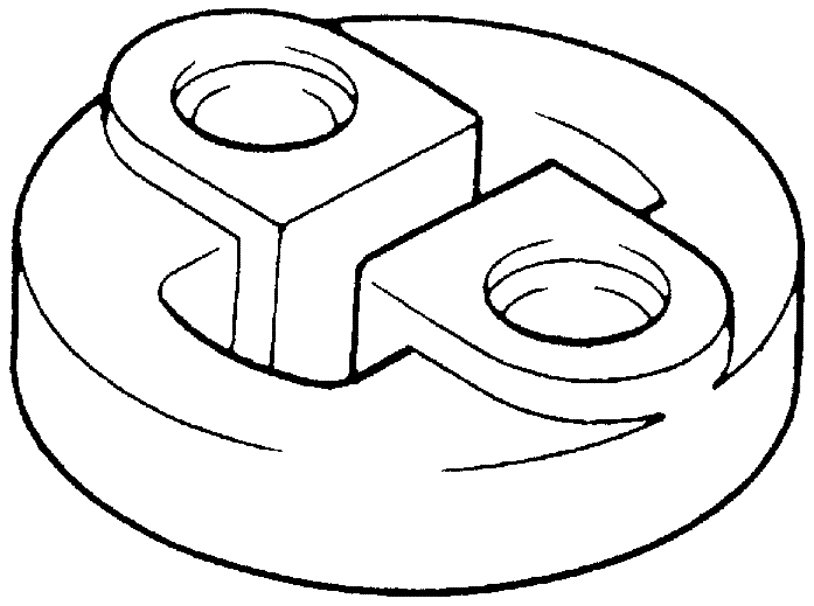

- Check rubber mountings for damage deterioration and incorrect position.





- Check mating surface of cylinder head with exhaust manifold for distortion.
- Check exhaust system for exhaust gas leakage, loose connection, dent and damage.
- Check if bolts or nuts are loosened, and then tighten them to specified torque.
- Check any damages, holes or cracks which may permit exhaust gas to enter the vehicle.
- Check to make sure that exhaust system components have enough clearance from other underbody components to avoid overheating and possible damage to these components.
- Check for any defects and fix them whenever found.
