Timing Chain and Chain Tensioner Inspection

Timing Chain and Chain Tensioner Inspection

Timing Chain and Chain Tensioner Removal and Installation

Timing Chain Guide

Check sliding surface of timing chain guide (1) for wear or damage.

Replace timing chain guide if any abnormalities are found.





Timing Chain Tensioner

Check sliding surface of timing chain tensioner (1) for wear or damage.

Replace timing chain tensioner if any abnormalities are found.

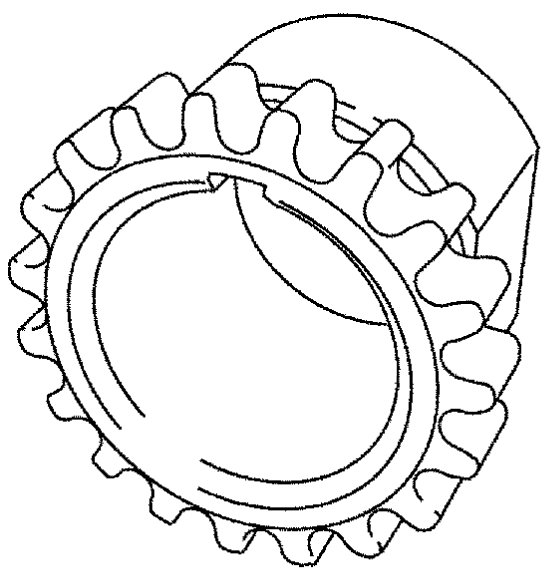

Crankshaft Timing Sprocket

Check sprocket teeth for wear or damage.

Replace crankshaft timing sprocket if any abnormalities are found.





Timing Chain

Check timing chain for wear or damage.

Replace timing chain if any abnormalities are found.






Timing Chain Tensioner Adjuster

Check that tooth surface (1) are free from damage.

Replace timing chain tensioner adjuster if any abnormalities are found.
