Radiator Cooling Fan Assembly On-Vehicle Inspection

Radiator Cooling Fan Assembly On-Vehicle Inspection

Radiator Cooling Fan Operation

1) Connect scan tool to DLC (1) with ignition mode of keyless push start system in "OFF".
Special Tool

(A): SUZUKI scan tool (SUZUKI-SDT)





2) Push engine switch to change ignition mode to "ON" and clear DTC. DTC Clearance
3) Select the "Radiator Fan" function in "Active Test".
4) Check radiator cooling fan operation at low, mid and high modes.

If any abnormality is found, check cooling fan control system referring to Radiator Cooling Fan Control System Check Radiator Cooling Fan Control System Check.

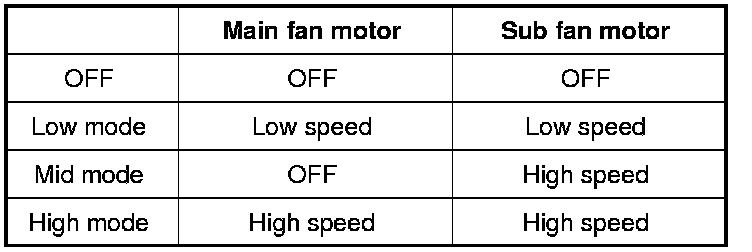

Radiator cooling fan operation






Radiator Cooling Fan Motor

1) Disconnect main fan motor connector (2) and sub fan motor connector (1).
2) Connect each fan motor connector and battery as shown in figure respectively.





3) Check each radiator cooling fan motor for smooth rotation.

If any abnormality is found, replace corresponding radiator cooling fan motor
