Home >> Suzuki >> 2011 >> Kizashi AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Navigation System >> G-4 Navigation System Circuit Diagram (without Audio Amplifier)

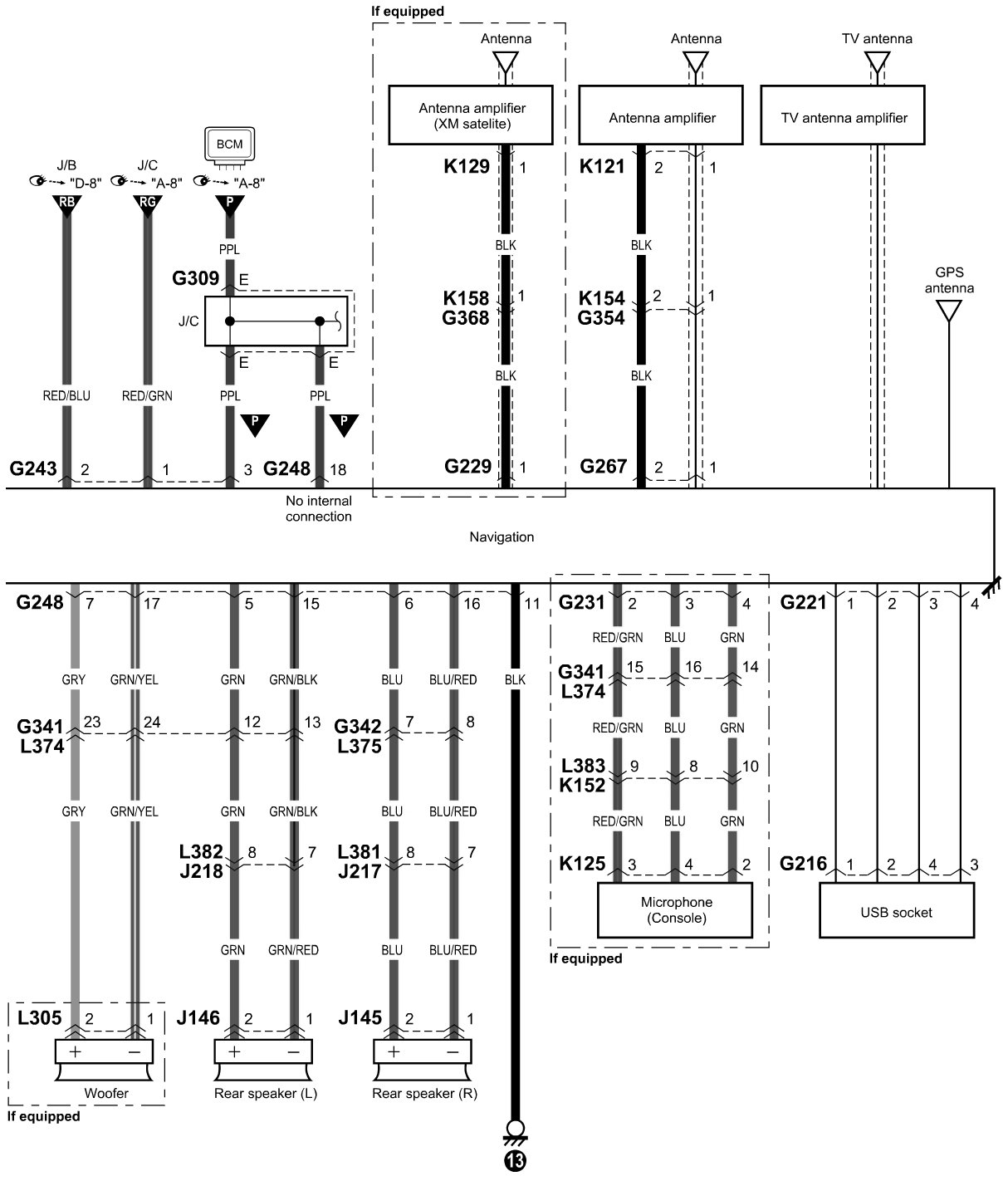

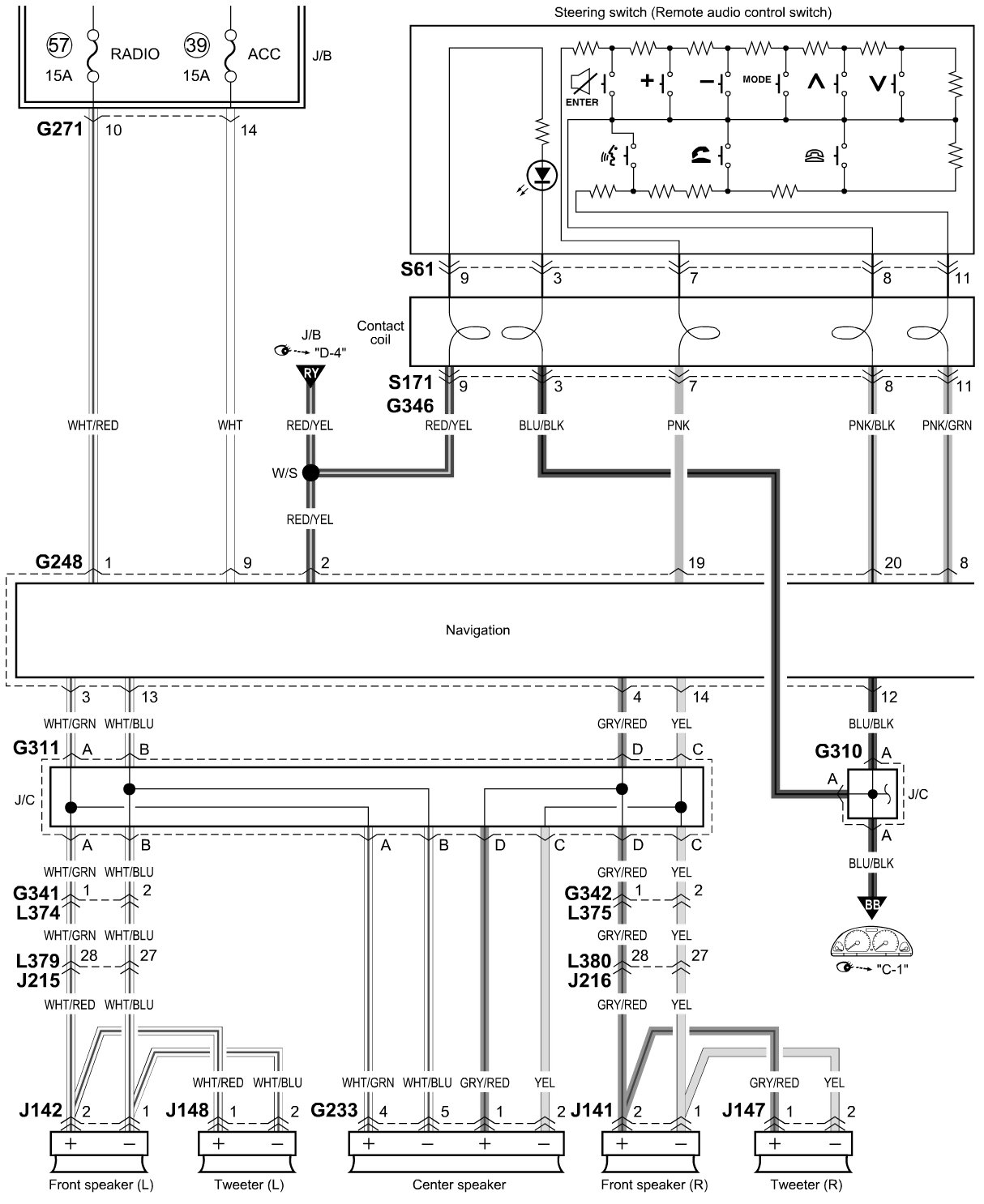

G-4 Navigation System Circuit Diagram (without Audio Amplifier)




G-4 Navigation System Circuit Diagram (without Audio Amplifier)
