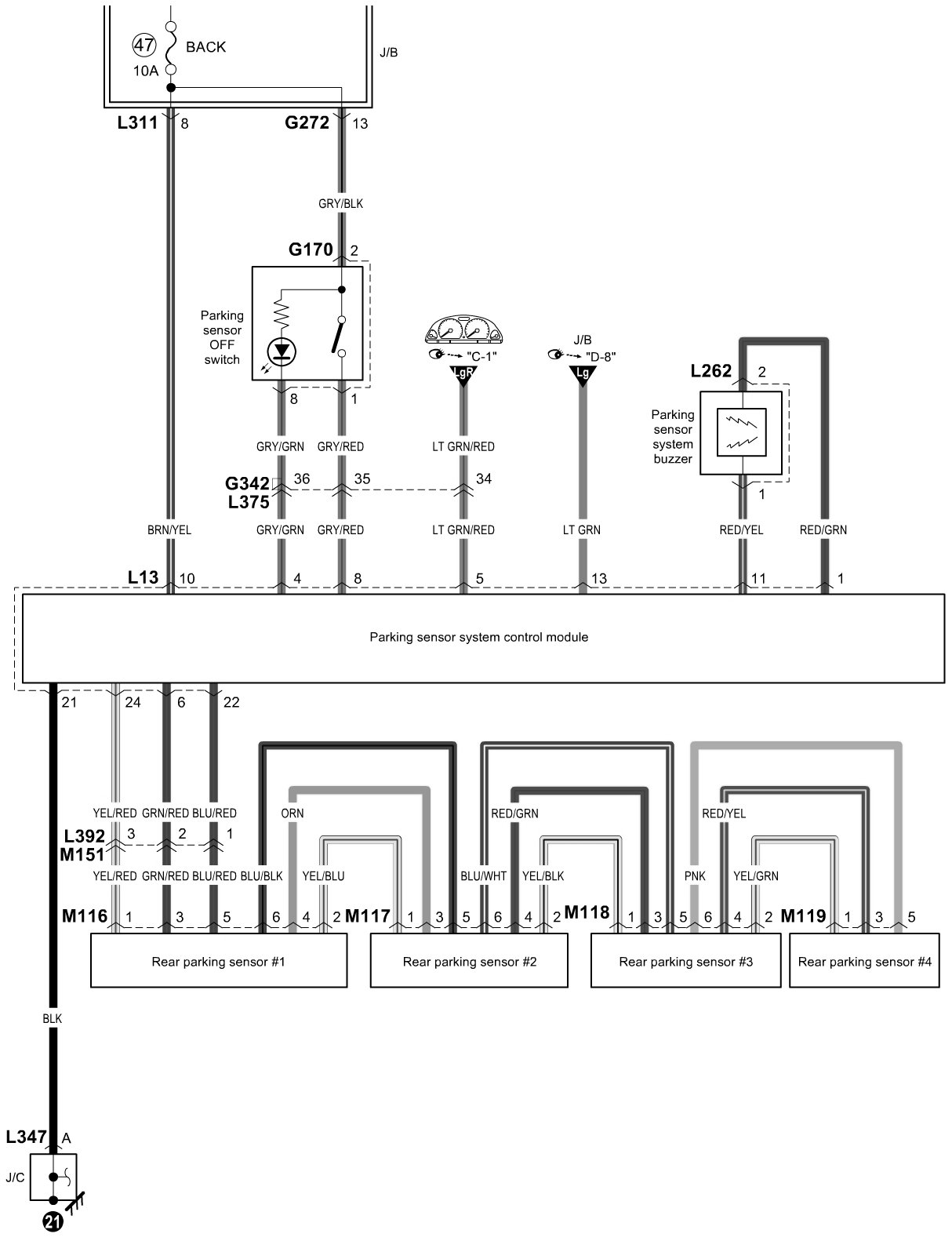

B-11 Parking Sensor System Circuit Diagram
B-11 Parking Sensor System Circuit Diagram
B-11 Parking Sensor System Circuit Diagram
