Fail-Safe Table

Fail-Safe Table

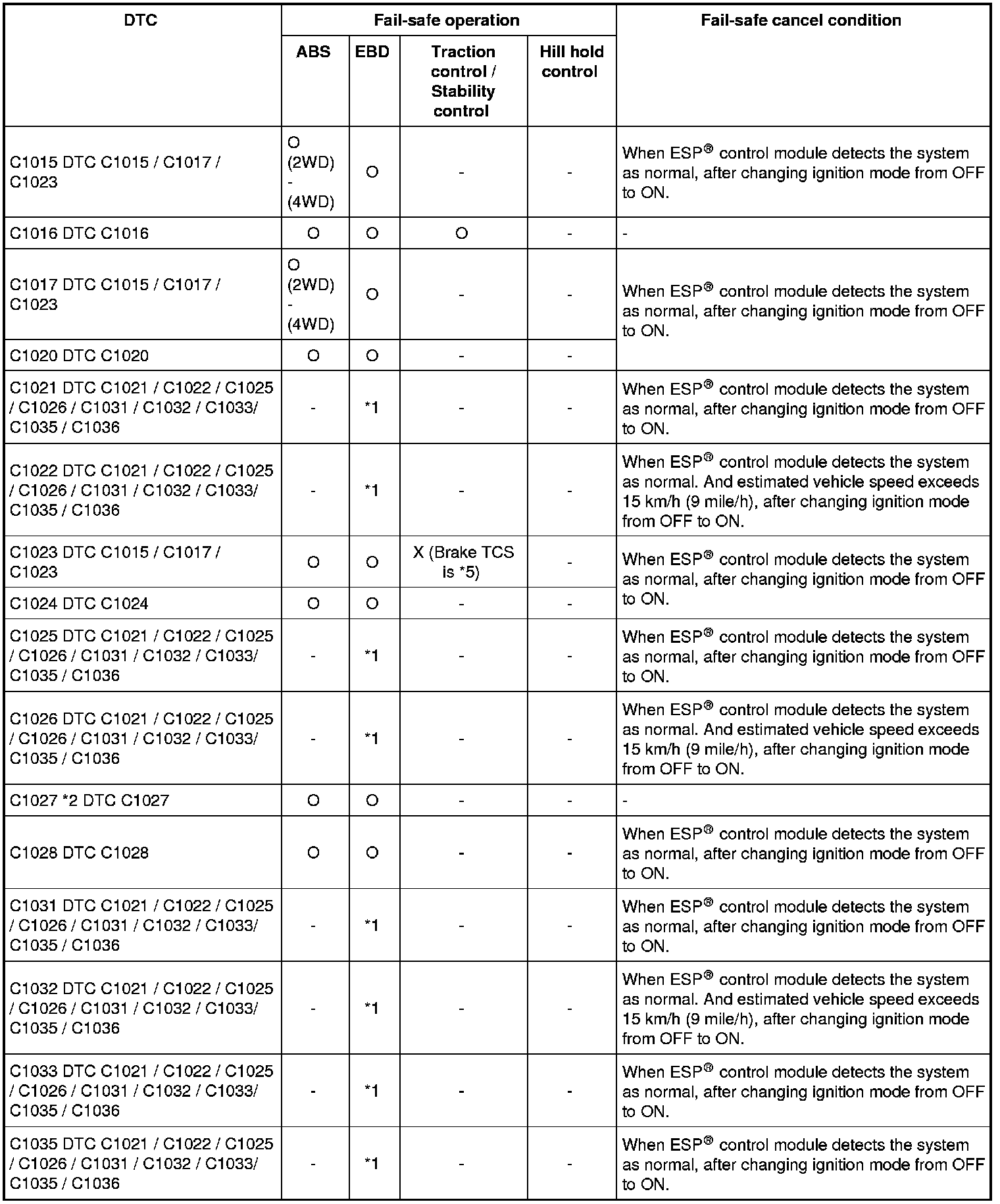

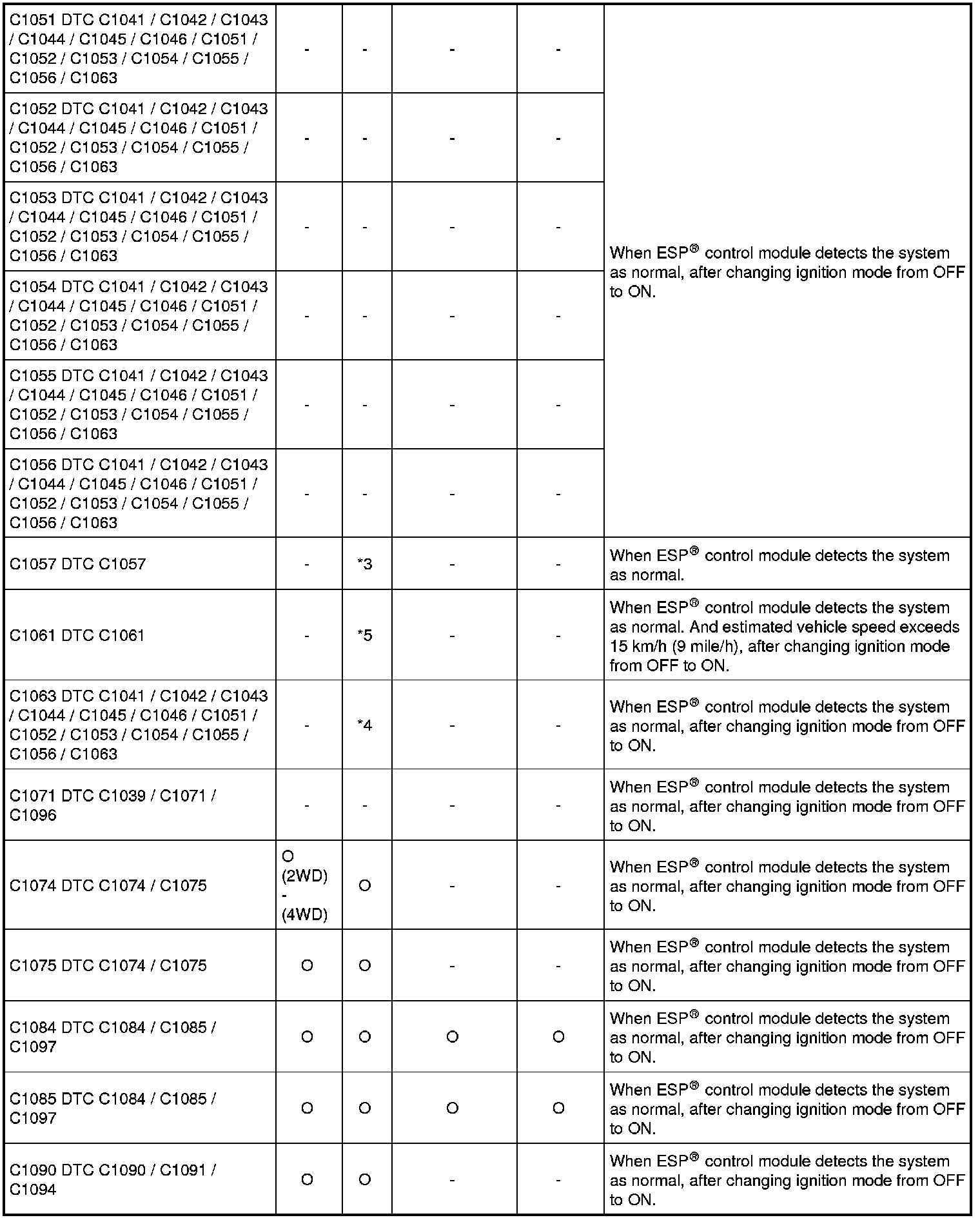

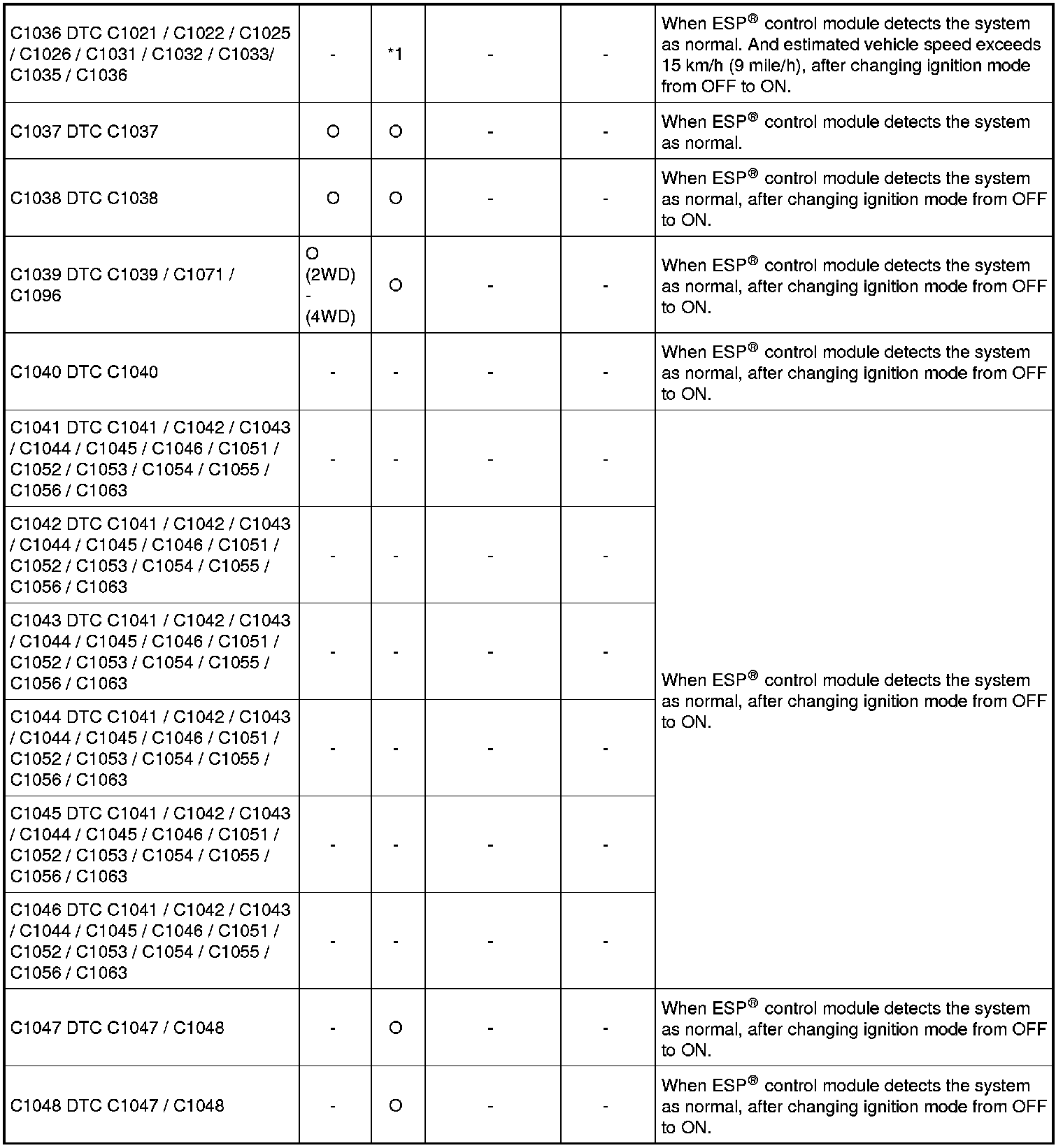

When any of the following DTC(s) is detected, ESP (R) system is in fail-safe mode per its DTC and ABS, EBD, traction control, stability control are deactivated until the solution is applied.

NOTE:

- O: Activated
- -: Deactivated
- *1: If one or two wheel speed sensors are defective, EBD control function is activated. If three or more wheel speed sensors are defective, EBD control function is deactivated.
- *2: ESP (R) OFF mode is canceled and all control functions are activated.
- *3: EBD control function is activated only power supply circuit becomes 7.6 - 9.6 V malfunction.
- *4: EBD control function is activated if solenoid valve keeps ON position.
EBD control function is deactivated if solenoid valve keeps OFF position.
- *5: Back up control
