Home >> Suzuki >> 2011 >> Kizashi AWD L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

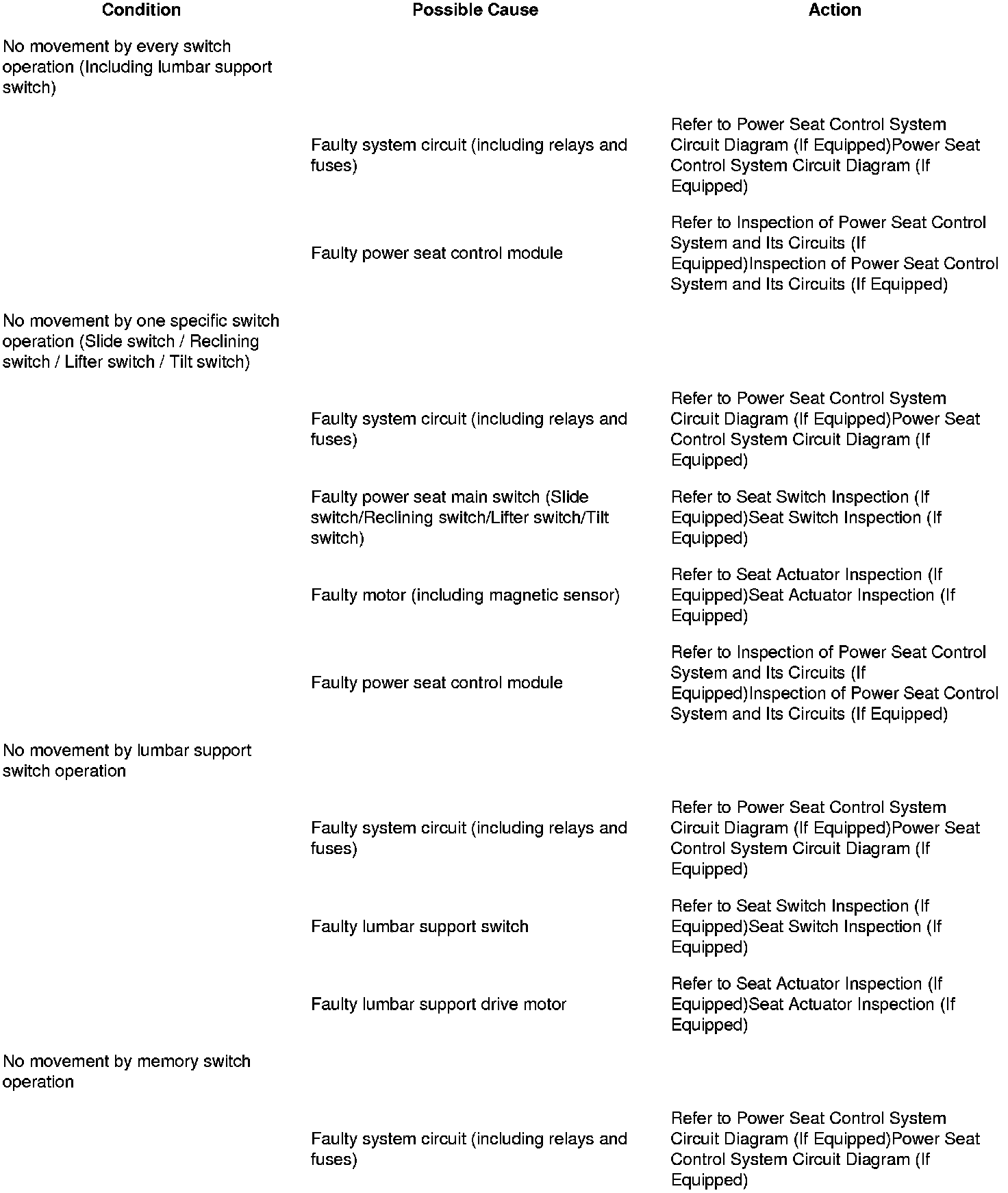

Power Seat Control System Symptom Diagnosis (If Equipped)

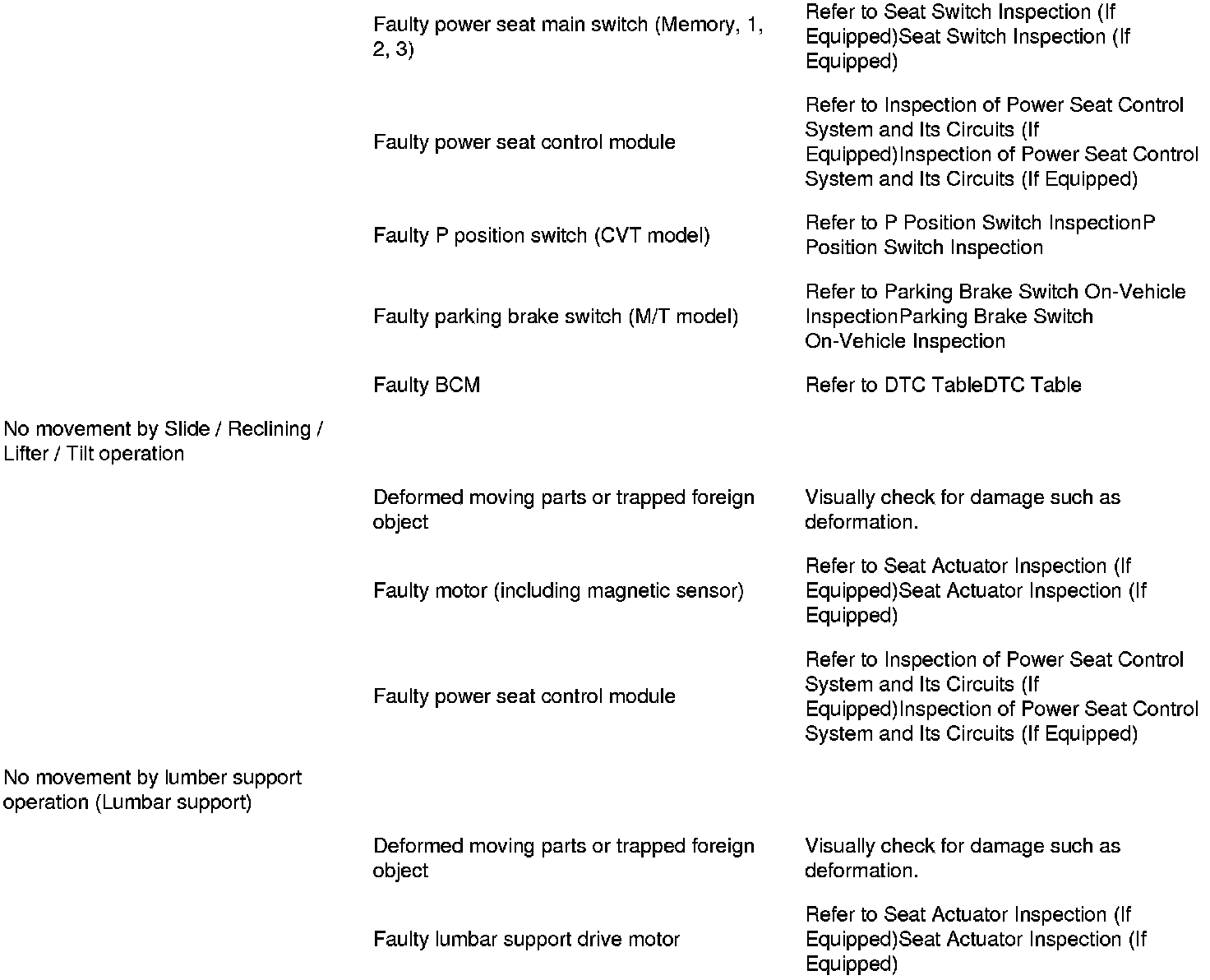

Driver's Power Seat

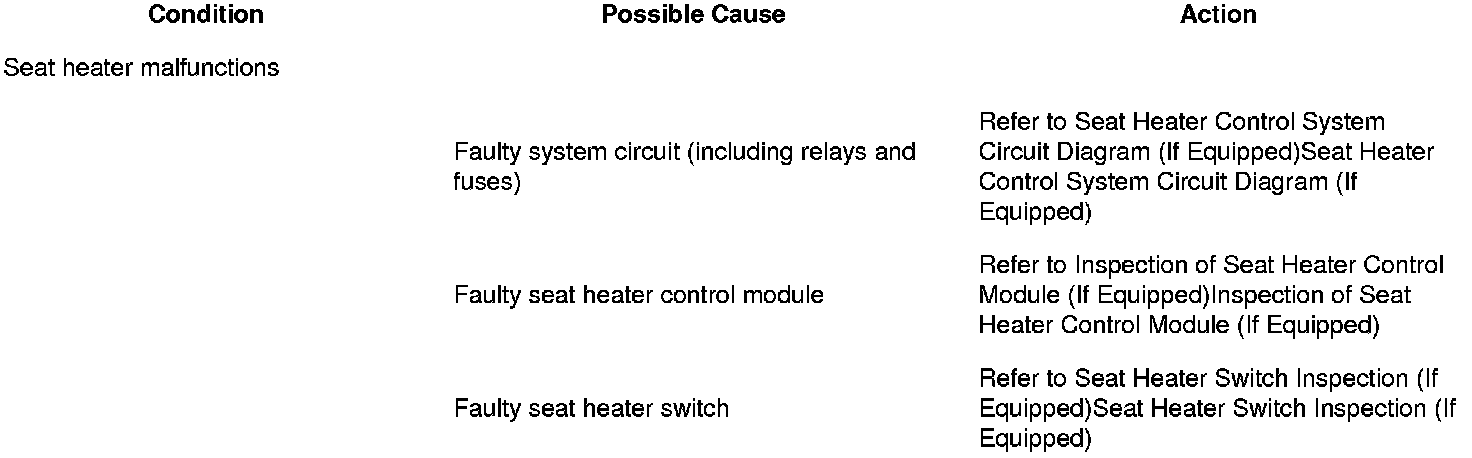

Seat Heater
