Interior - R/H Front Seat Trim Breaks Away From Seat Frame
TSB No. TS 03 03262RSection Title: Body, Cab and Accessories
Category: Technical
Division: Automotive
SUBJECT:
RIGHT FRONT SEAT TRIM OUTER RECLINING COVER BREAKING AWAY FROM THE SEAT FRAME AT THE FORWARD ANCHOR POINT.
MODEL(S): KIZASHI (YW424)
YEAR: 2010-2011
VIN BREAK(S): - JS2RE9A3_B6111431 Jan. 28, 2011
- JS2RE9A6_B6110281 Feb. 07, 2011
- JS2RE9A8_B6110625 Feb. 02, 2011
- JS2RF9A3_B6110823 Jan. 28, 2011
- JS2RF9A6_B6110433 Jan. 31, 2011
- JS2RF9A8_B6110860 Feb. 01, 2011
CONDITION:
The Outer Reclining Cover trim may break away from the seat frame at the forward anchor point on the right front passenger seat.
CAUSE:
The plastic trim cover is not designed for any type of weight support such as someone resting on the outer edge of the seat cushion while entering/exiting the vehicle.
CORRECTION:
The seat frame has been modified and the trim cover redesigned to prevent stress concentration. Please refer to the countermeasure VIN breaks listed above and the seat adjuster type to determine the necessary repair action. If the vehicle you are working on was built prior to the VIN break and there is no prior replacement of the seat cushion (frame) then both the seat cushion assy must be modified (manual adjuster) or replaced (power seat) and the broken plastic trim cover must be replaced. If the vehicle is after the VIN break only the plastic trim outer reclining cover should be replaced. In the unlikely event that you encounter a vehicle that has failed after the VIN break or had a new seat cushion/frame modified or replaced, and find that the seat cushion (frame) is the same as that pictured as "Before" countermeasure, contact the Suzuki Technical Hotline for instructions.

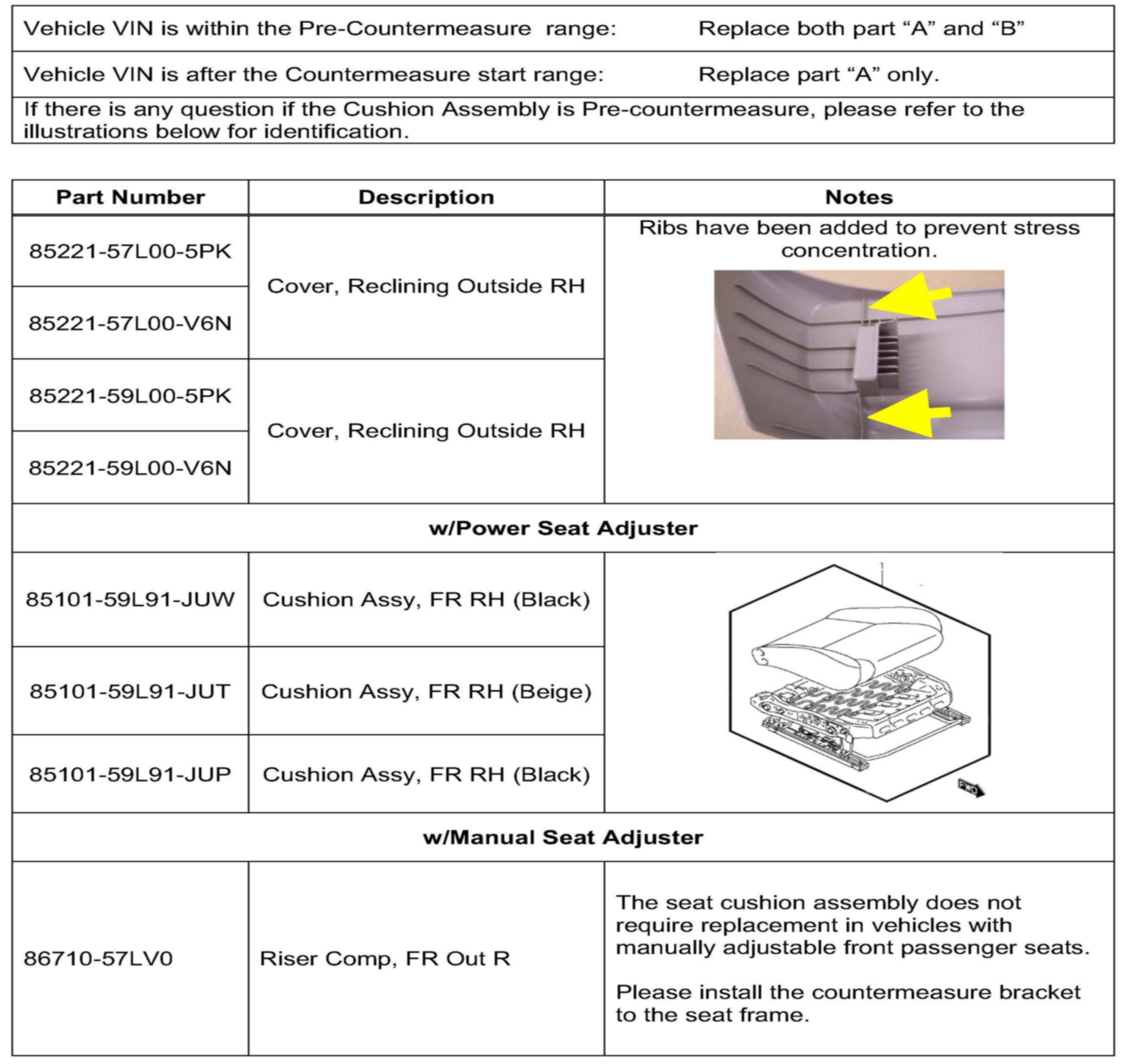

PARTS INFORMATION

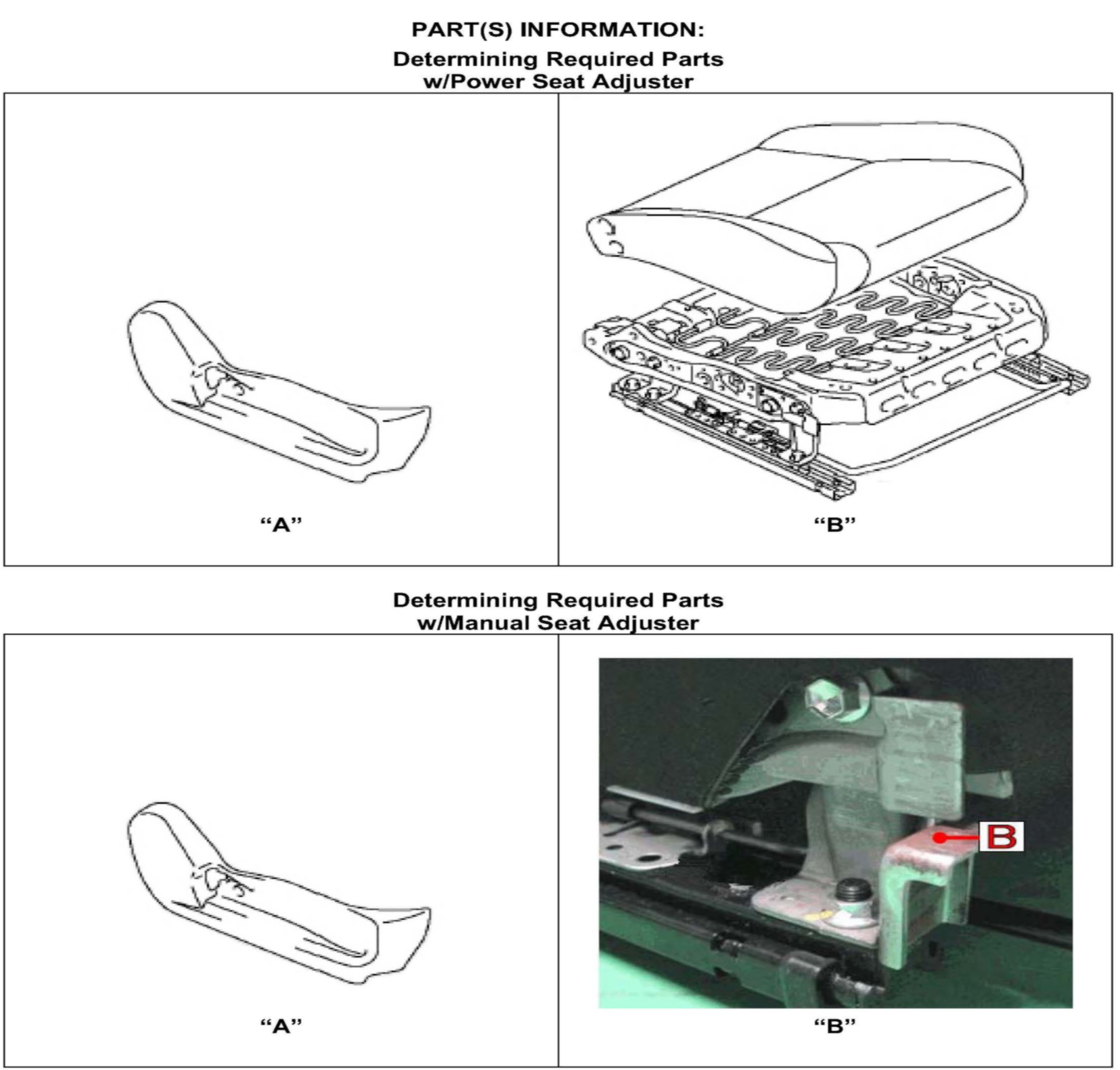

Visual Identification:
w/Power Seat Adjuster
INSTALLATION INSTRUCTIONS:
For vehicle equipped with power adjusting front passenger seat.
Please refer to the service manual procedure for "Front Seat Removal and Installation"
For vehicle equipped with manual adjusting front passenger seat.
1. Remove the broken outer reclining cover.
2. Remove the Bolt Nut and Bracket "A".
3. Attach new countermeasure Bracket "B" then fasten re-using the Bolt and Nut.
Tightening torque: 18.4-33.4 lbf-ft (25-45 Nm, 2.5-4.5 Kgf-m)
4. Attach the new Outer Reclining Cover trim to the seat frame.
5. The repair is now complete.

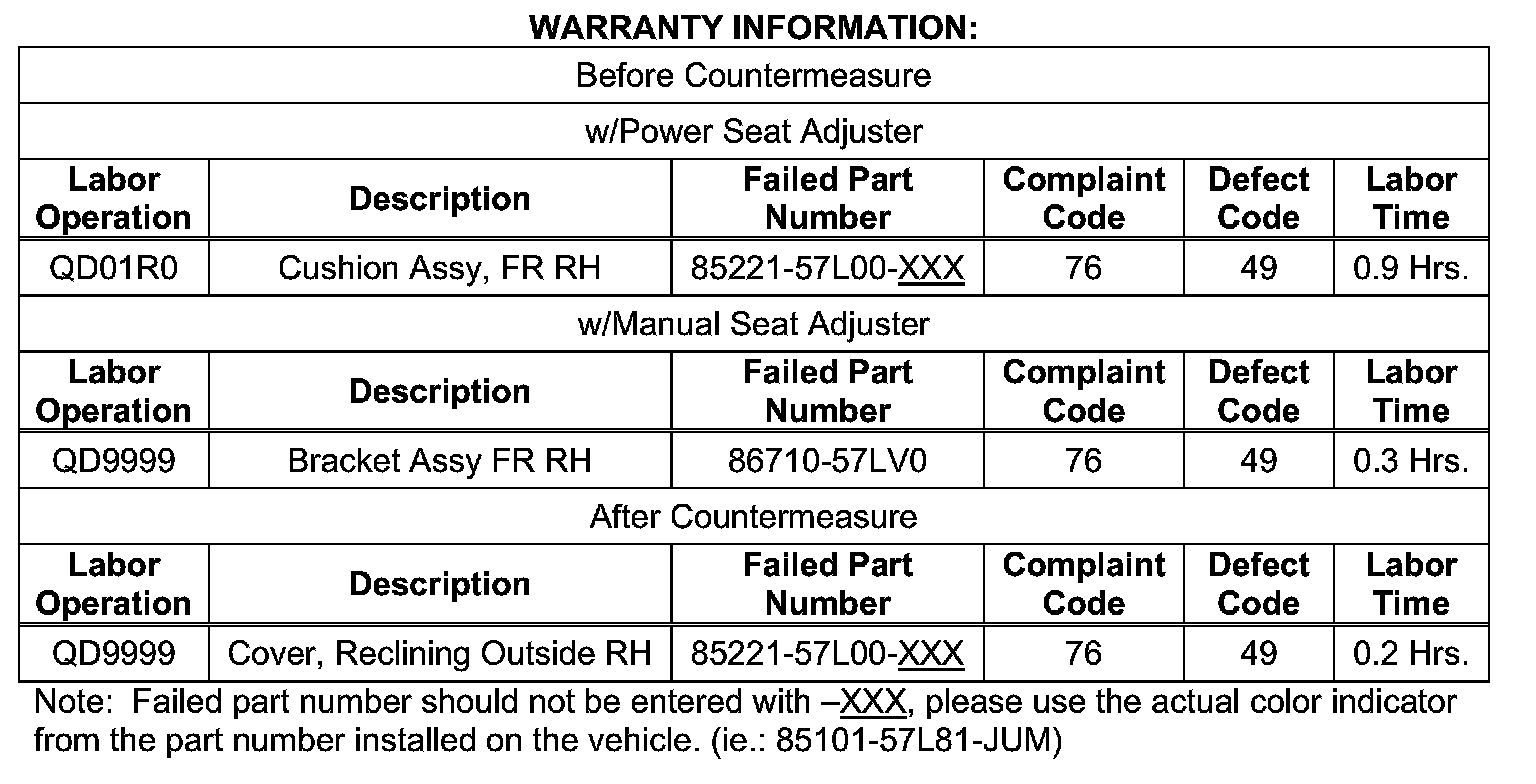

WARRANTY INFORMATION
