Power Door Mirror Motor

1) Remove front door trim. Front Door Glass Removal and Installation

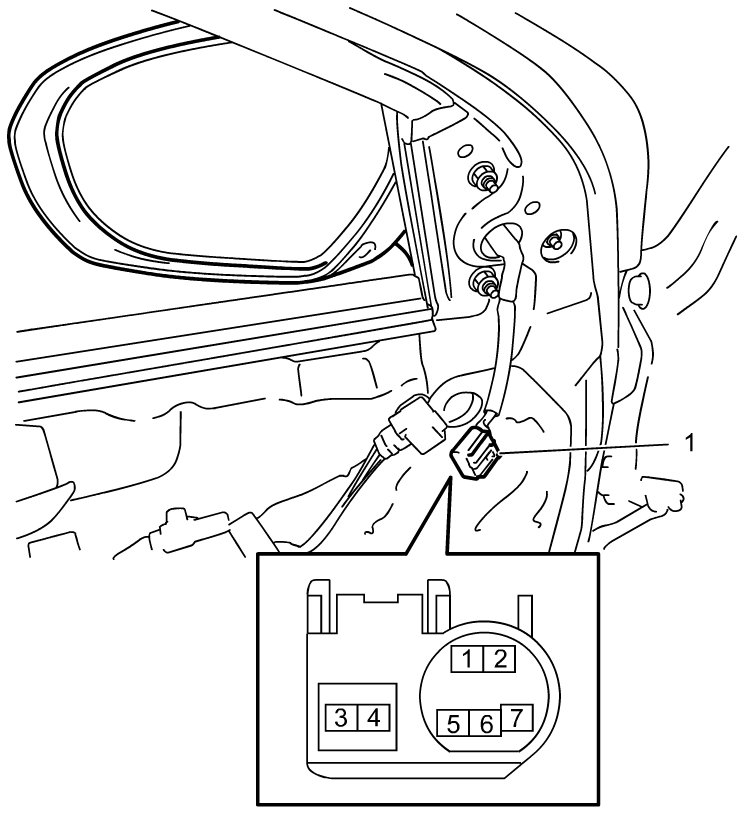

2) Disconnect power door mirror connector (1).

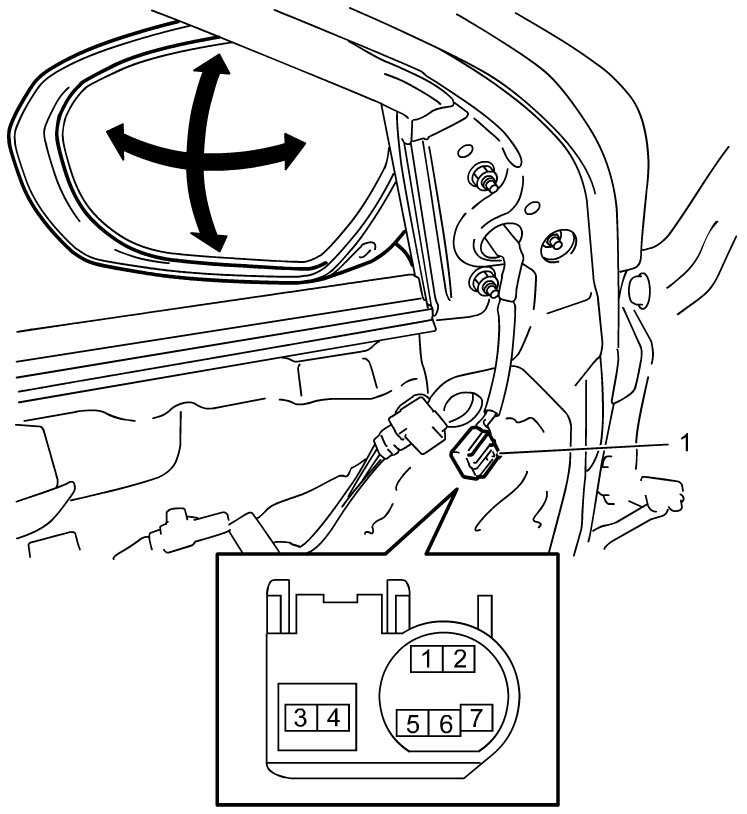

3) Check battery terminals to power door mirror connector (1) as shown in following table and check operation of power door mirror motor.

If check result is not as specified in the following operation, replace power door mirror.

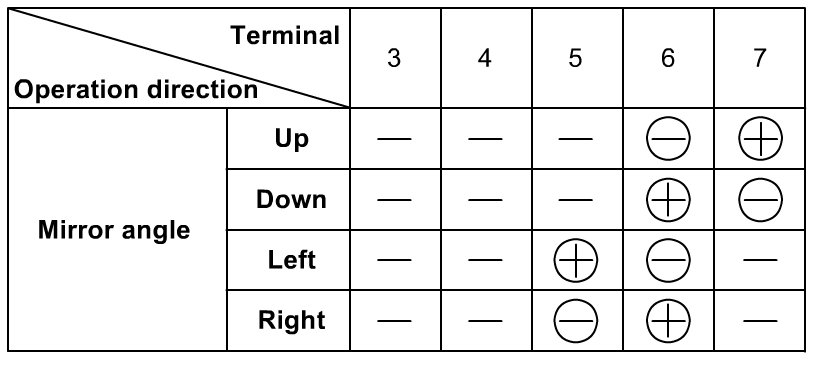

Power door mirror motor operation













Mirror Heater (If Equipped)

1) Remove front door trim. Front Door Glass Removal and Installation
2) Disconnect power door mirror connector (1).
3) Check resistance between terminal "1" and terminal "2" of power door mirror connector (1).

If check result is not as specified, replace power door mirror.

Mirror heater resistance
Approx. 7.6 ohms (25 °C) (77 °F)
