Overhead Console Box Removal and Installation

Overhead Console Box Removal and Installation

Removal

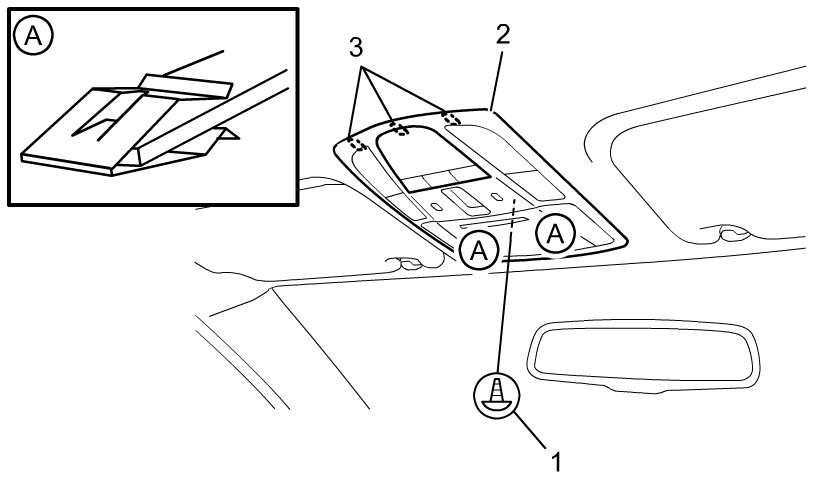

1) Remove screw (1).
2) Remove clips at front side of vehicle.
3) Release claws (3) from roof lining and remove overhead console box (2).
4) Disconnect connectors from overhead console box.






Installation

Reverse removal procedure.
