Front Door Panel: Service and Repair

Front Door Components

Removal

1) Lower front door glass to about 30 mm (1.18 in) from the lower edge of window.
2) Disconnect negative (-) cable at battery.

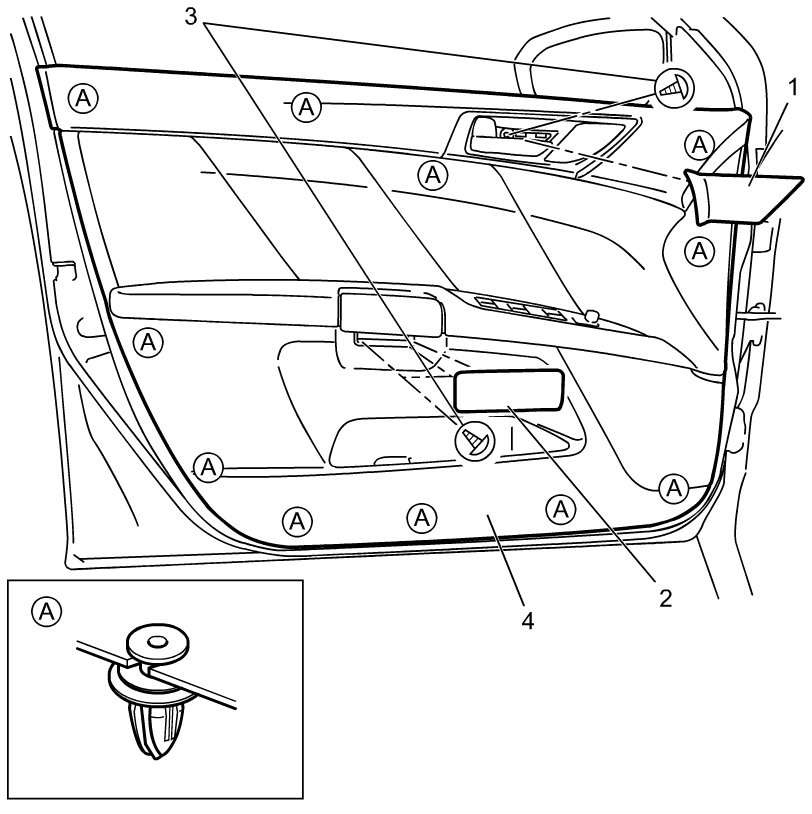

3) Remove inside handle cap (1) and trim cap (2).
4) Remove screws (3), clips, and remove door trim (4) by pulling it toward you.
5) Disconnect connectors of door harness.






Installation

Reverse removal procedure noting the following points.

- Tighten each part to specified torque referring to Front Door Components Front Door Components.
