Checking and Straightening Benches Instruction

Checking And Straightening Benches Instruction






- Bench and jig systems are essential for accurate and efficient repairs of deformed body structures.
- On the Bench and jig system, it will be easy to check chassis parts for dimensional accuracy, alignment, components location and secure exact welding of new body parts.
- Universal jig systems are also available in the market.

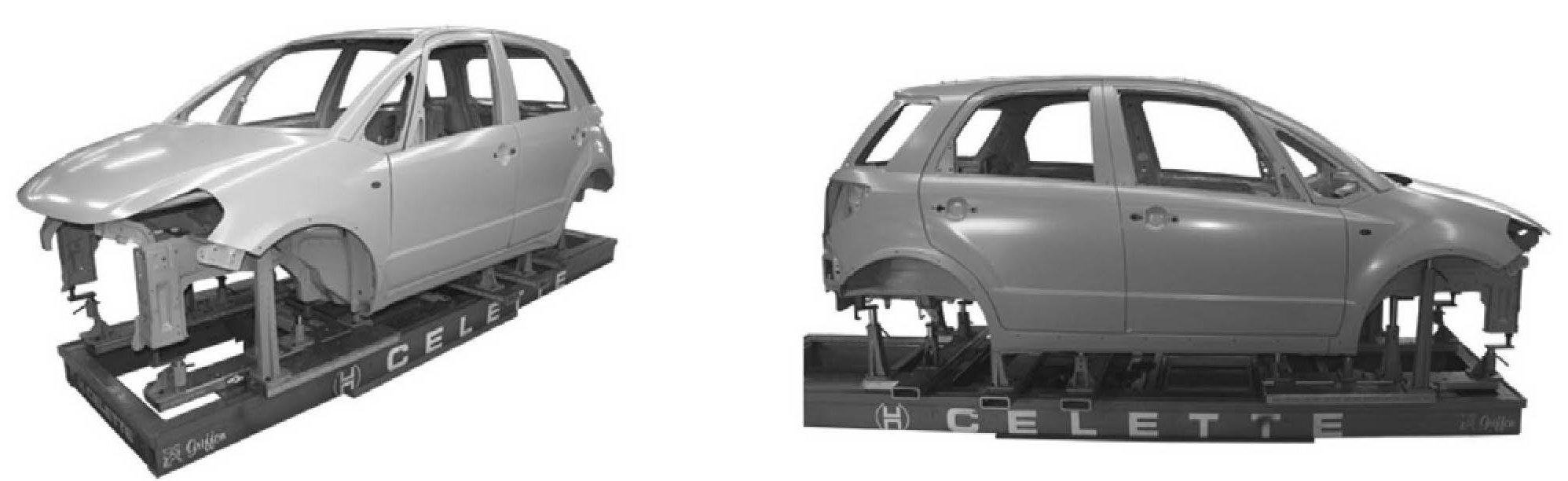

- Celette offers a special jig kit for this model. For further information on jig kit, please contact "Celette:"
- Also the use of universal computerized body measuring system is recommended in case if you do not use the jig system.

Use of Computerized Measuring Systems
- Reference points for measuring body frame and body structure can be found in the vehicle specific measurement data sheet from the measuring system manufacturers.
- Contact the system manufacturer for details on installations and operations.
- Always follow the operation manual of the measuring system manufacturer.

Application
The use of a computerized measuring system is recommended in following cases.
- Removals of members, frames, struts and wheel housings are required before completing the frame deformation correction.
- Dents, creases, buckling or deformation exist on the vehicle floor panels or body frames.
