Rear Outside Antenna Removal and Installation




Rear Outside Antenna Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove rear bumper. Service and Repair

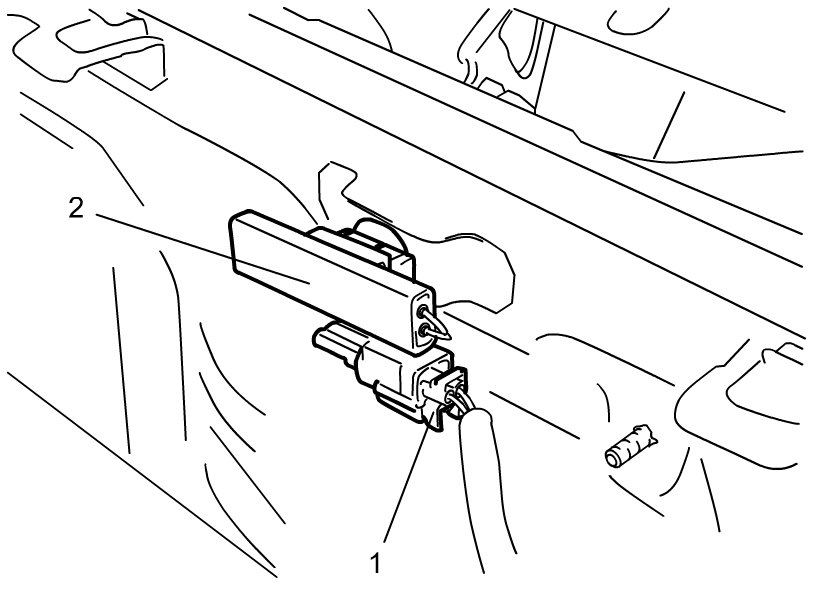

3) Disconnect connector (1), and then remove rear outside antenna (2).






Installation

Reverse removal procedure.
