Home >> Suzuki >> 2010 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Specifications >> Tightening Torque Specifications

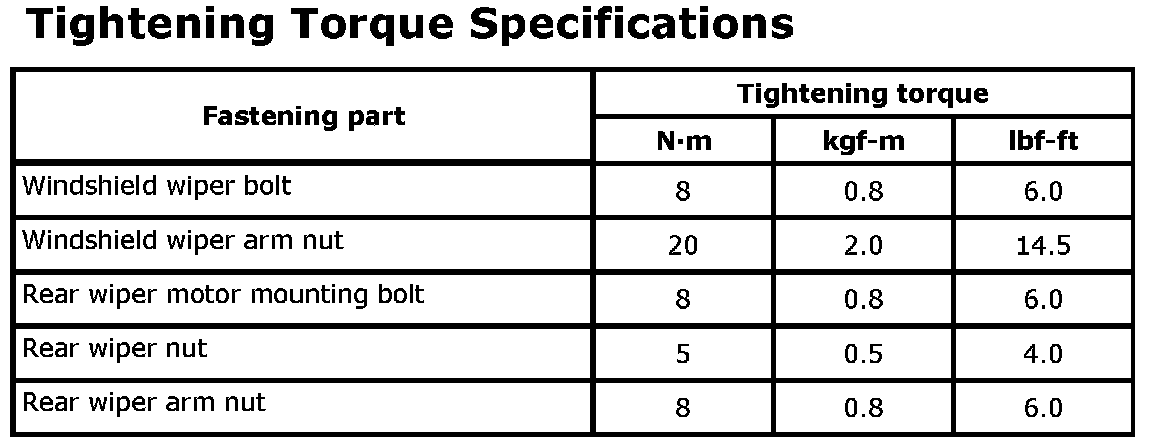

Tightening Torque Specifications

Tightening Torque Specifications






NOTE: The specified tightening torque is described in the following.
Wipers and Washers Components
