Differential Side Oil Seal Replacement

Differential Side Oil Seal Replacement
1) Lift up vehicle and drain CVT fluid.
2) Remove drive shaft joints from differential gear of transaxle. For differential side oil seal removal, it is not necessary to remove drive shafts from steering knuckle.

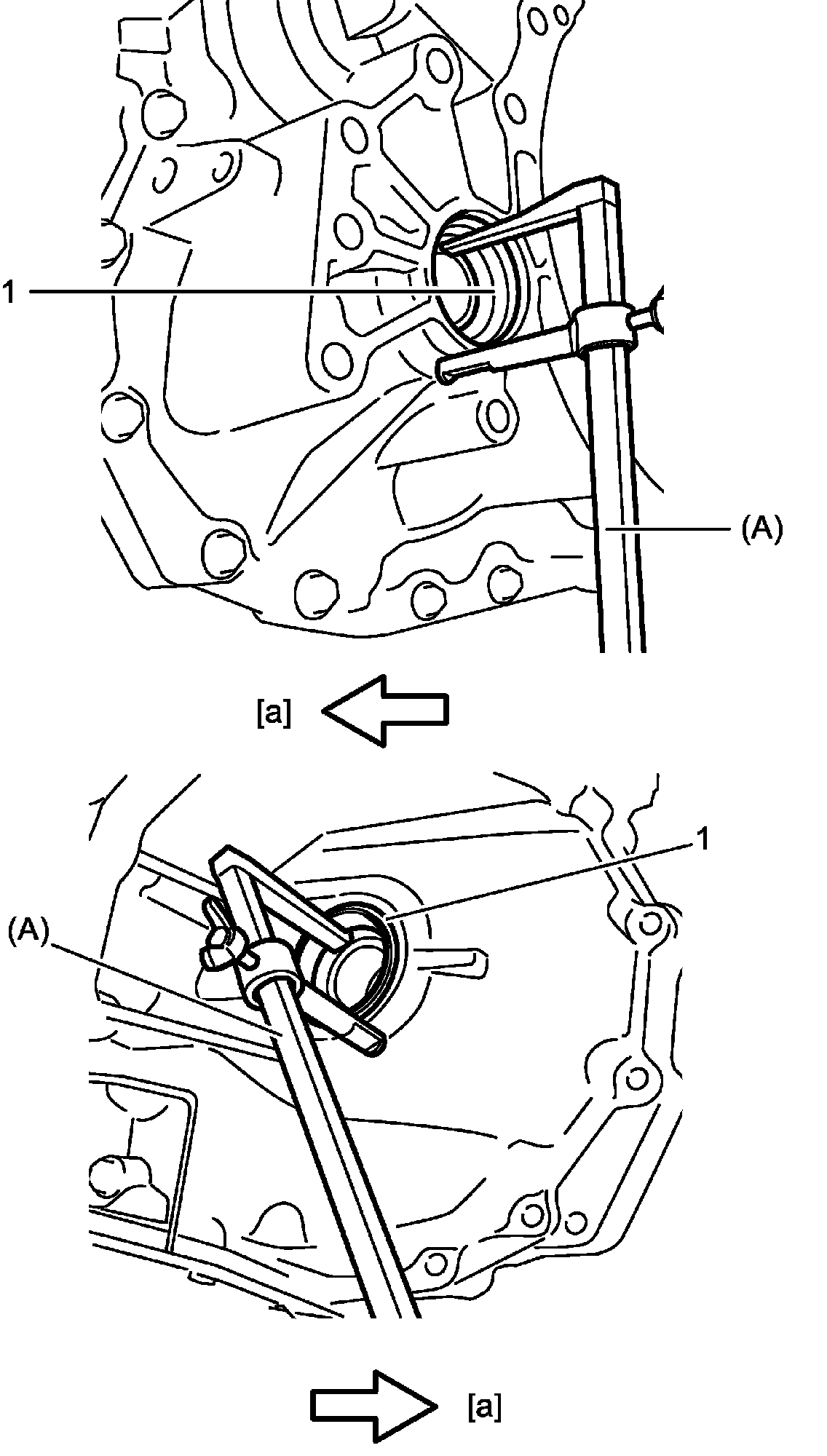

3) Remove differential side oil seal (1) using special tool.

Special Tool
(A): 09913-50121

CAUTION:
When removing oil seal, be careful not to scratch the oil seal press-fit part of transaxle housing. Otherwise, CVT fluid may cause leak.








4) Apply grease to new differential side oil seal lip.

: Grease 99000-25030 (SUZUKI Super Grease C)

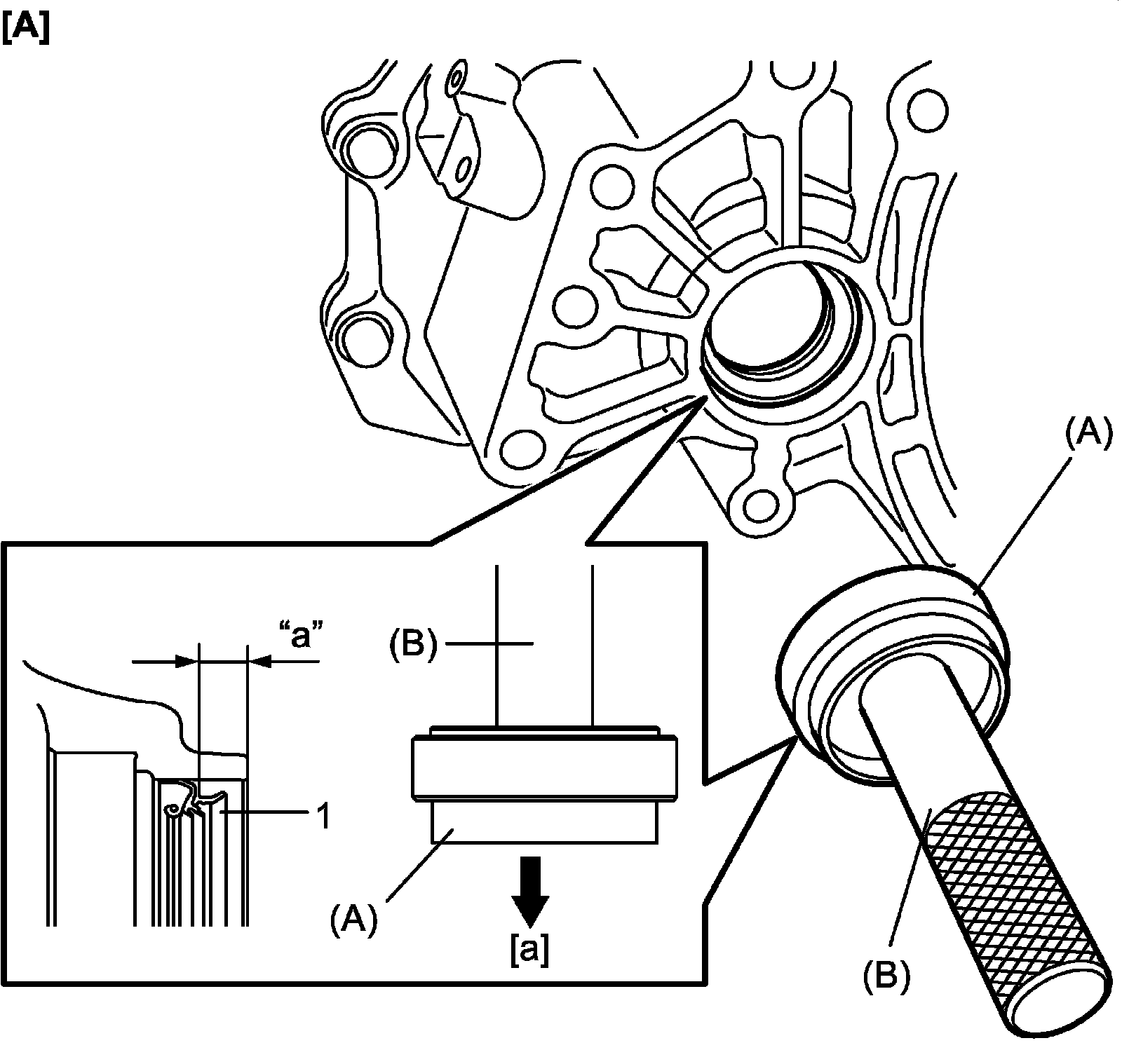

5) Using special tool, drive in new differential side oil seals (1) at specified position as shown in figure.

Special Tool
(A): 09925-17910
(B): 09924-74510

Differential side oil seal installing depth
Right side "a": 9.2 - 10.2 mm (0.363 - 0.401 in.) (2WD model)
Left side "b": 1.3 - 2.3 mm (0.052 - 0.090 in.)











6) Install drive shaft.
7) Replenish CVT fluid.
8) Check CVT fluid level.
