Fluid Line/Hose: Service and Repair

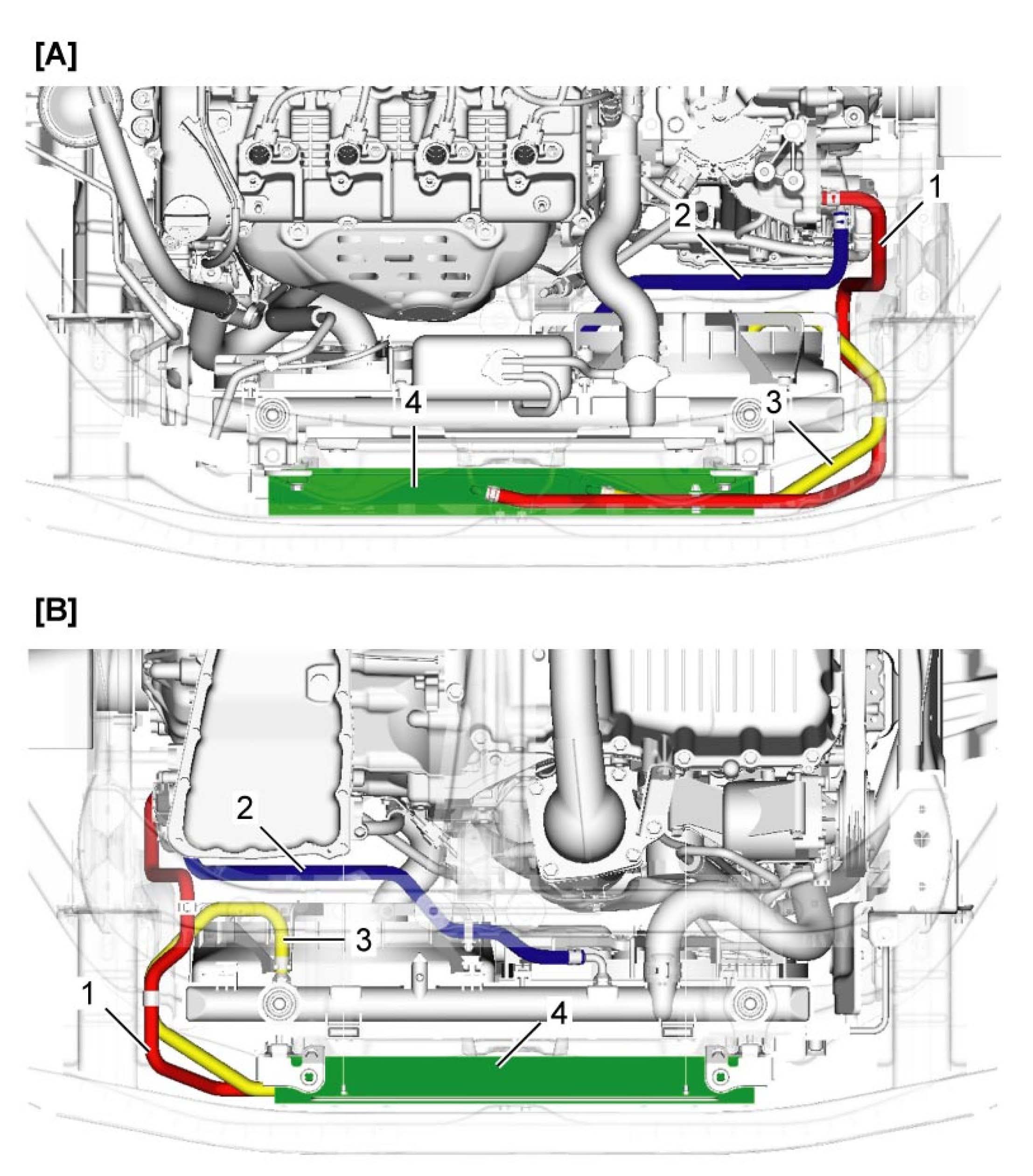

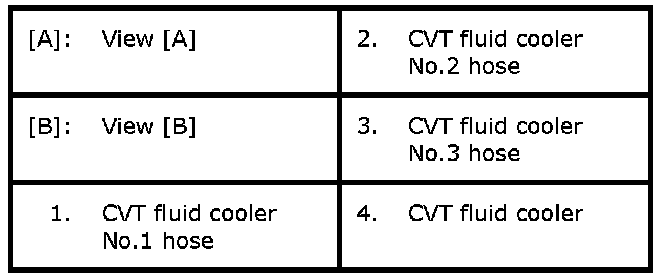

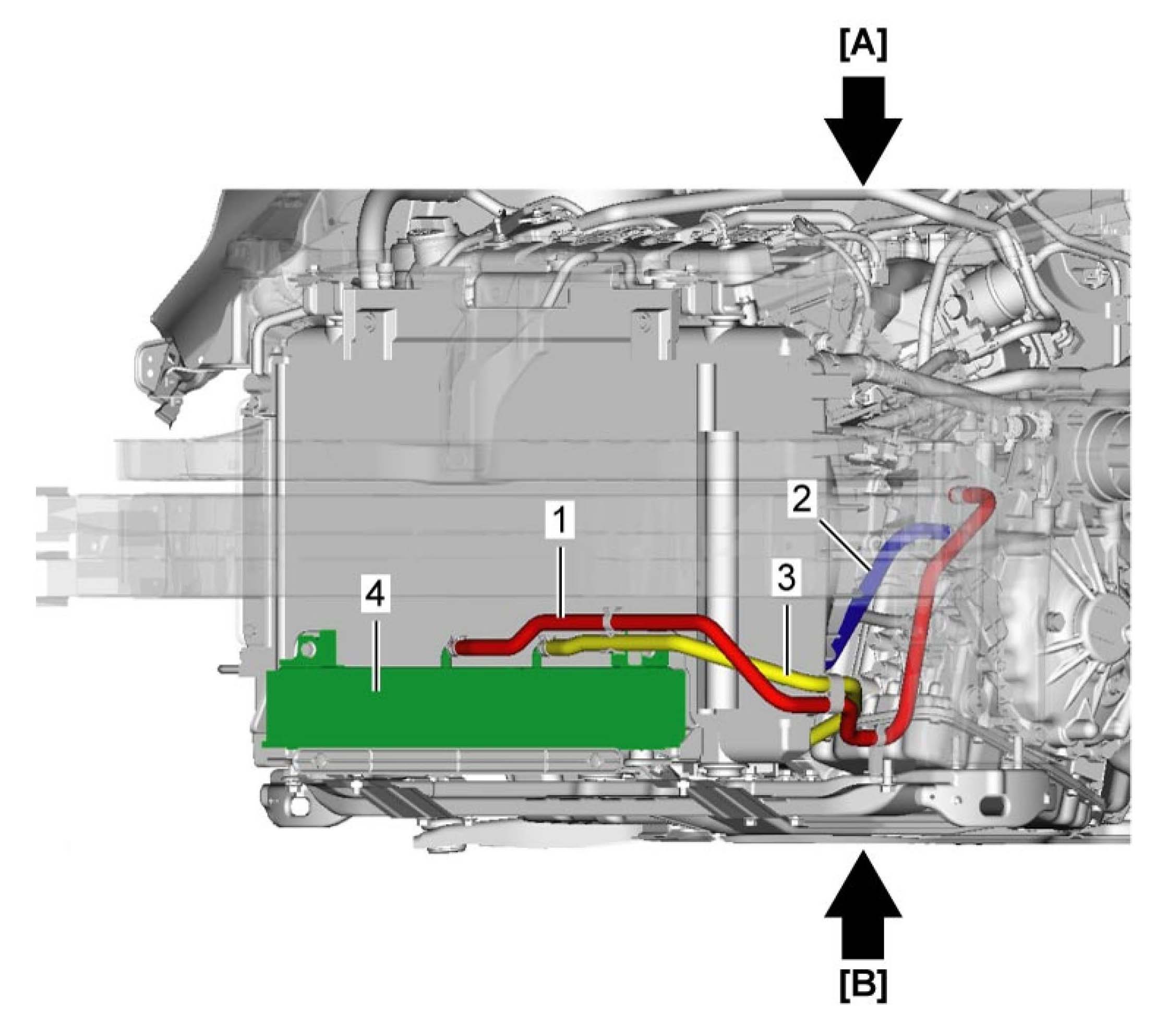

CVT Fluid Cooler Hoses Replacement
Rubber hoses for CVT fluid cooler should be checked at specified interval. If replacing them, be sure to note the following.
^ Remove front bumper, if necessary.
^ Replace clamps at same time
^ Clamp clamps securely
