Oil Pan, Engine

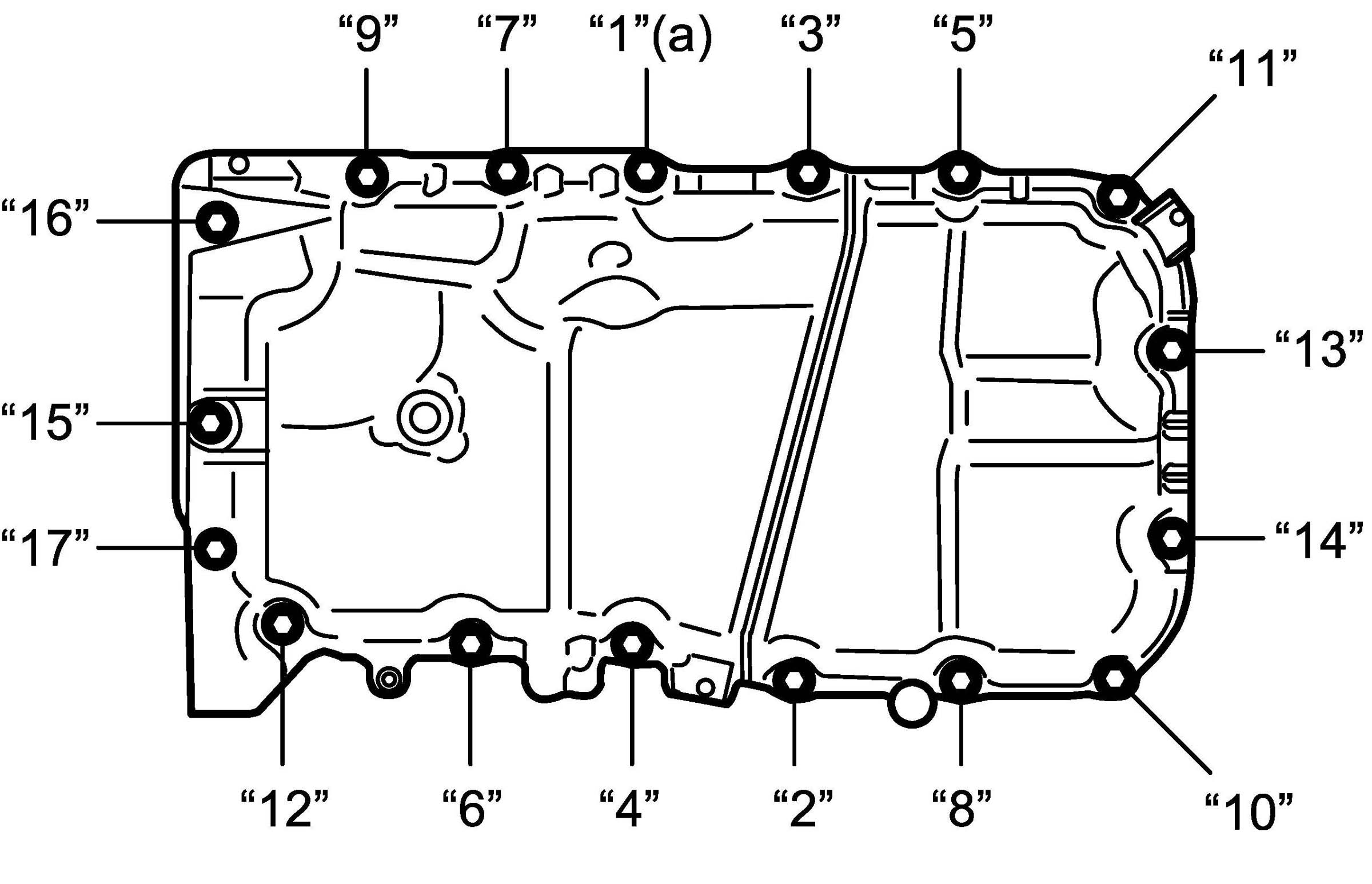

Oil pan
Tighten
15 Nm (1.5 kgf-m, 11.0 lbf-ft)
Retighten
25 Nm (2.5 kgf-m, 18.5 lbf-ft)
