Hazard Warning Switch: Service and Repair
Hazard Warning Switch Removal and InstallationRemoval
1. Disconnect negative (-) cable at battery.
2. Remove center ventilation louver with garnish (1) referring to Center Ventilation Louver Removal and Installation.

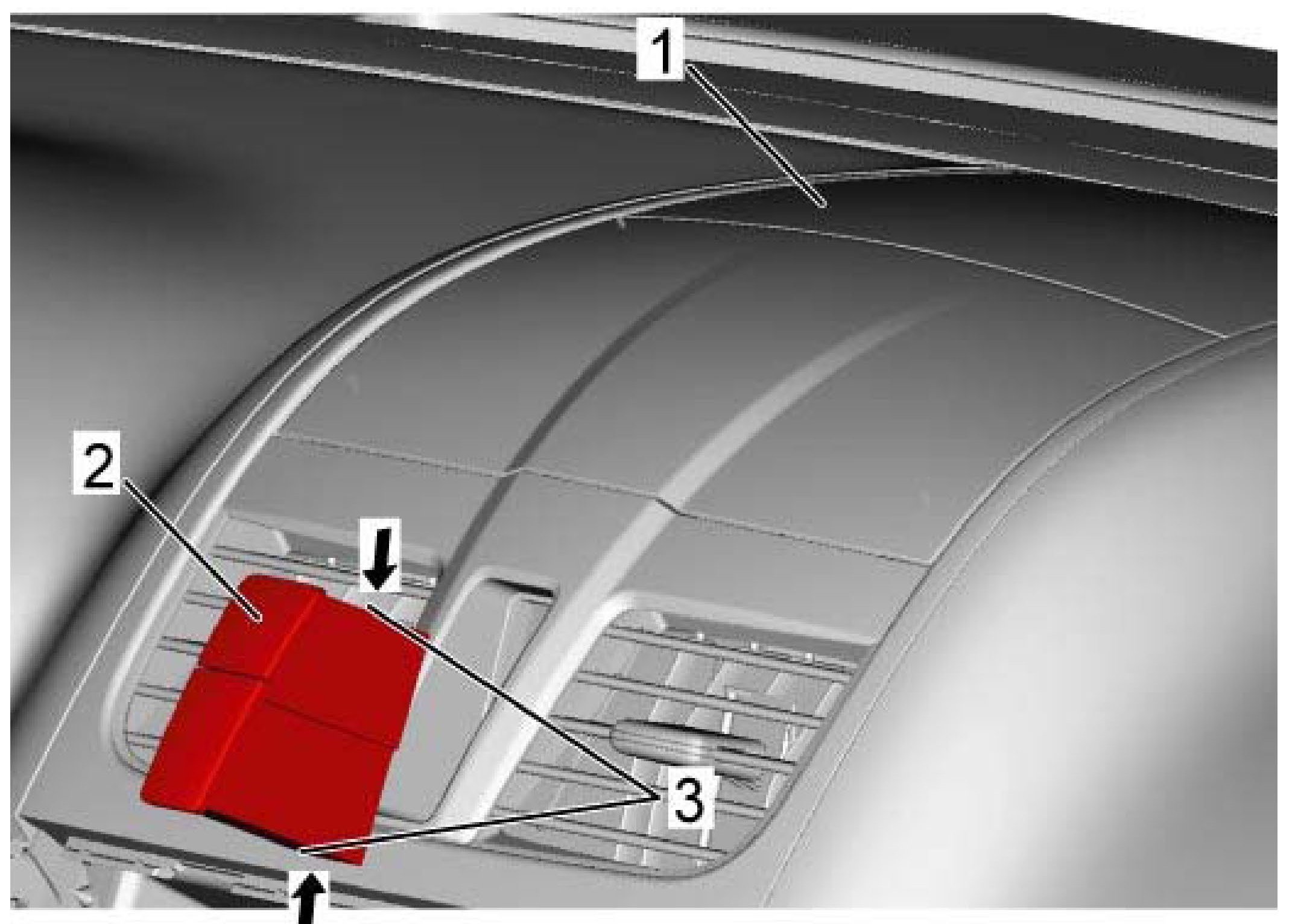

3. Disconnect coupler, and then remove hazard warning switch (2) from center ventilation louver with garnish (1) while releasing the locks (3).
Installation
Reverse removal procedure for installation.
