SDM Power Supply and Ground Circuit Check
>>
Except Advanced Air Bag
Except Advanced Air Bag
SDM Power Supply and Ground Circuit Check

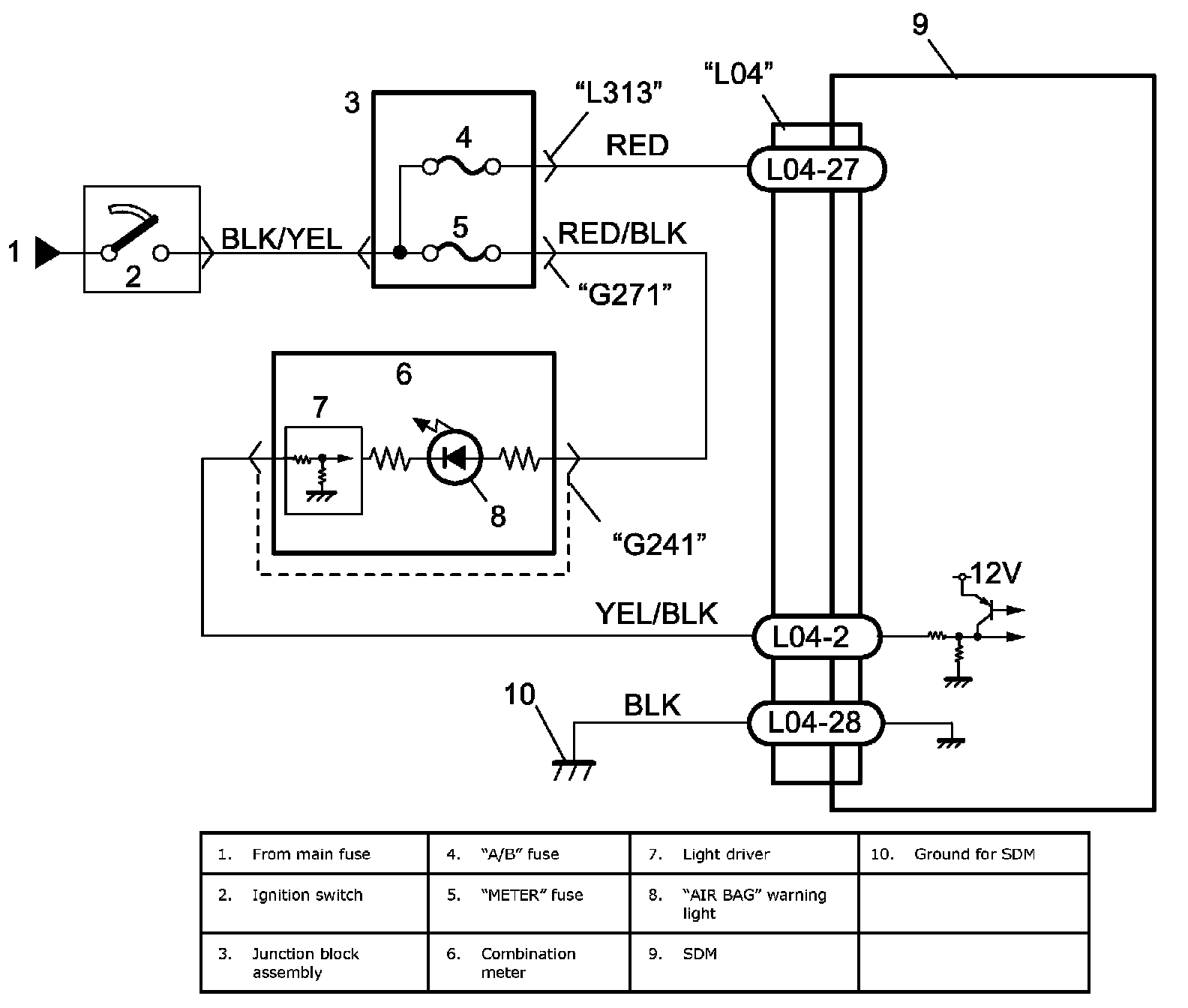

Wiring Diagram
Wiring Diagram:

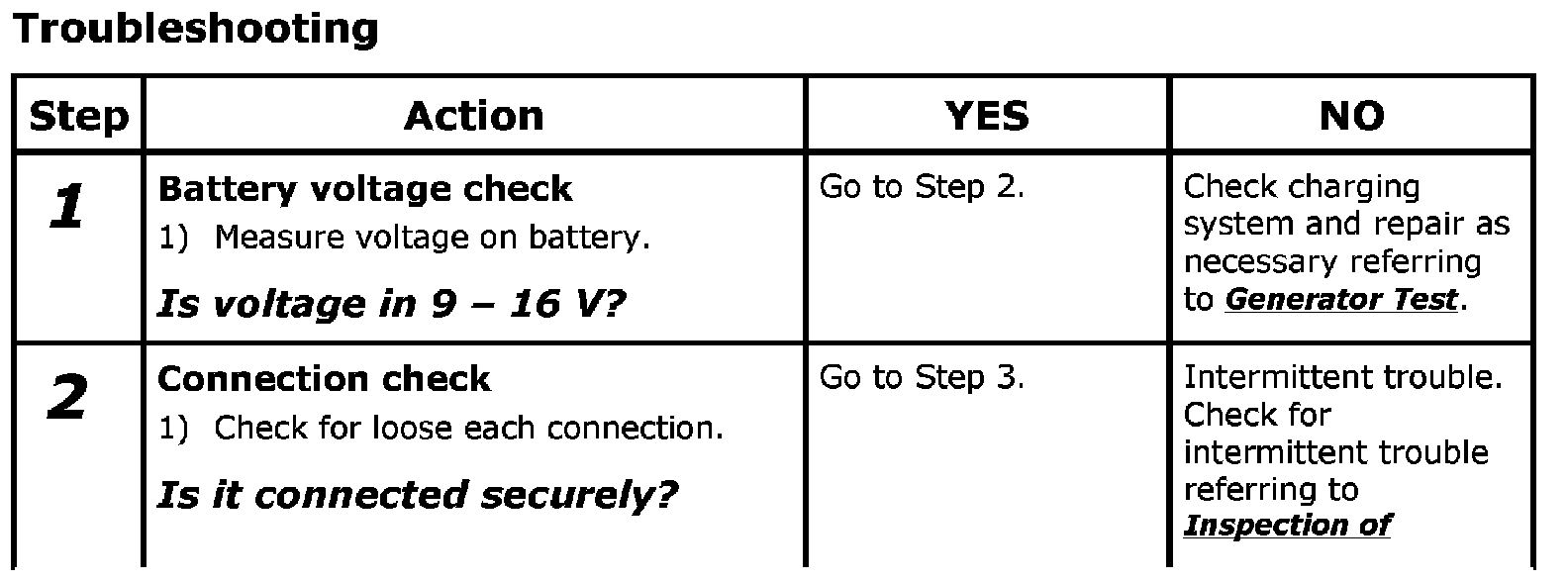

Troubleshooting
Step 1-2:

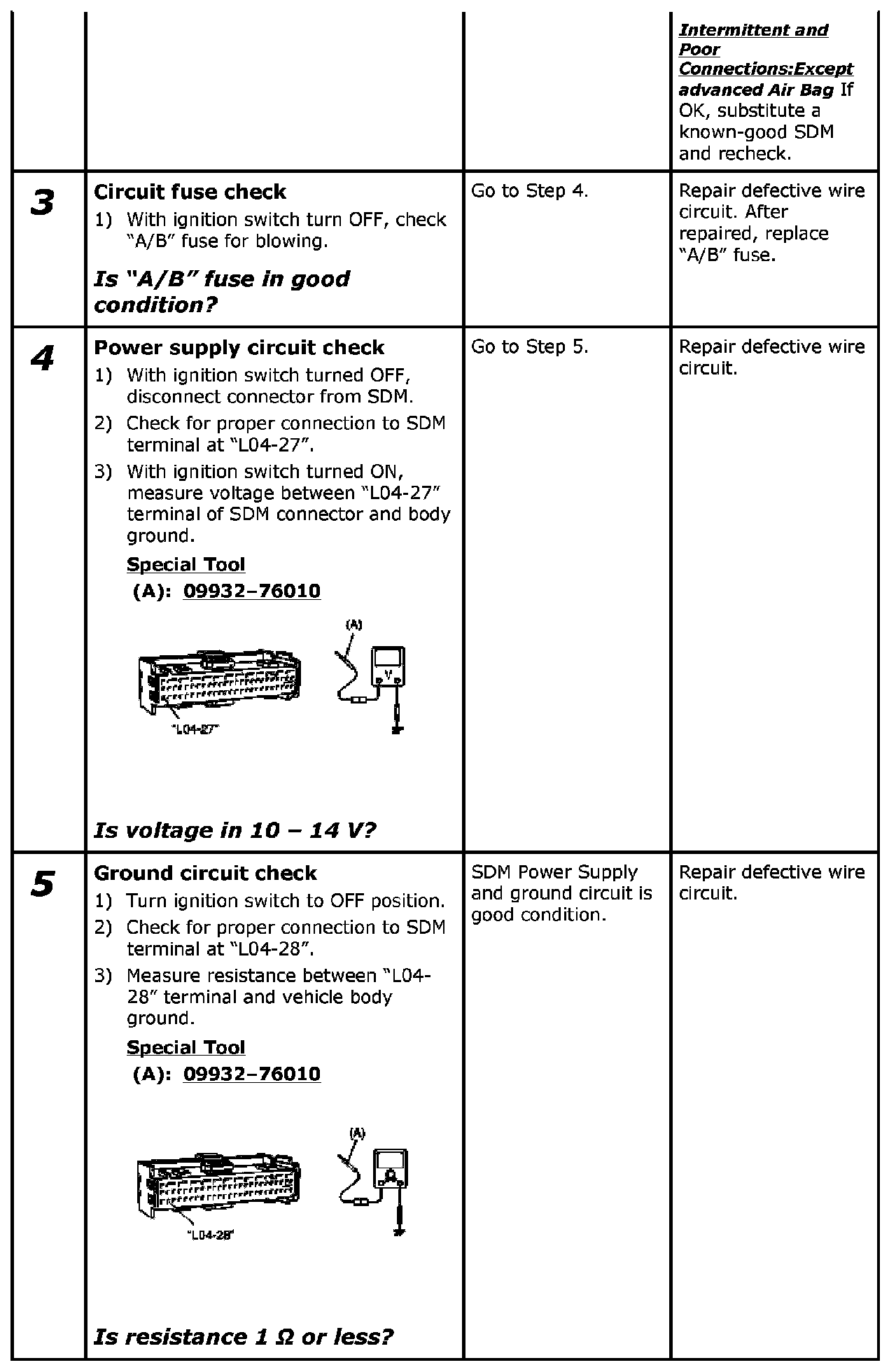

Step 2 (Continued)-5:
