OCM Power Supply and Ground Circuit Check
OCM Power Supply and Ground Circuit Check
OCM Power Supply and Ground Circuit Check

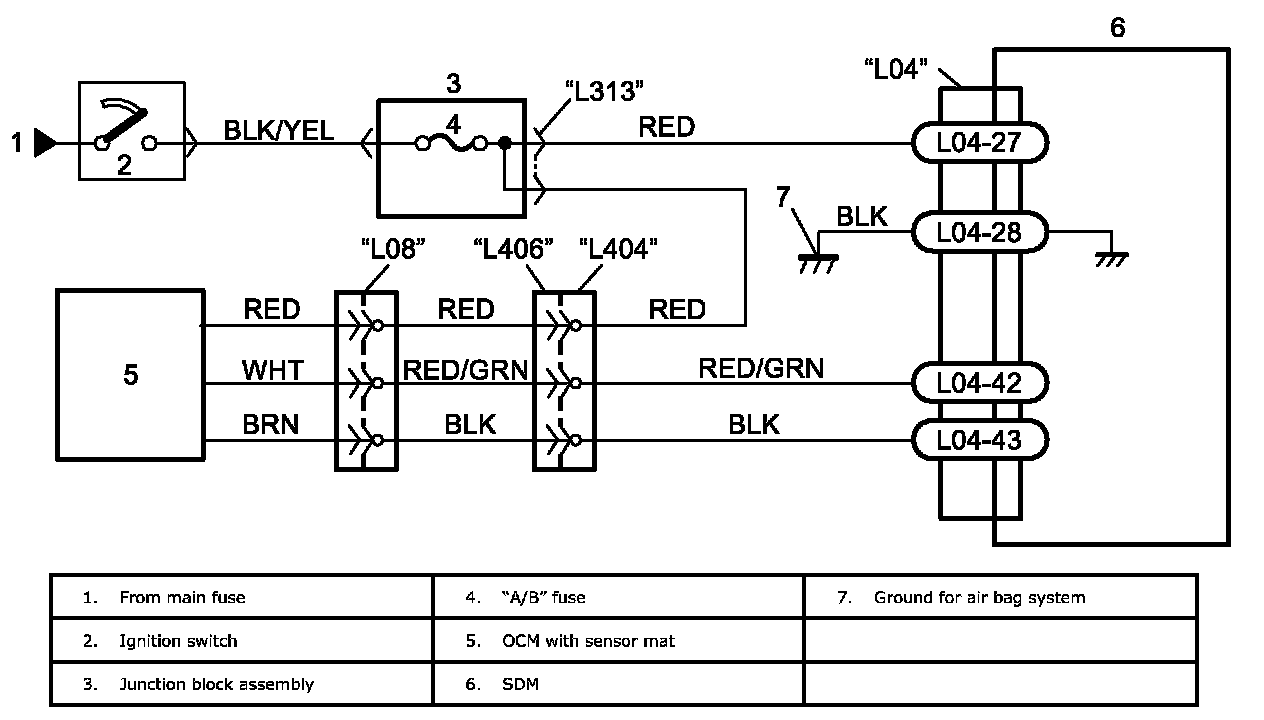

Wiring Diagram
Wiring Diagram:

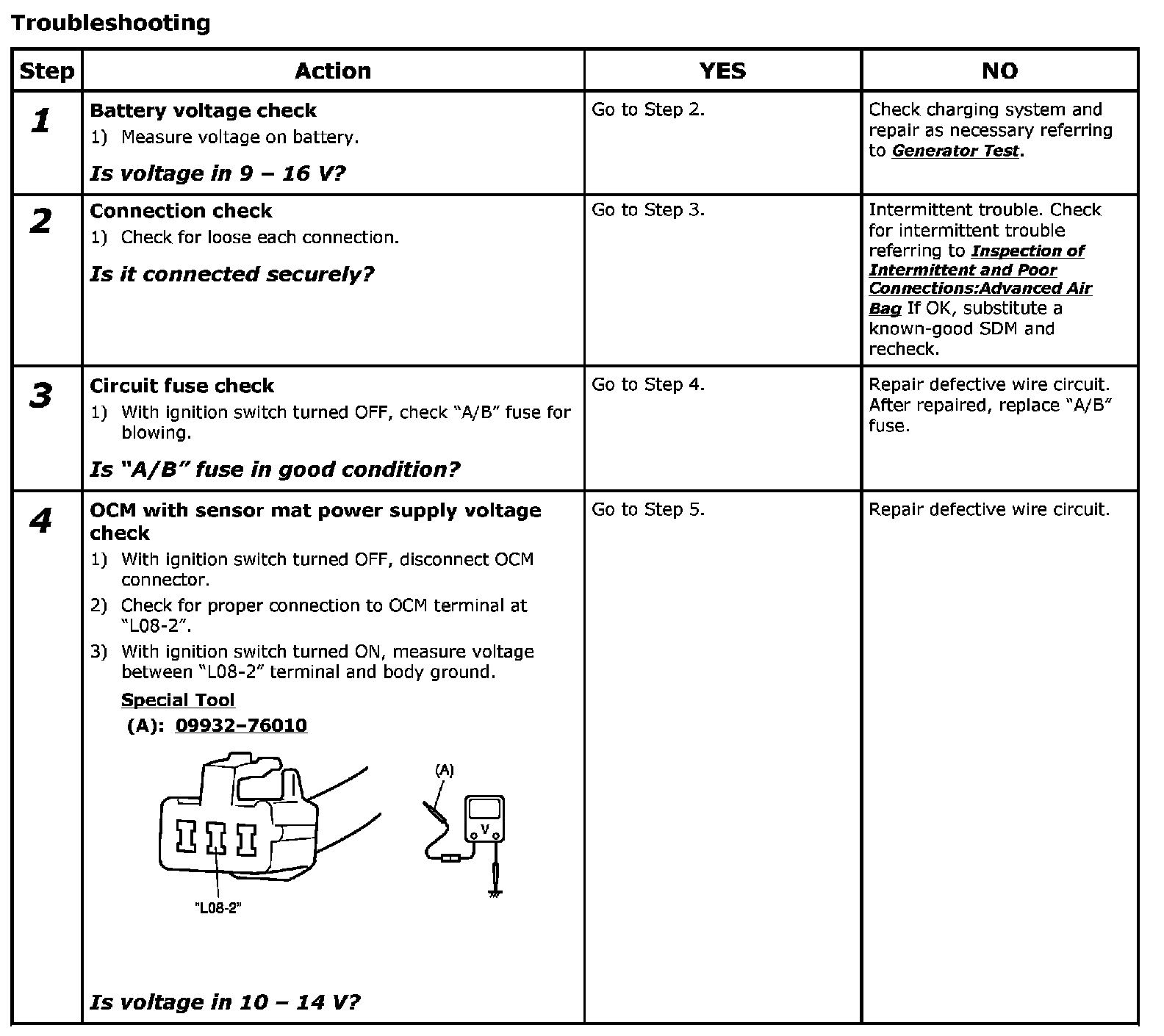

Step 1-4:

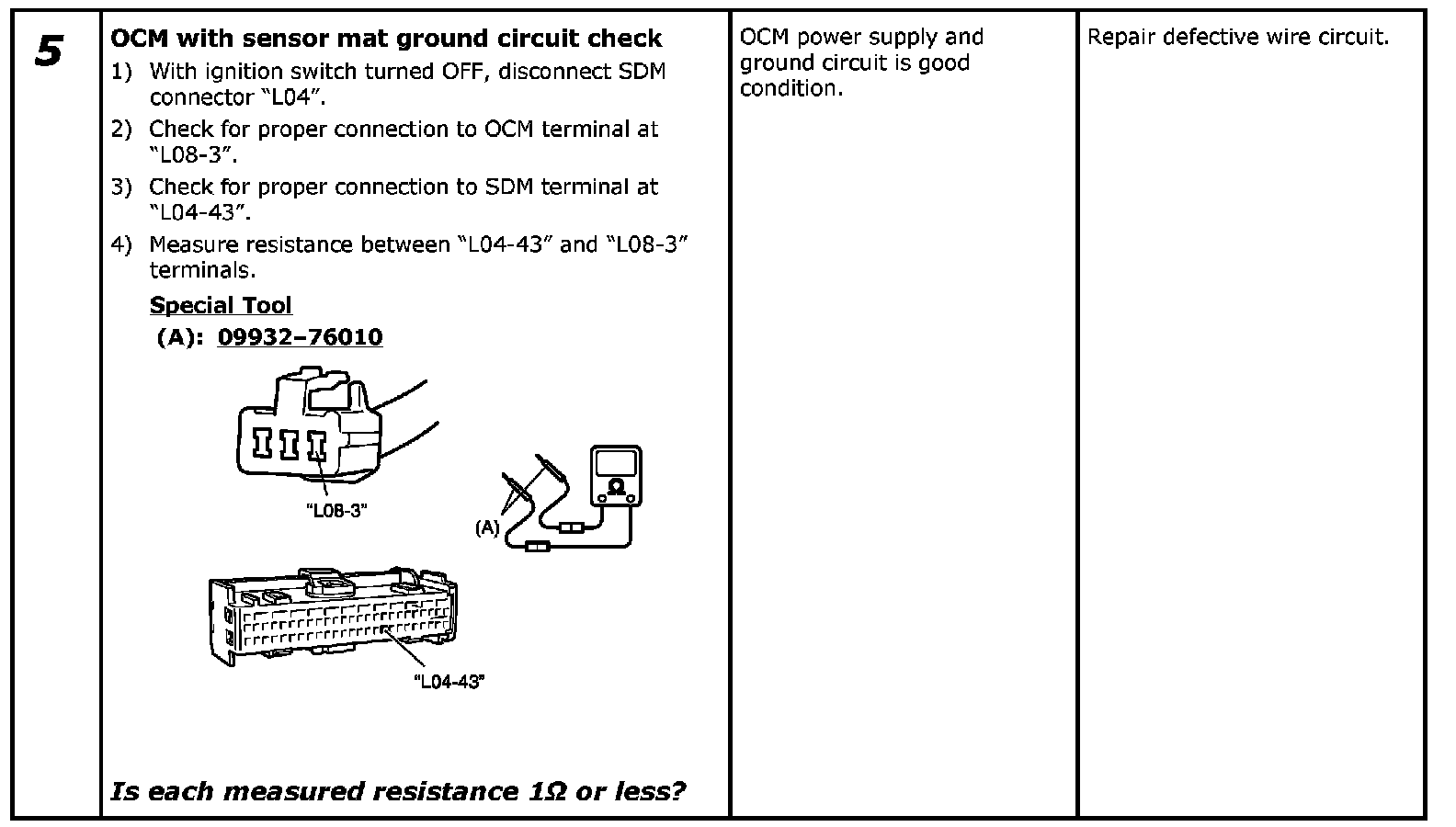

Step 5:
