Contact Coil Cable Assembly Removal and Installation

Contact Coil Cable Assembly Removal and Installation
Reference: Steering Wheel and Column Components

CAUTION:
Do not turn contact coil more than allowable number of turns (about two and a half turns from the center position clockwise or counterclockwise respectively), or coil will break.

Removal
1) Disconnect negative (-) cable at battery.
2) Remove steering wheel from steering column.
3) Remove steering column hole cover.
4) Remove steering column lower cover (2) and upper cover (1).





5) Remove contact coil cable assembly (1) with steering angle sensor (2) (ESP model) from steering column.





6) For ESP model, remove steering angle sensor from contact coil cable assembly.

Installation
Reference: Contact Coil Cable Assembly Inspection
Reference: Centering Contact Coil Cable Assembly
1) Check to make sure that vehicles front tires are set at straight-ahead position and then ignition switch is at LOCK position.
2) For ESP model, install steering angle sensor to contact coil cable assembly.
3) Install contact coil cable assembly with steering angle sensor (ESP model) to steering column securely.

NOTE:

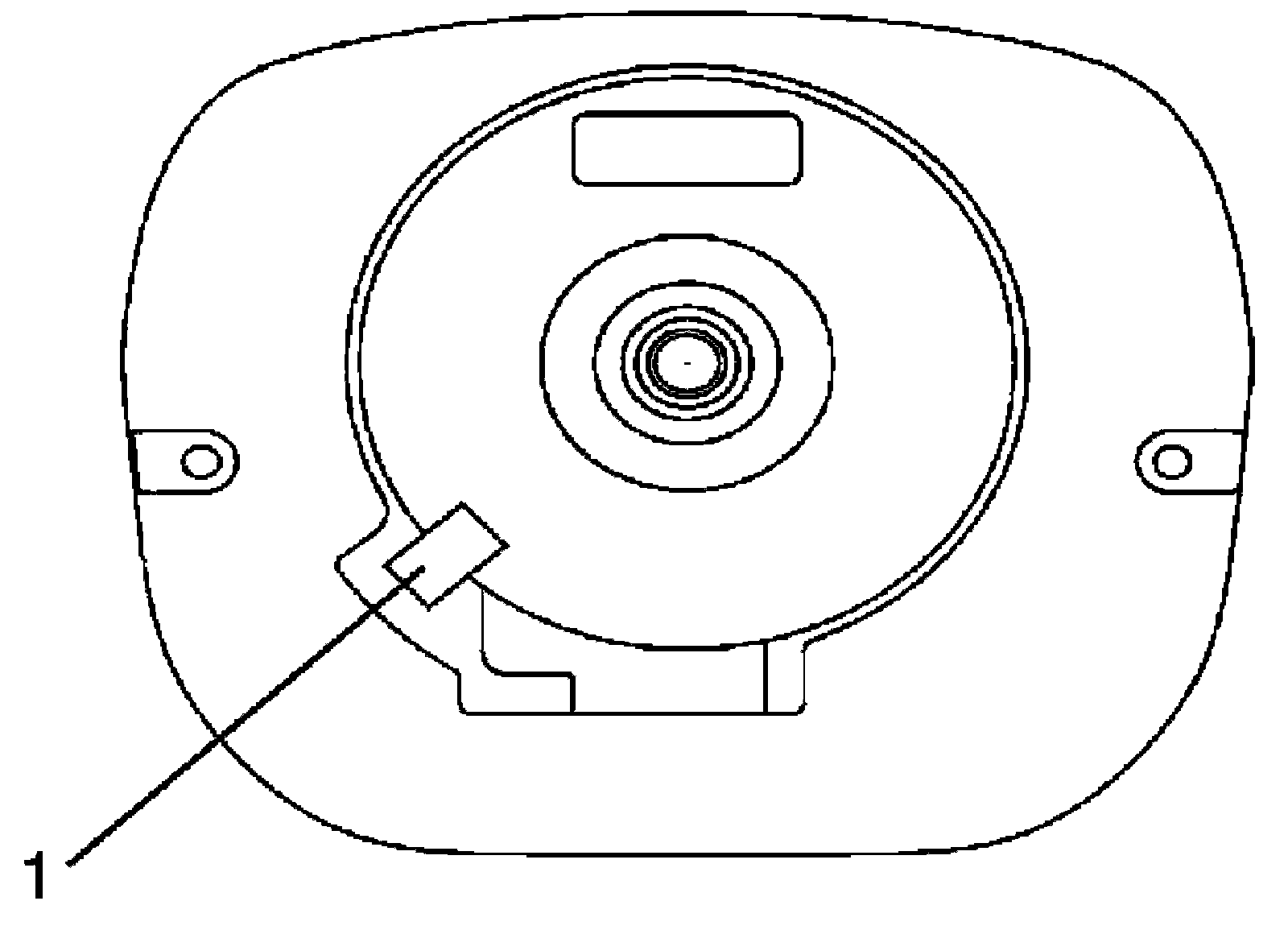

New contact coil cable assembly is supplied with contact coil set and held at its center position with a lock pin (1). Remove this lock pin after installing contact coil cable assembly to steering column.





4) Install steering column upper cover (1) and lower cover (2).

CAUTION:
When installing covers, be careful so that each lead wire is not caught between covers.
Otherwise, each lead wire is damaged.








5) Install steering wheel to steering column.
6) Connect negative (-) cable to battery.
