Ignition Coil Assembly Removal and Installation
Ignition Coil Assembly Removal and InstallationRemoval
1. Disconnect negative (-) cable from battery.
2. Remove engine cover.

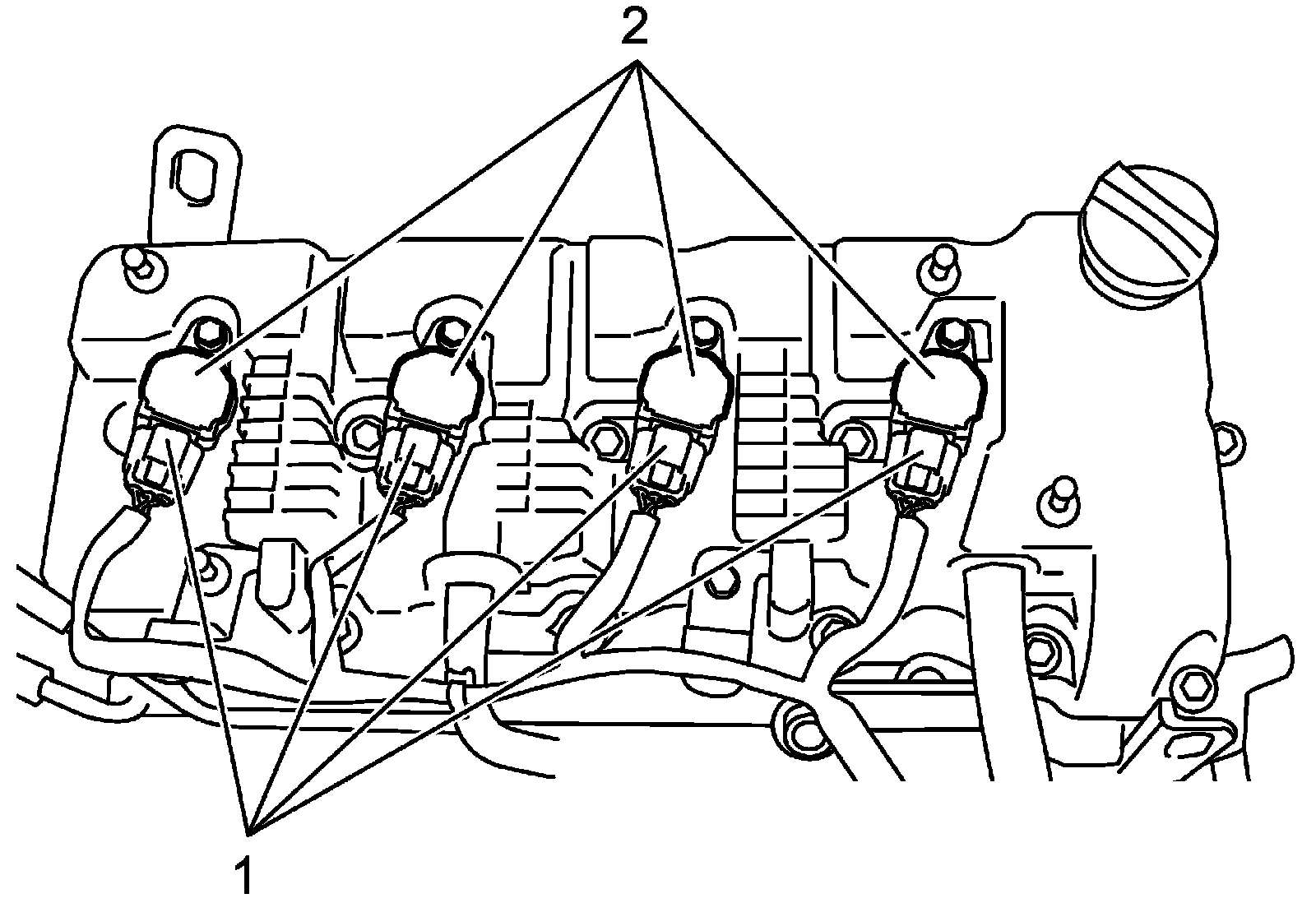

3. Disconnect ignition coil connectors (1).
4. Remove ignition coil assembly (2).
Installation
Reverse removal procedure noting the following.
- Tighten ignition coil bolts to specified torque.
Tightening torque
Ignition coil bolt (a): 11 N.m (1.1 kg-m, 8.5 lbf-ft)
