Engine and Emission Control Input / Output Table

Engine and Emission Control Input / Output Table

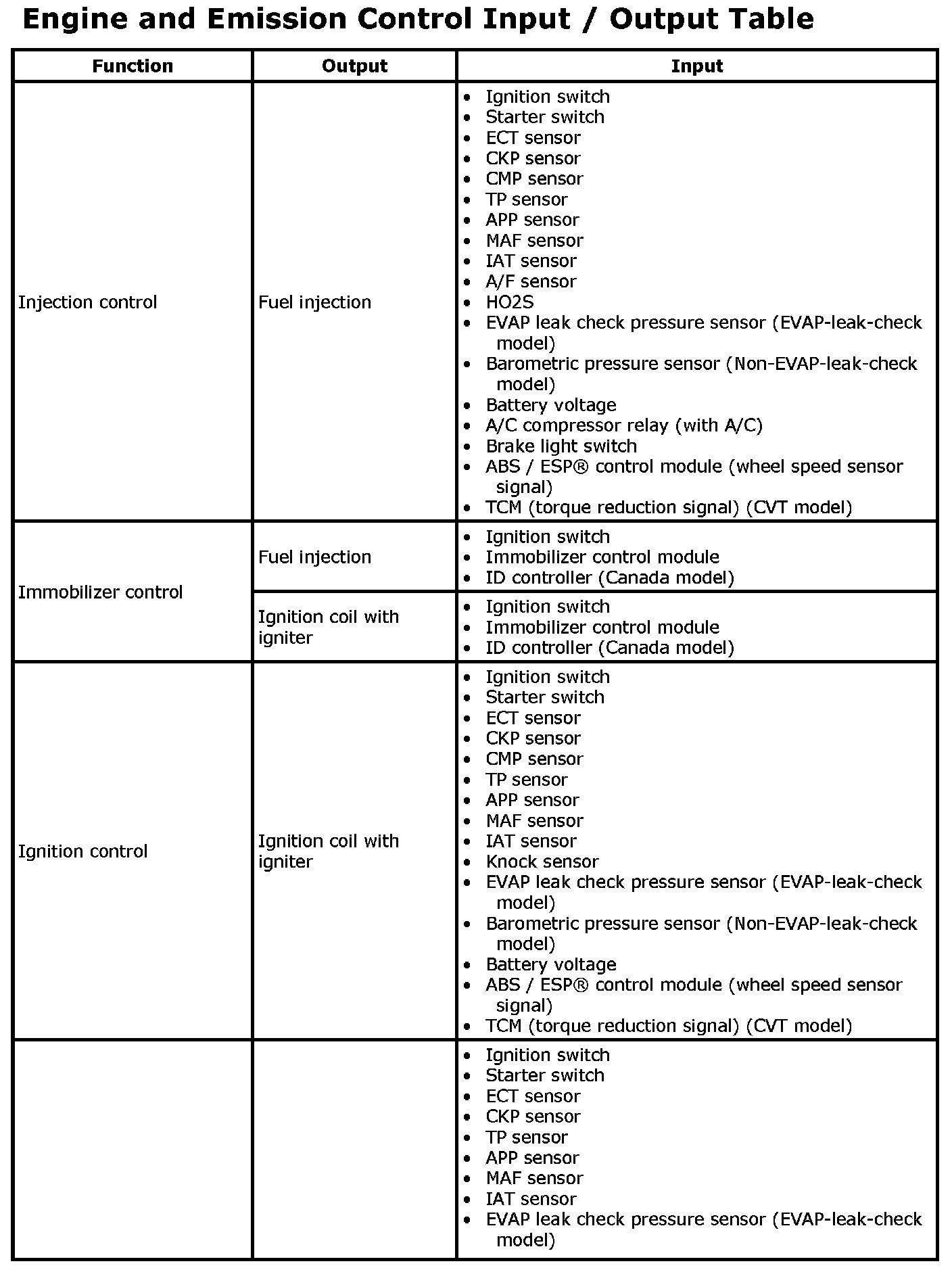

Engine and Emission Control Input / Output Table (Part 1):

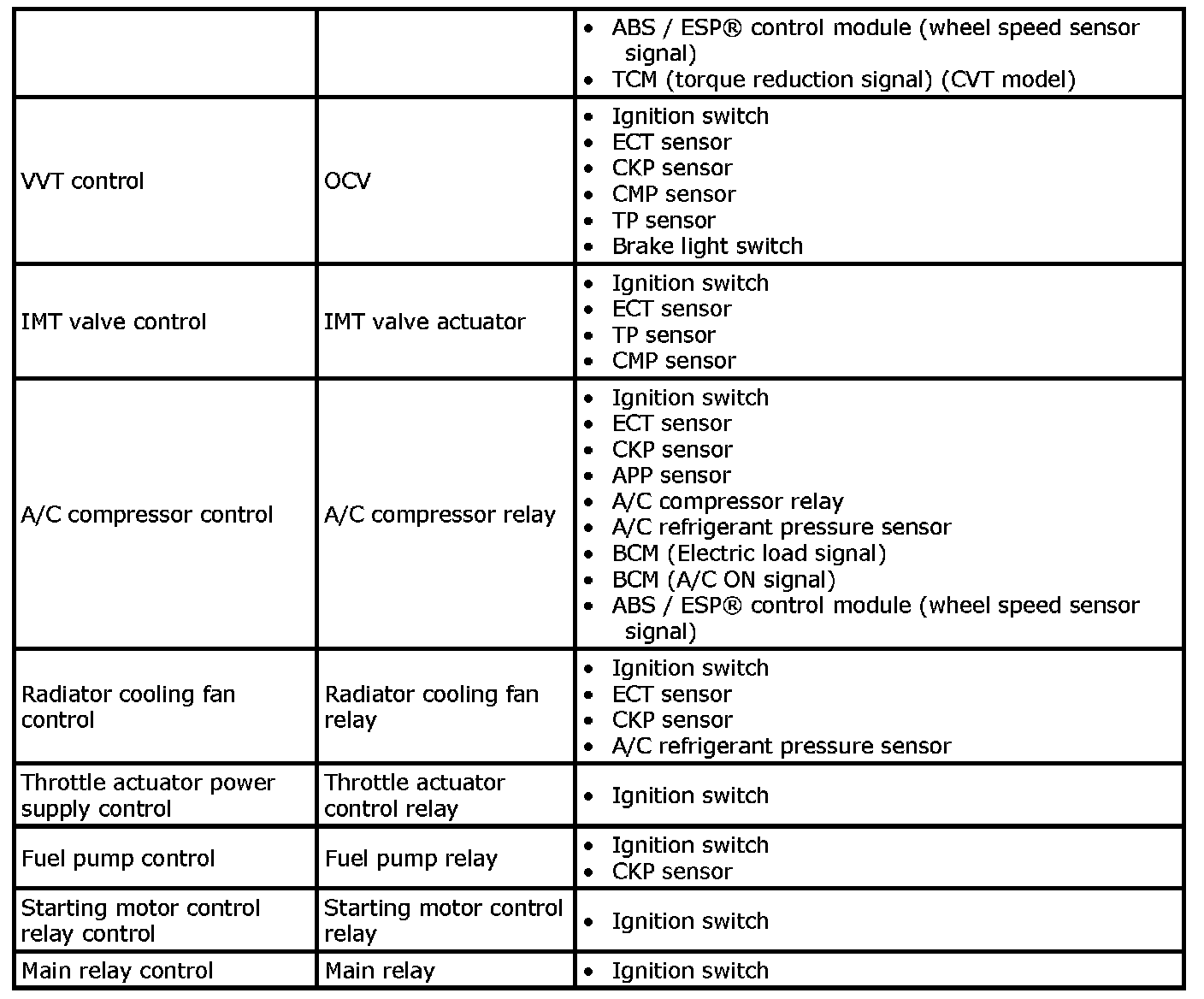

Engine and Emission Control Input / Output Table (Part 2):

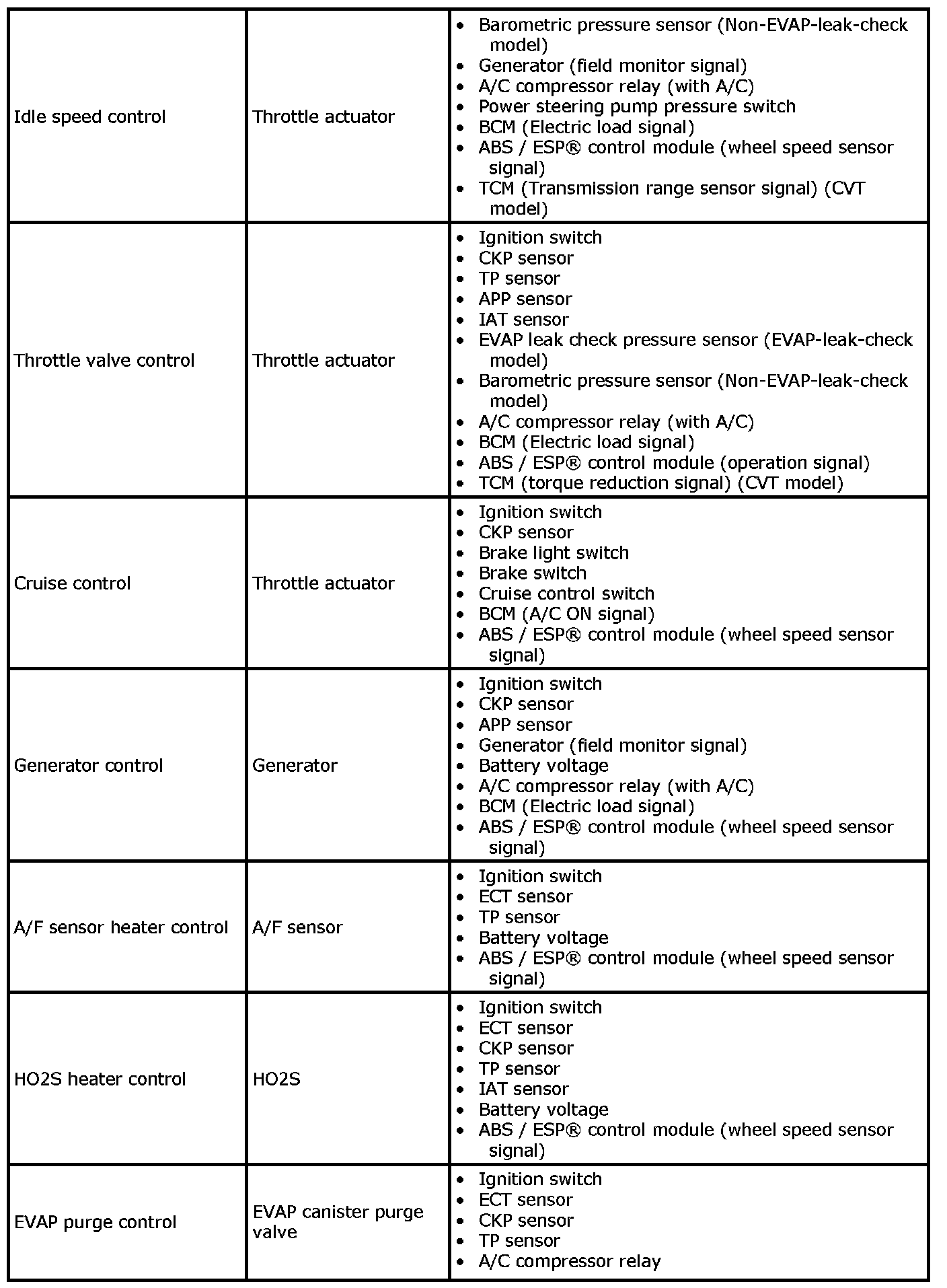

Engine and Emission Control Input / Output Table (Part 3):
