Around Strut

Around Strut

Right Side

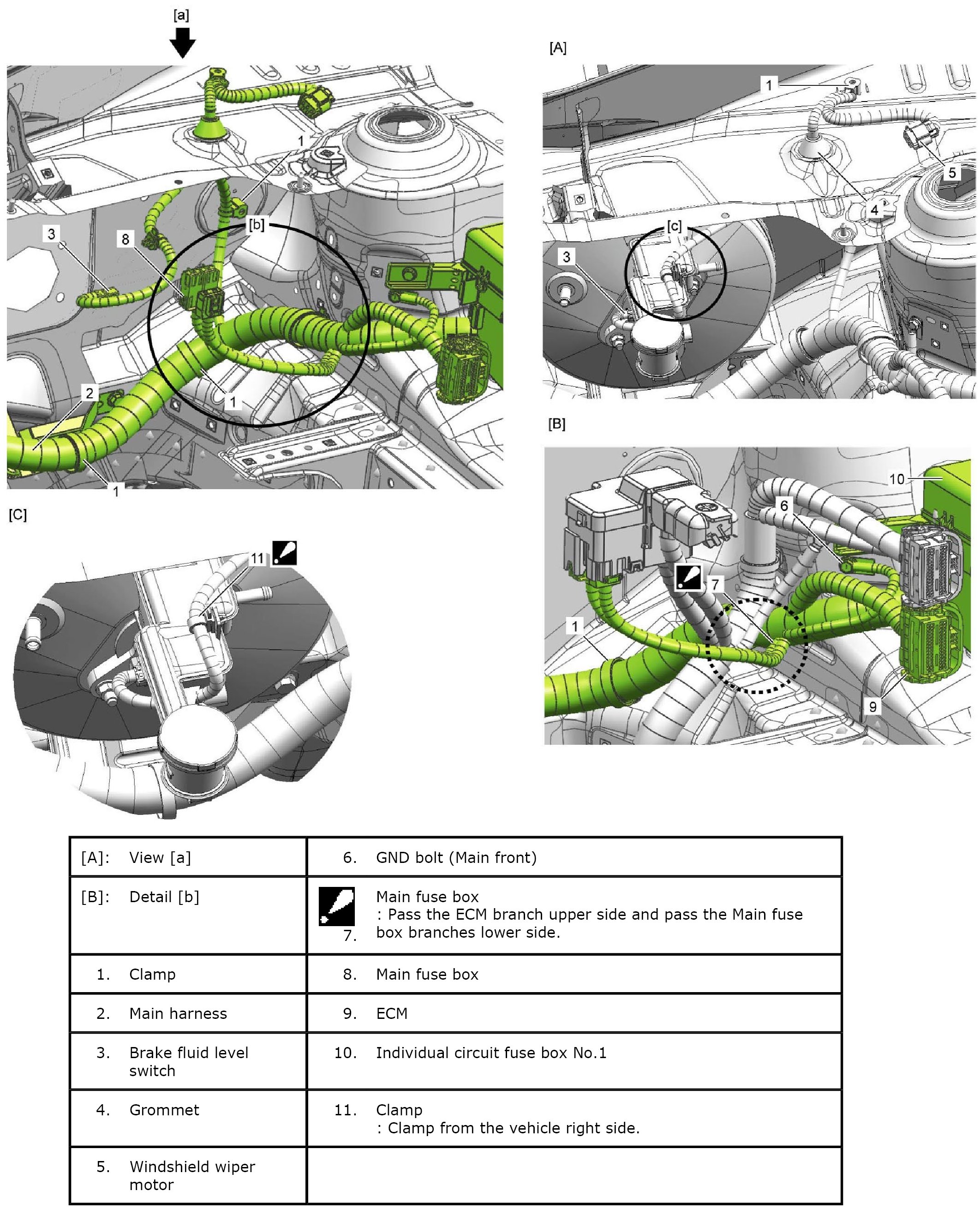

Around Strut - Right Side:






Left Side

Around Strut - Left Side:
